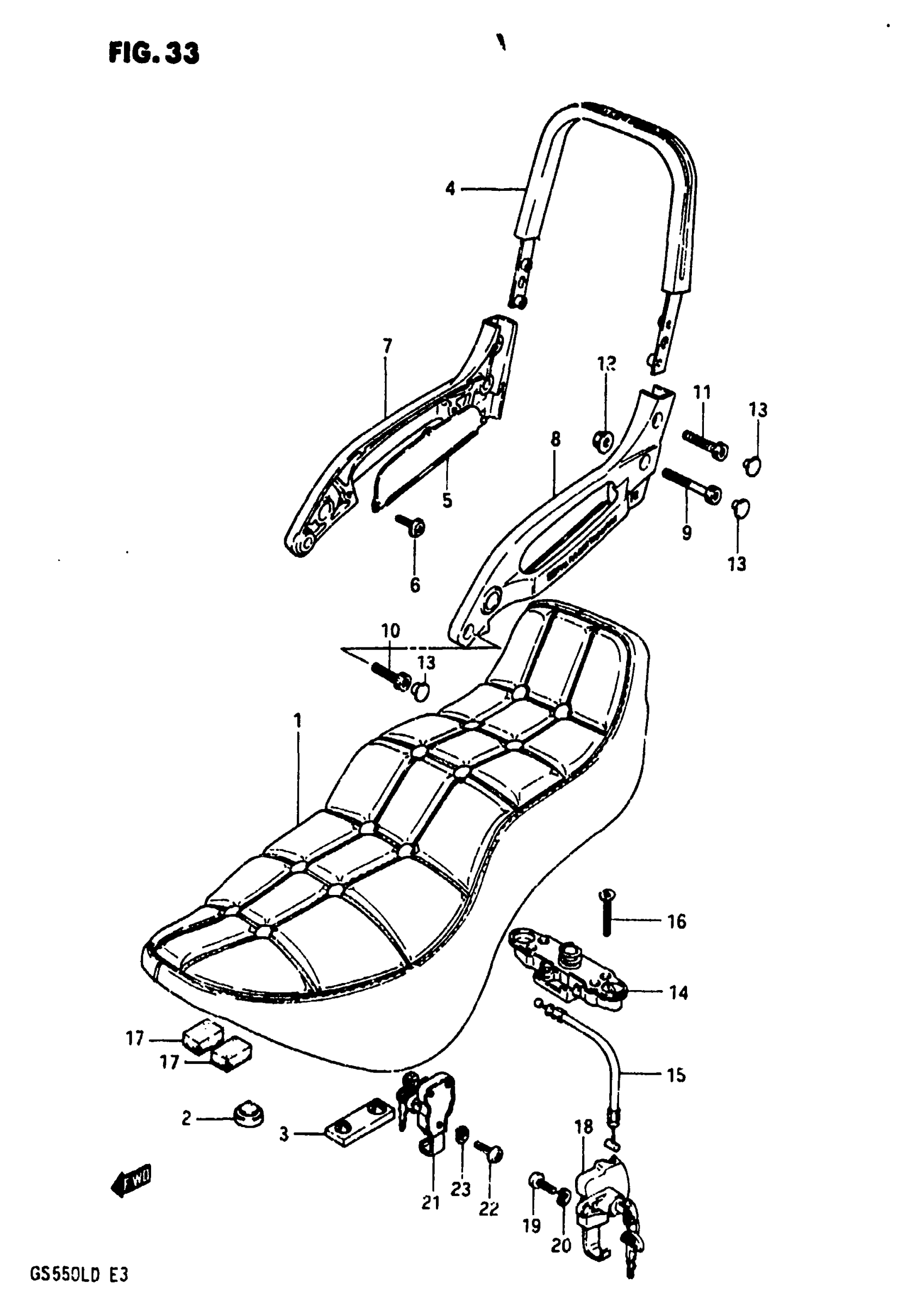

Suzuki GS550L (1983) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 45100-43500-48H.

45100-43531-59N

Unavailable

2

CUSHION

09321-10012

$2.92

3

CUSHION, REAR

45149-43500

$6.85

4

HANDLE, PILLION RIDER This part replaces 46210-43500.

46210-43501

Unavailable

5

PLATE, PILLION RIDER HANDLE

46241-43500

Unavailable

6

SCREW This part replaces 02152-05068.

02112-0506B

$1.84

7

BRACKET, RH This part replaces 46240-43500.

46240-43501

Unavailable

8

BRACKET, LH This part replaces 46250-43500.

46250-43501

Unavailable

9

BOLT This part replaces 09106-08021.

07130-08407

$3.14

10

BOLT, BRACKET This part replaces 09106-08017.

07130-08207

$4.32

11

BOLT This part replaces 09106-08034.

07130-08257

$3.43

12

NUT This part replaces 08319-31088.

08319-3108A

$2.32

13

CAP This part replaces 09250-06008.

09250-06016

$1.96

14

LOCK ASSY, SEAT STRIKER This part replaces 45220-13600.

45220-13601

$80.52

15

CABLE, SEAT LOCK This part replaces 45280-43500.

45280-43510

Unavailable

16

SCREW This part replaces 02122-06305.

02122-0630B

$2.06

17

HOLDER, BATTERY STOP

45255-02100

Unavailable

18

LOCK SET, SEAT

95700-43500-KEY

Unavailable

19

SCREW This part replaces 02112-06108.

02112-06107

$1.49

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

LOCK SET, HELMET

95700-43510-KEY

Unavailable

22

SCREW This part replaces 02112-06108.

02112-06107

$1.49

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
