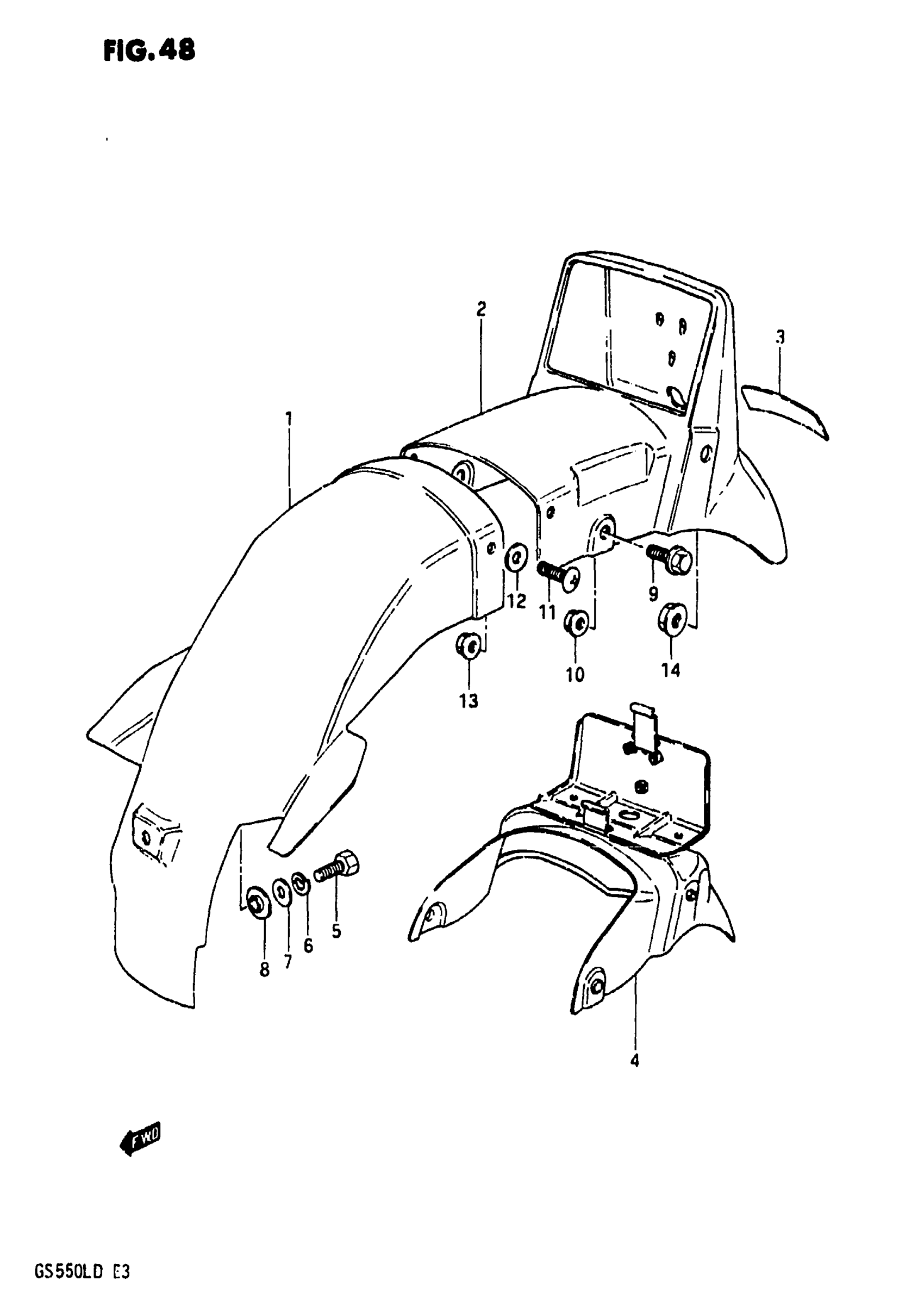

Suzuki GS550L (1983) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-43500

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63113-43500-17U.

63113-43510-13L

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63113-43500-17T.

63113-43510-13L

Unavailable

3

EMBLEM

68177-43500-94L

Unavailable

4

REINFORCEMENT

63120-43500

Unavailable

5

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

8

WASHER

09169-06026

$2.20

9

BOLT This part replaces 01517-06168.

01550-06167

$2.30

10

NUT This part replaces 08319-31068.

08319-31067

$2.03

11

SCREW This part replaces 02142-06168.

02142-06167

$1.49

12

WASHER This part replaces 09160-06007.

09160-06084

$1.78

13

NUT This part replaces 08319-31068.

08319-31067

$2.03

14

NUT This part replaces 08319-31088.

08319-3108A

$2.32
