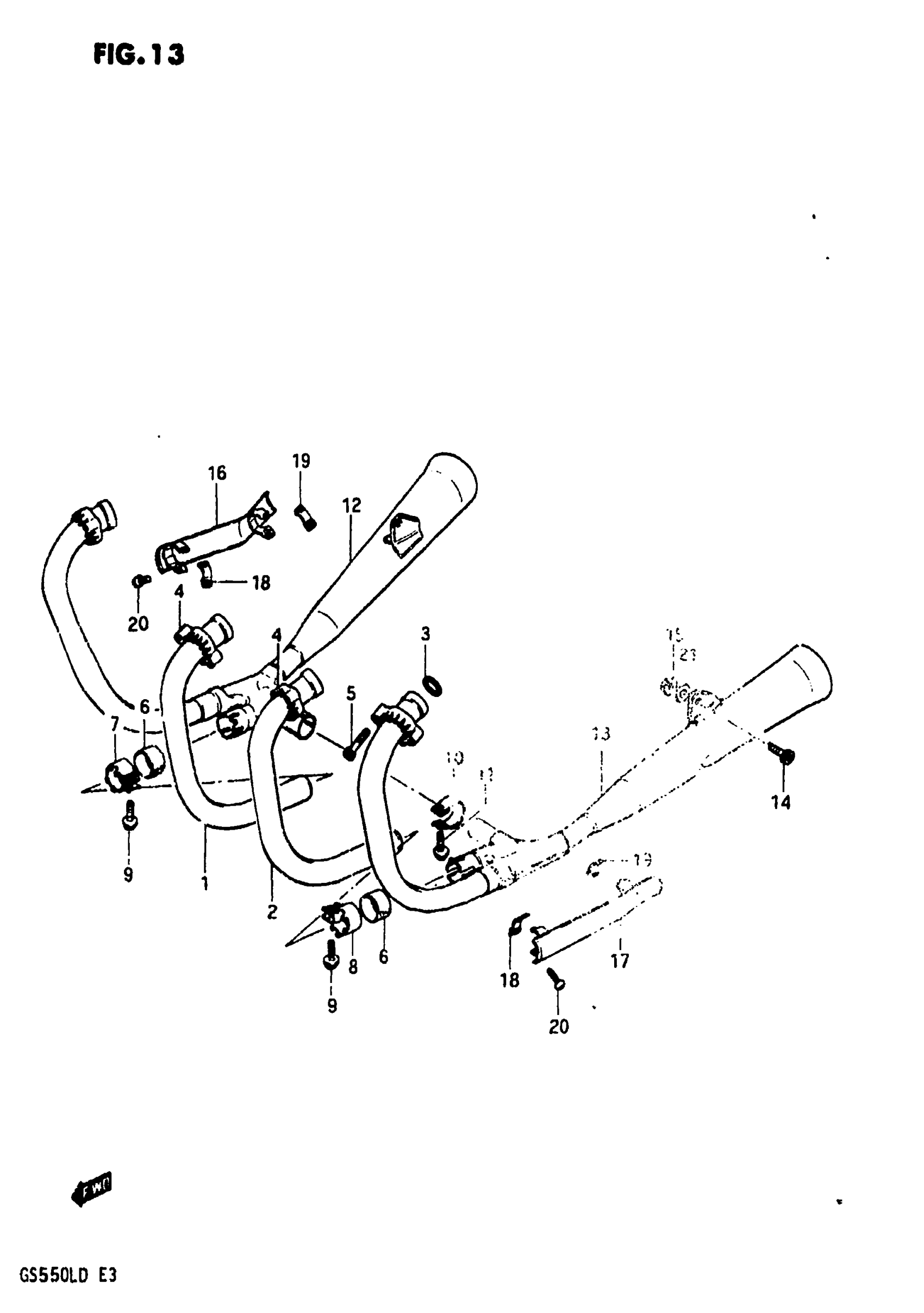

Suzuki GS550L (1983) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER RH

14170-43501

Unavailable

2

PIPE, EXHAUST CENTER LH

14180-43501

Unavailable

3

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

4

CLAMP

14182-11901

Unavailable

5

BOLT,8X38 This part replaces 09106-08035.

09106-08036-XC0

$2.92

6

CONNECTOR,MUFLR This part replaces 14771-47020.

14771-47020-H17

Unavailable

7

CLAMP, CONNECTOR RH

14459-34200

Unavailable

8

CLAMP, CONNECTOR LH

14469-34200

Unavailable

9

BOLT This part replaces 01517-08258.

01550-08257

$2.81

10

CLAMP

14772-15500

Unavailable

11

BOLT This part replaces 01517-06208.

01550-06207

$2.30

12

MUFFLER, RH This part replaces 14305-43531-H01.

14305-43532-H01

Unavailable

13

MUFFLER, LH This part replaces 14306-43531-H01.

14306-43532-H01

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 09106-10002.

07130-10457

Unavailable

15

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.03

16

COVER, MUFFLER RH

14780-43502

Unavailable

17

COVER, MUFFLER LH

14790-43502

Unavailable

18

CLAMP

14785-15500

Unavailable

19

CLAMP

14785-31310

Unavailable

20

SCREW This part replaces 02112-05168.

02112-05167

$1.97

21

WASHER This part replaces 08322-21108.

08322-01107

$2.15
