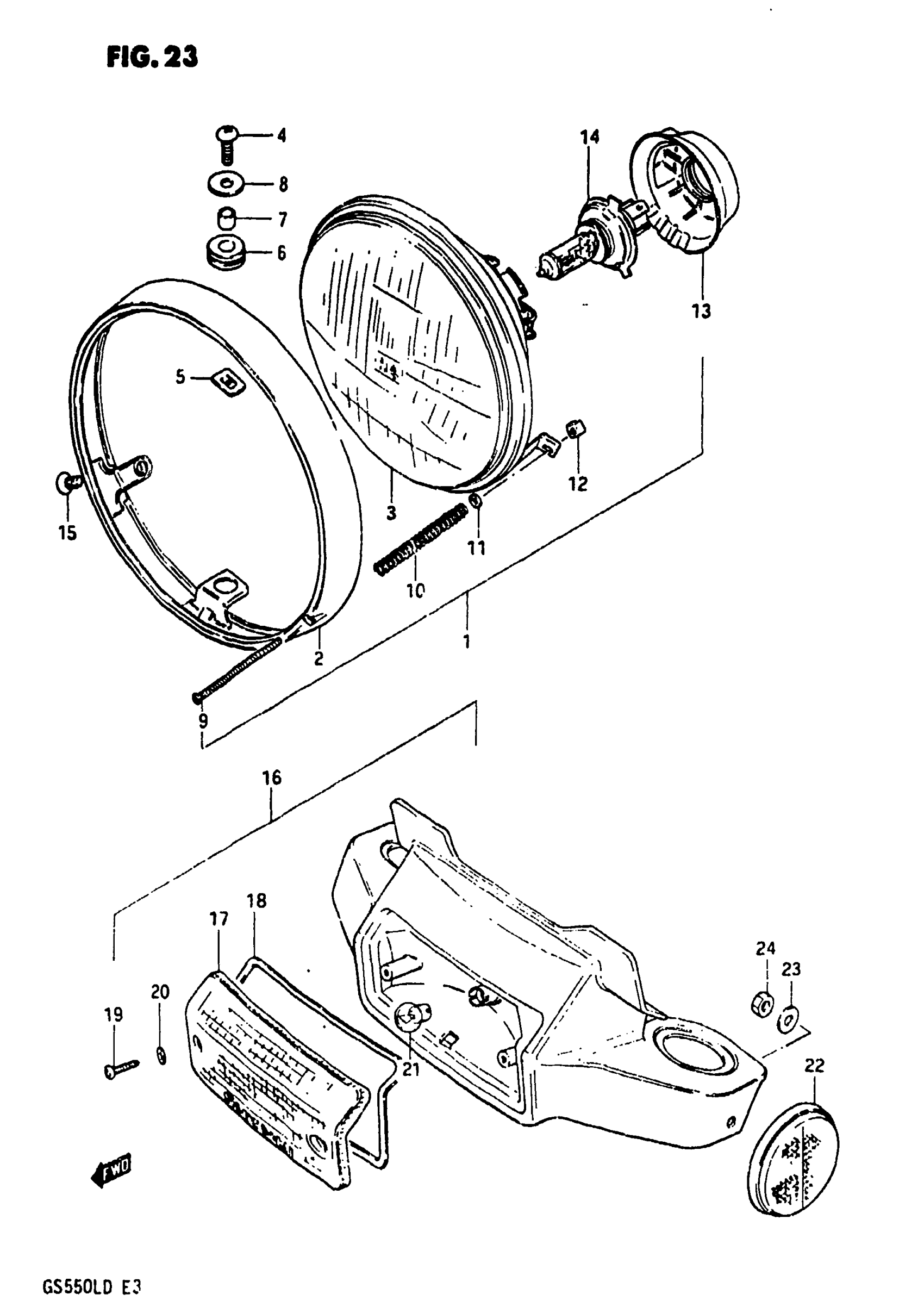

Suzuki GS550L (1983) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 13 This part replaces 35100-15530-999.

35100-05A30-999

Unavailable

2

RIM

35111-15530

Unavailable

3

UNIT This part replaces 35121-15530.

35121-05A30

Unavailable

4

SCREW

09125-05102

$1.61

5

NUT

35155-48510

$2.28

6

CUSHION

35139-45230

$1.98

7

SPACER

35133-45230

$3.30

8

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.93

9

SCREW This part replaces 35151-15510.

09125-04020

$2.53

10

SPRING

35154-27630

Unavailable

11

WASHER

35157-27630

$3.25

12

NUT

35135-45600

$3.65

13

COVER, SOCKET

35173-45200

Unavailable

14

BULB (12V, 60/55W,H4) | EXECUTED LOCALLY

09471-12060

$25.15

15

SCREW

09127-05013

$1.49

16

NO DESCRIPTION AVAILABLE | Includes Item(s) 17 - 21 This part replaces 36110-43530.

36110-43531

Unavailable

17

LENS

36112-43510

Unavailable

18

GASKET

36113-15500

Unavailable

19

SCREW

36117-15500

Unavailable

20

GASKET

35627-43010

$2.28

21

NO DESCRIPTION AVAILABLE This part replaces 09471-12032.

09471-12063

Unavailable

22

REFLEX REFLECTOR, FRONT This part replaces 35950-15530.

35950-44930

Unavailable

23

WASHER This part replaces 08322-21058.

08322-01057

$2.13

24

NUT This part replaces 08310-11058.

08310-00057

$1.84
