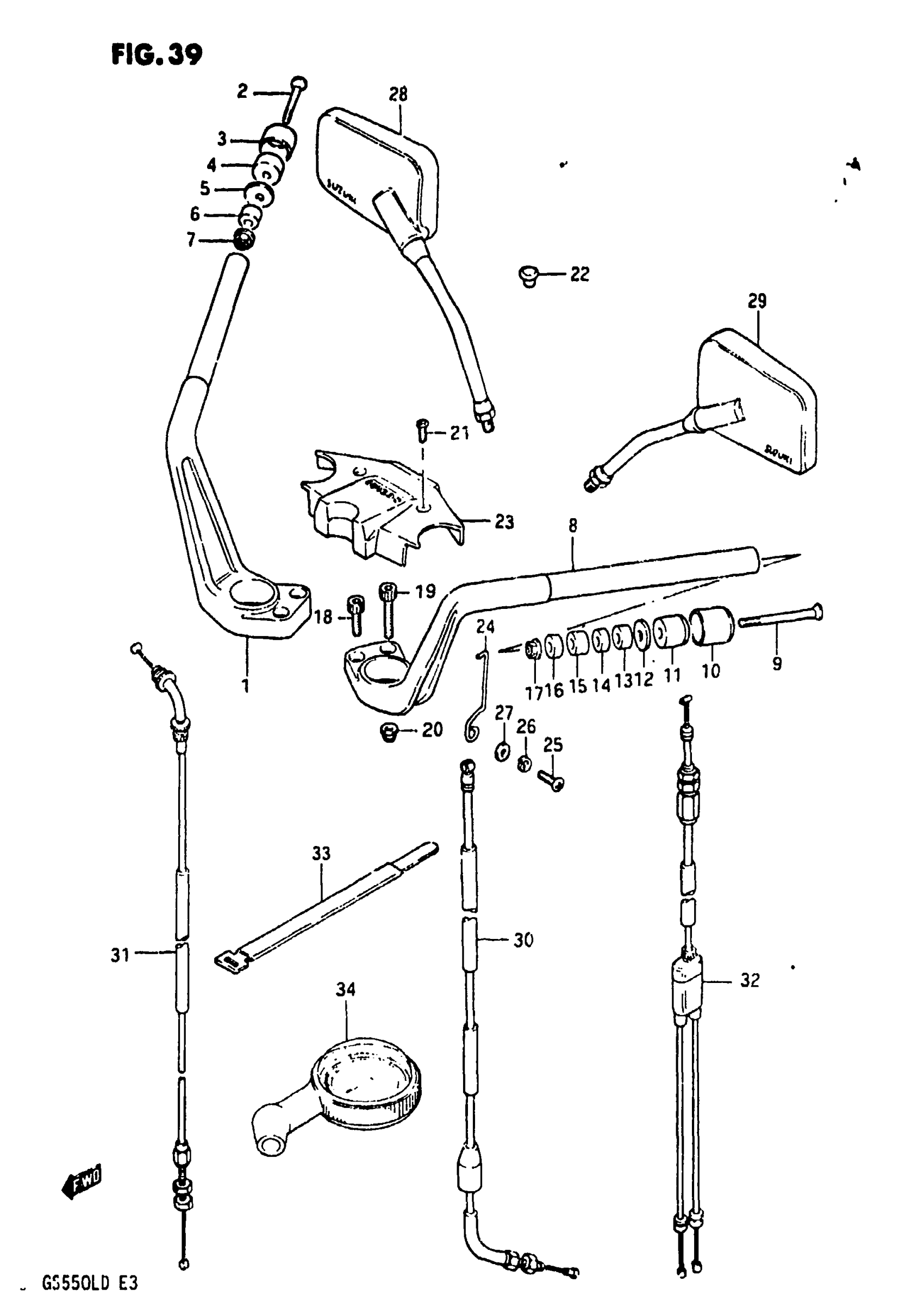

Suzuki GS550L (1983) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-43501

Unavailable

2

SCREW 6X65 This part replaces 02132-06657.

02122-06657

$2.39

3

CAP This part replaces 56274-49400.

56274-12C00

Unavailable

4

BALANCER

56271-49400

Unavailable

5

SPACER

56275-43500

Unavailable

6

EXPANDER

56272-44500

$4.42

7

NUT

09159-06024

$2.11

8

HANDLEBAR, LH

56151-43501

Unavailable

9

SCREW

09127-06011

Unavailable

10

CAP This part replaces 56274-49400.

56274-12C00

Unavailable

11

BALANCER, OUTER

56271-49400

Unavailable

12

SPACER

56275-43500

Unavailable

13

BALANCER, INNER

56271-43500

Unavailable

14

.EXPANDER,HANDLE BALANCER This part replaces 56272-43500.

56272-42F00

$5.45

15

BVALANCER, INNER

56271-43500

Unavailable

16

.EXPANDER,HANDLE BALANCER This part replaces 56272-43500.

56272-42F00

$5.45

17

NUT

09159-06024

$2.11

18

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

19

BOLT, HANDLEBAR, REAR

09106-08045

Unavailable

20

NUT This part replaces 08319-31088.

08319-3108A

$2.32

21

SCREW This part replaces 02112-05168.

02112-05167

$1.97

22

PLUG

09250-10001

$1.86

23

PAD, HANDLE

56170-43501

Unavailable

24

GUIDE, HANDLE

58621-43502

Unavailable

25

SCREW This part replaces 02112-06128.

02112-06127

$1.84

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

WASHER This part replaces 08322-21068.

08322-01067

$2.13

28

NO DESCRIPTION AVAILABLE This part replaces 56500-43500.

56500-47102

Unavailable

29

NO DESCRIPTION AVAILABLE This part replaces 56600-47100.

56600-47102

Unavailable

30

CABLE, CLUTCH

58200-43501

Unavailable

31

CABLE, THROTTLE

58300-43501

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 58410-43501.

58410-43X03

Unavailable

33

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

34

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
