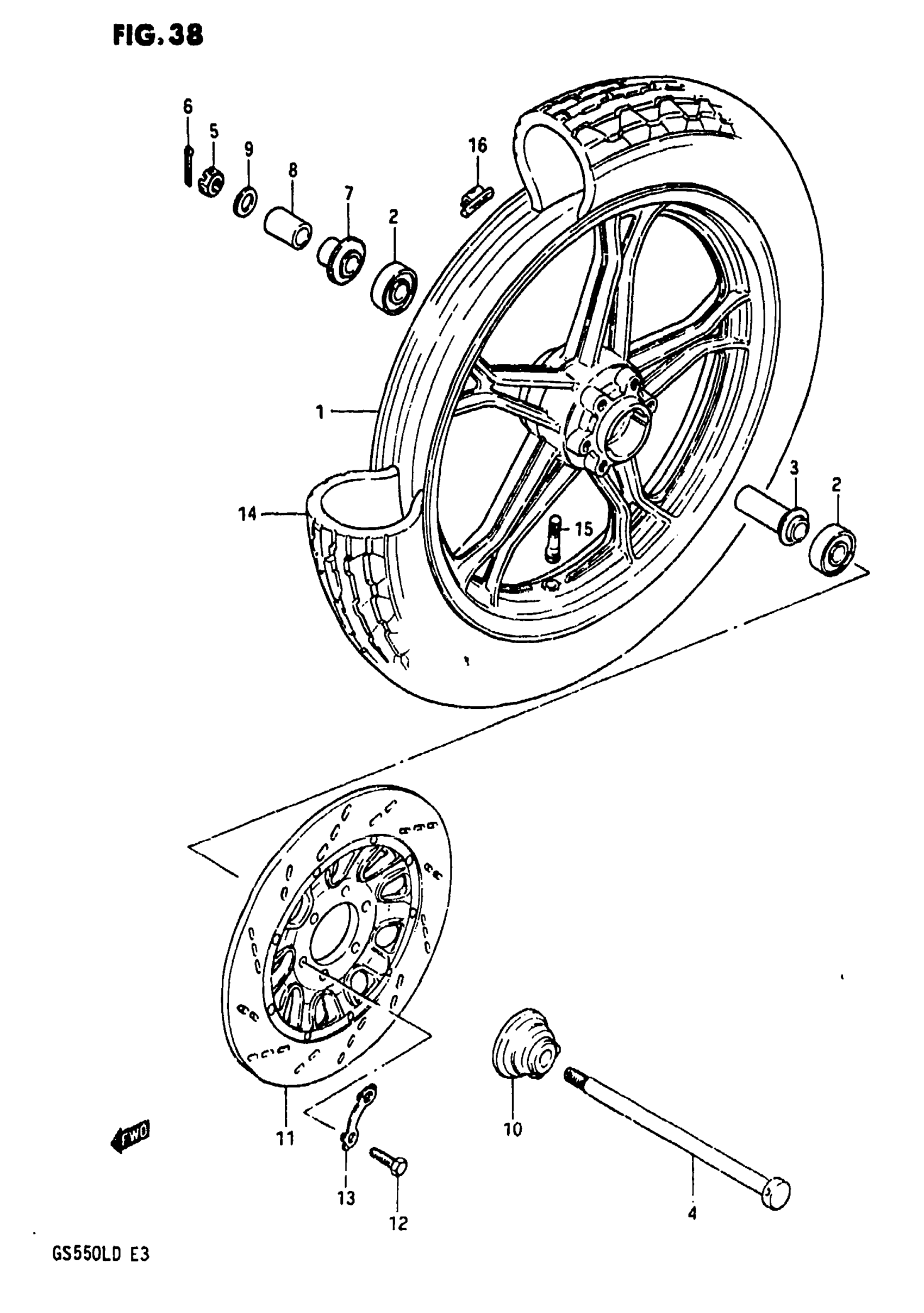

Suzuki GS550L (1983) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (2.15X16) BLACK | BLACK This part replaces 54111-43500-291.

54111-09310-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-09300

Unavailable

4

AXLE, FRONT

54711-49000

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH

54740-18410

$20.45

8

SPACER, AXLE RH

09180-15063

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

BOX, SPEEDOMETER GEAR This part replaces 54600-31301.

54600-00A00

Unavailable

11

DISK, FRONT BRAKE

59220-49150

Unavailable

12

BOLT

09100-08094

$2.71

13

WASHER

09169-08016

$2.41

14

TIRE (100/90-16 54H) | IRC

55100-43510

Unavailable

14

TIRE, T/L FRONT (100/90-16) | DUNLOP This part replaces 55100-43550.

55100-43450

Unavailable

15

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

16

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

$7.05

16

BALANCER, NO.2 (30G)

55412-45100

Unavailable

16

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

$1.49
