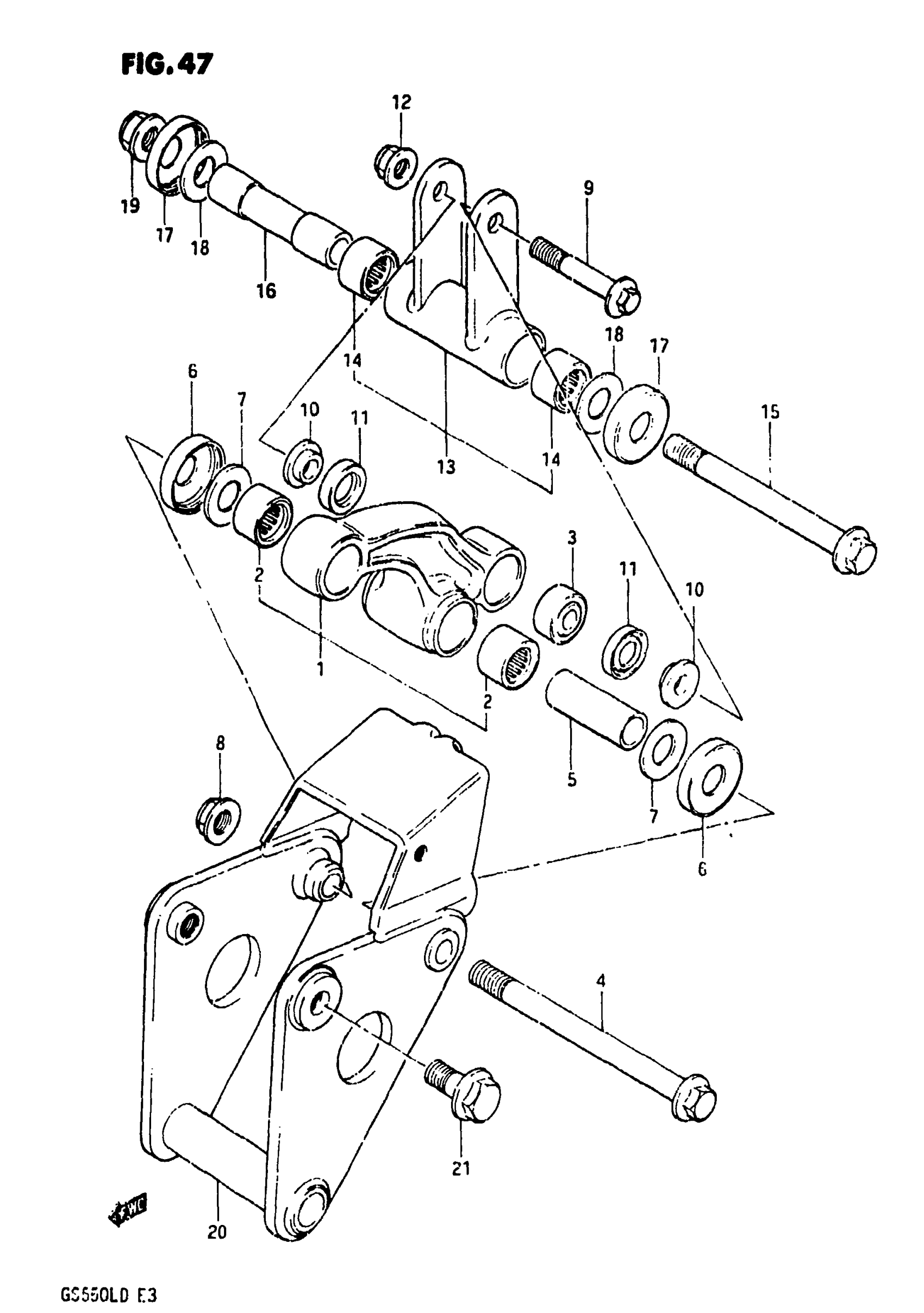

Suzuki GS550L (1983) CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, CUSHION (BLACK) | Includes Item(s) 2 - 3

62600-43810-291

Unavailable

2

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

3

BEARING, FRONT/REAR

09269-10003

$58.48

4

SHAFT

62621-43400

Unavailable

5

SPACER

62623-43400

Unavailable

6

COVER This part replaces 61262-41500.

61262-41501

Unavailable

7

THRUST WASHER

08211-12283

$2.12

8

NUT This part replaces 08319-31128.

08319-3112A

$3.76

9

BOLT, FRONT/REAR

09103-10030

$6.45

10

SPACER, REAR This part replaces 62684-43400.

62684-43401

$10.75

11

DUST SEAL, FRONT/REAR

62683-43400

$5.67

12

NUT This part replaces 08319-31108.

08319-31107

$2.73

13

ROD SET, CUSHION LEVER (BLACK) | Includes Item(s) 14

62600-43830-291

Unavailable

14

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

15

BOLT, LOWER This part replaces 62313-43400.

62313-43401

Unavailable

16

SPACER, LOWER

62316-43400

Unavailable

17

COVER This part replaces 61262-41500.

61262-41501

Unavailable

18

THRUST WASHER

08211-12281

$2.53

19

NUT This part replaces 08319-31128.

08319-3112A

$3.76

20

HOLDER, CUSHION LEVER

62690-43501

Unavailable

21

BOLT, HOLDER

09103-12005

$7.05
