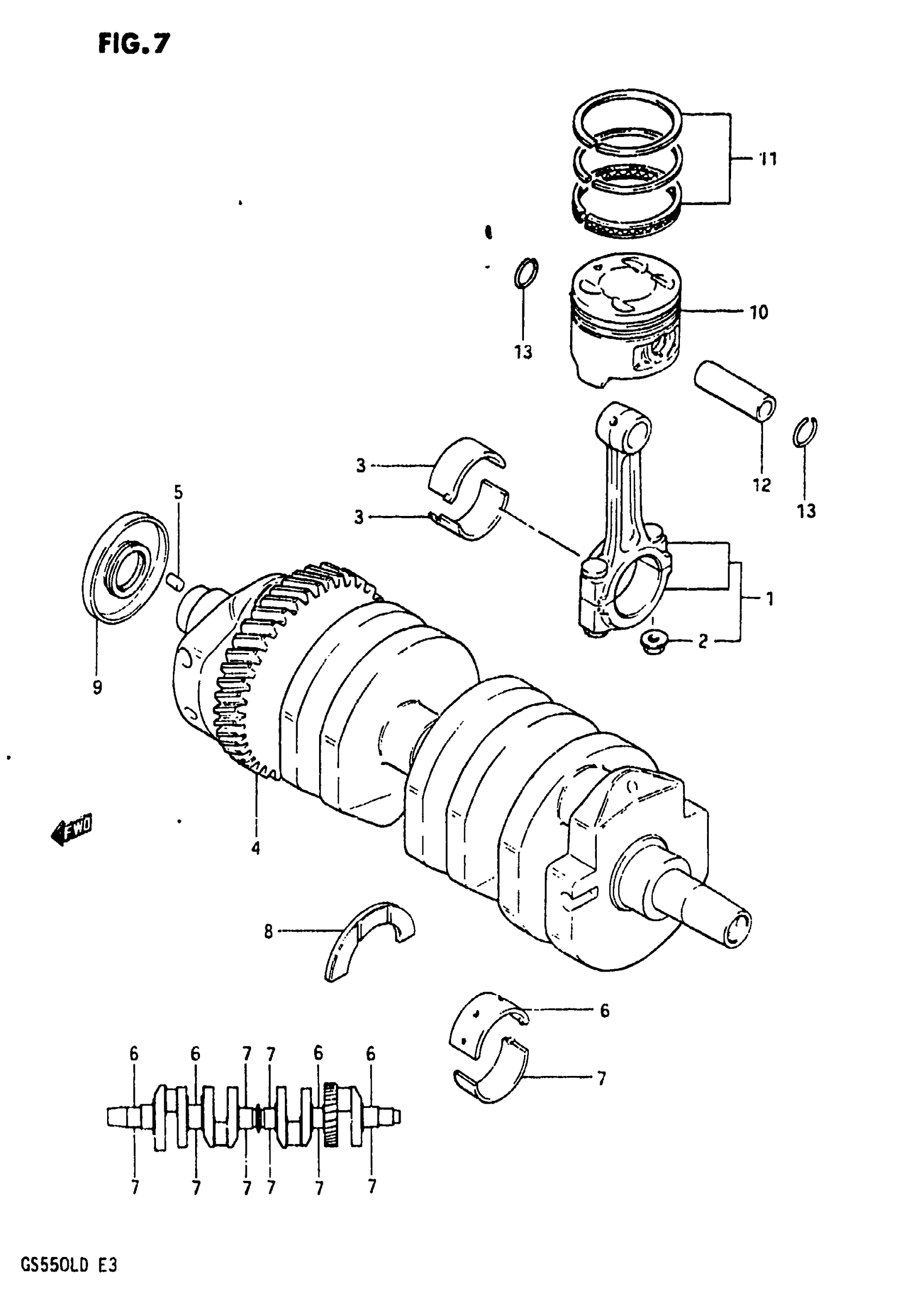

Suzuki GS550L (1983) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-43403

Unavailable

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-43400-010.

12164-33300-0A0

Unavailable

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-43400-020.

12164-33300-0B0

Unavailable

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-43400-030.

12164-33300-0C0

Unavailable

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-43400-040.

12164-33300-0D0

Unavailable

4

CRANKSHAFT | Includes Item(s) 5

12220-43402

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

NO DESCRIPTION AVAILABLE This part replaces 12229-43410-010.

12229-43400-0A0

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 12229-43410-020.

12229-43400-0B0

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 12229-43410-030.

12229-43400-0C0

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 12229-43410-040.

12229-43400-0D0

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 12229-43400-010.

12229-43400-0A0

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 12229-43400-020.

12229-43400-0B0

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 12229-43400-030.

12229-43400-0C0

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 12229-43400-040.

12229-43400-0D0

Unavailable

8

THRUST BEARING (RED) | LH

12228-43411

Unavailable

8

THRUST BEARING (BLACK) | LH

12228-43412

Unavailable

8

THRUST BEARING (BLUE) | LH

12228-43413

Unavailable

8

THRUST BEARING (GREEN) | LH & RH

12228-43414

$10.07

8

THRUST BEARING (YELLOW) | LH

12228-43415

Unavailable

8

THRUST BEARING (WHITE) | LH

12228-43416

Unavailable

9

OIL SEAL This part replaces 09283-30043.

09283-30047

Unavailable

10

PISTON | STD This part replaces 12111-43407.

12111-43420

Unavailable

10

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-43407-050.

12103-43830-050

Unavailable

10

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-43407-100.

12103-43830-100

Unavailable

11

RING SET, PISTON | STD This part replaces 12140-43421.

12140-43422

Unavailable

11

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-43421-050.

12140-43422-050

Unavailable

11

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-43421-100.

12140-43422-100

Unavailable

12

PIN, PISTON

12151-43400

Unavailable

13

SNAP RING This part replaces 09381-16002.

09381-16001

$1.67
