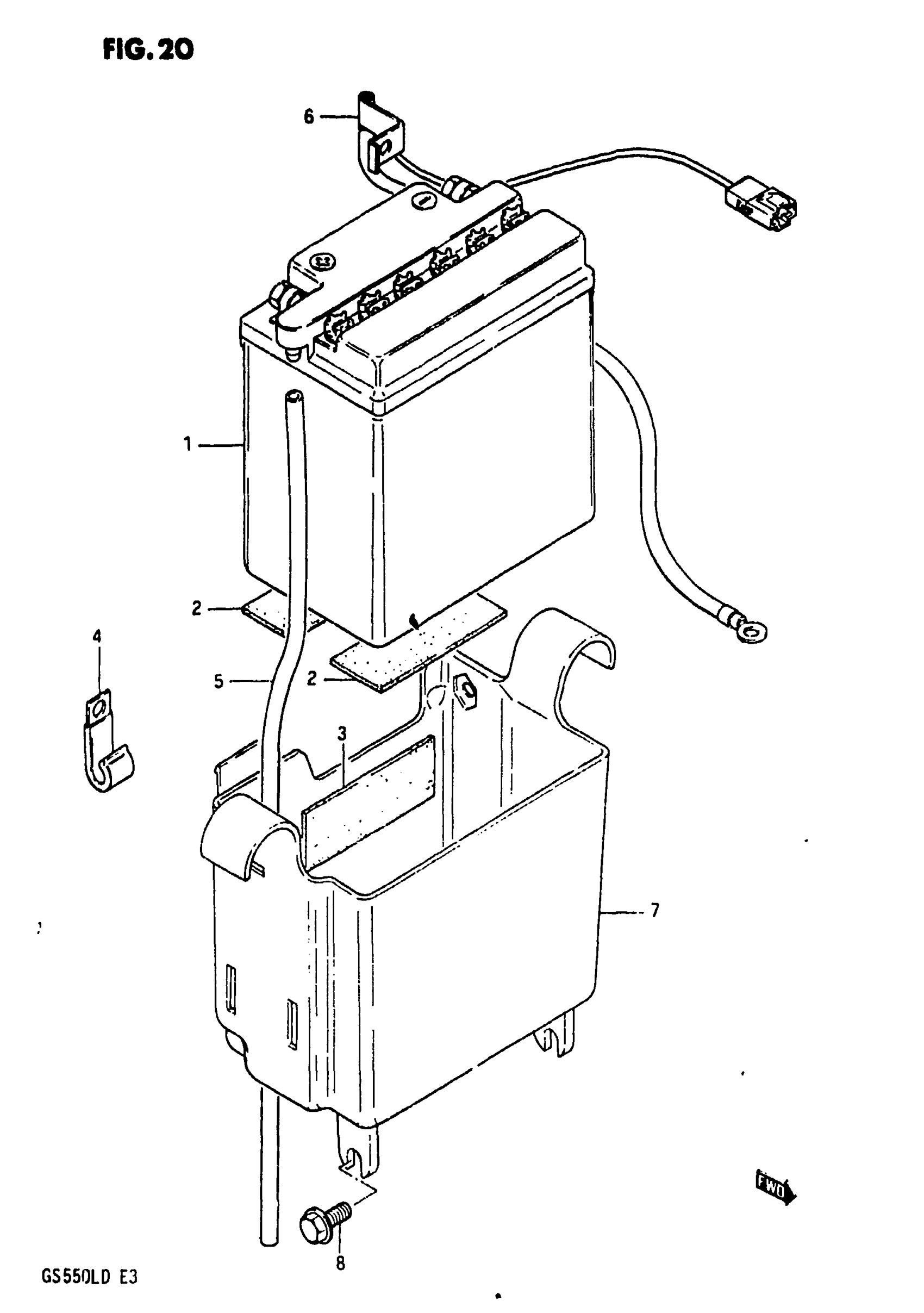

Suzuki GS550L (1983) BATTERY Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 33610-08360.

33610-08310

Unavailable

2

PROTECTOR (80X80X2) This part replaces 33652-34000.

33652-07D00

$5.64

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

4

CLAMP This part replaces 09403-09303.

09403-09003

$2.20

5

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

6

LEAD WIRE, (-)

33850-43500

Unavailable

7

HOLDER, BATTERY

41541-43500

Unavailable

8

BOLT

01534-06165

Unavailable
