1983 Suzuki GS550L AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1983 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

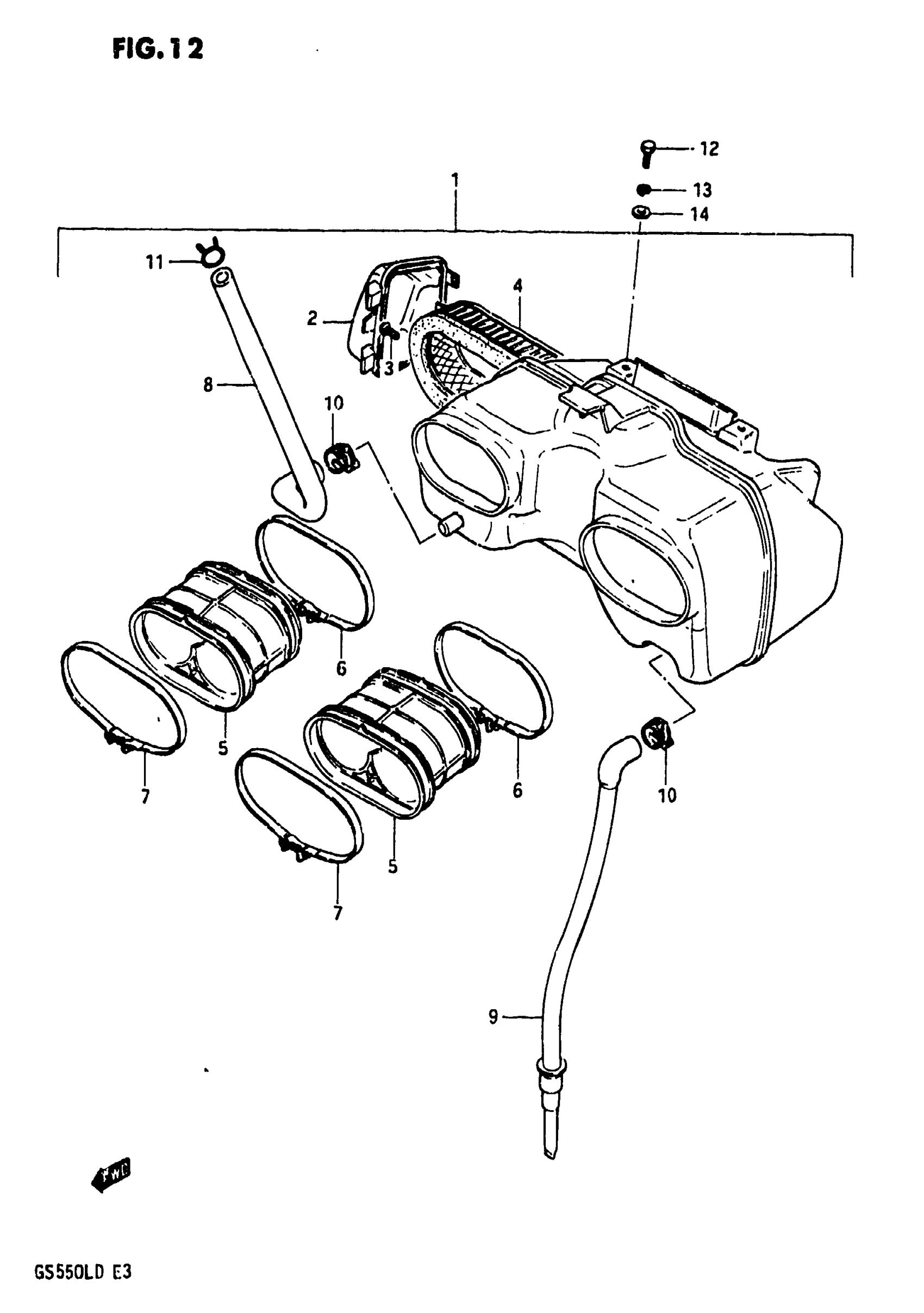

1983 Suzuki GS550L AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 11 This part replaces 13700-43501.

13700-43512

1
Out of stock

2

CAP

13740-43500

1
Out of stock

3

.SCREW This part replaces 02142-05125.

02142-0512A

1
Out of stock

4

FILTER

13780-43400

1
Out of stock

5

TUBE, OUTLET This part replaces 13881-43500.

13881-43501

2
Out of stock

6

CLAMP, CLEANER SIDE This part replaces 13827-43400.

13827-43401

2
Out of stock

7

CLAMP, CARBURETOR SIDE This part replaces 13826-43400.

13826-43401

2
Out of stock

8

HOSE, BREATHER

13853-43400

1
Out of stock

9

TUBE,DRAIN This part replaces 13870-43500.

13870-21459

1
Out of stock

10

CLIP This part replaces 13824-43400.

09401-14404

2
Out of stock

11

CLIP This part replaces 13828-00020.

09401-14401

1
Out of stock

12

2

$2.10

In stock

13

2

$2.28

In stock

14

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock
