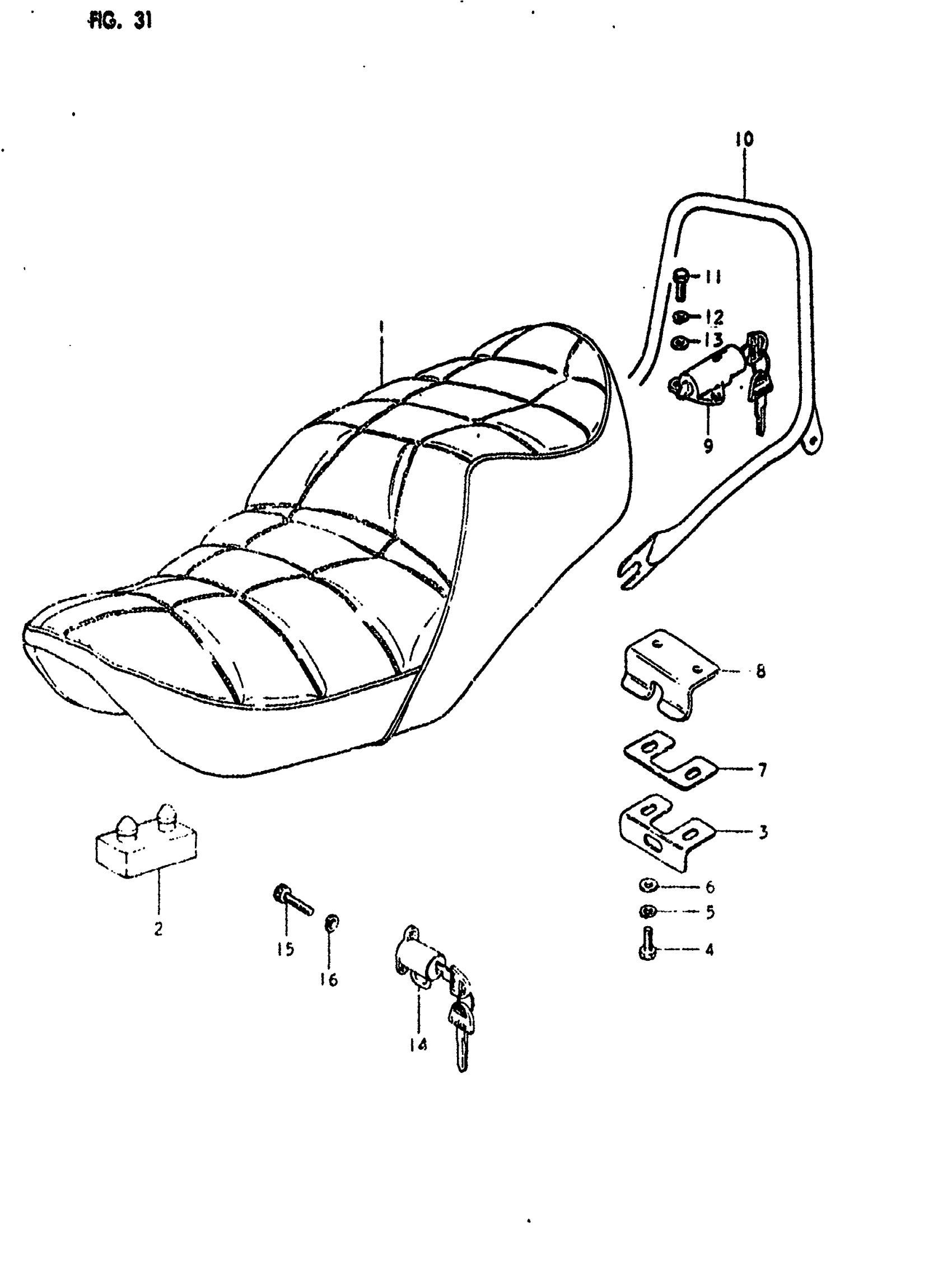

Suzuki GS550L (1980) SEAT Diagram

#

Description
Price

1

SEAT

45100-47205-40N

Unavailable

2

CUSHION

09321-08006

$2.90

3

STRIKER, SEAT LOCK

45213-47200

Unavailable

4

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

7

WASHER (8.5X18X1) This part replaces 45217-47200.

09160-08043

$1.83

8

GUIDE PLATE, SEAT LOCK

45214-49105

Unavailable

9

LOCK SET, SEAT This part replaces 95700-47810.

95700-47820

Unavailable

10

HANDLE, PLILLION RIDER

46210-47205

Unavailable

11

BOLT This part replaces 01107-06208.

01500-06207

$2.28

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

14

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

Unavailable

15

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$3.21

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
