1980 Suzuki GS550L Rear Combination Diagram

← All diagrams

Find the part on the Rear Combination diagram for your 1980 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

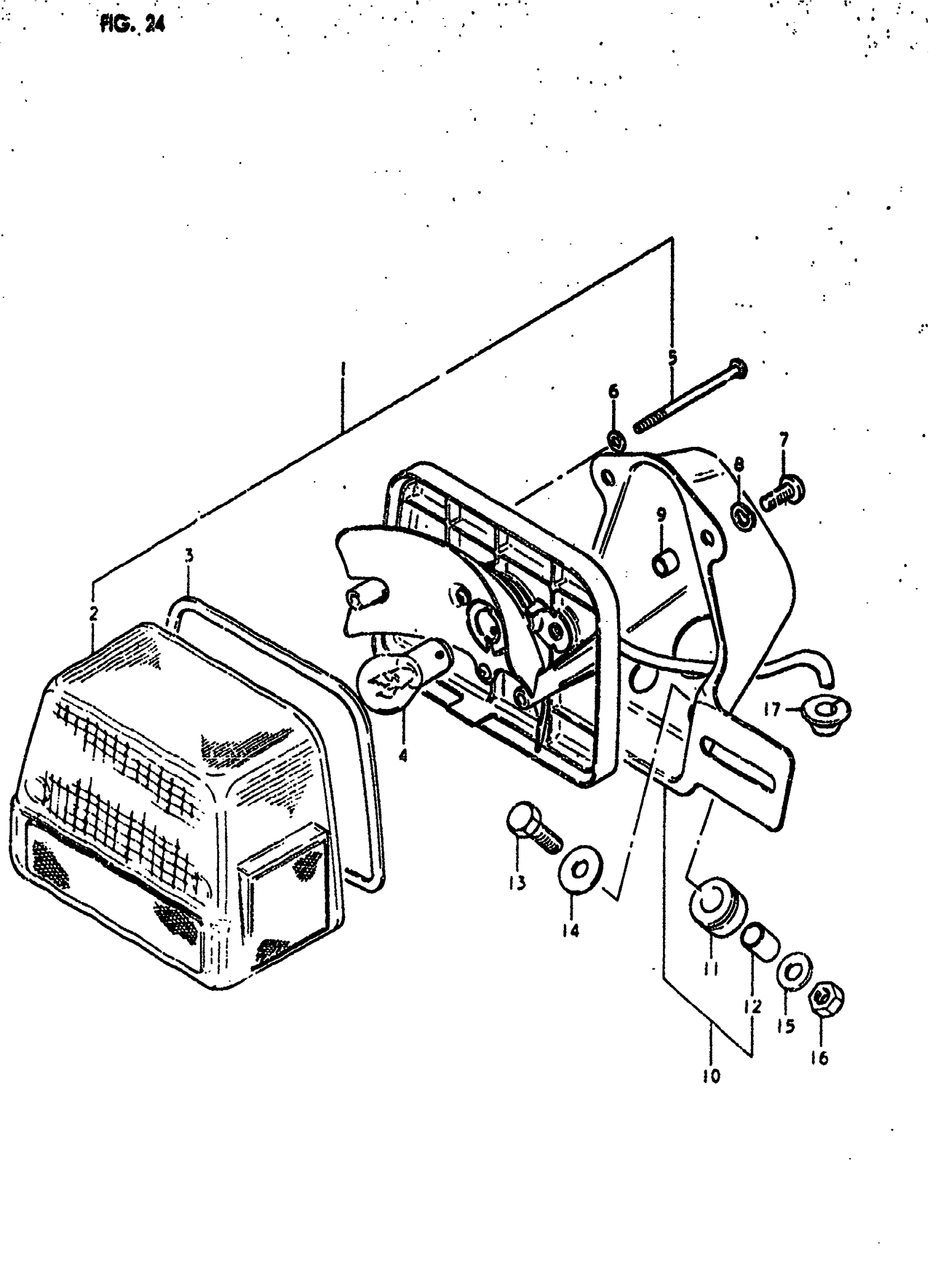

1980 Suzuki GS550L Rear Combination Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT, REAR COMBINATION | Includes Item(s) 2 - 9 This part replaces 35720-49130.

35720-49130-999

1
Out of stock

2

LENS

35712-49130

1
Out of stock

3

GASKET

35713-49130

1
Out of stock

4

BULB (12V, 23/BW)

09471-12035

1
Out of stock

5

SCREW

35723-44130

2
Out of stock

6

GASKET

35627-43010

2

$2.65

In stock

7

SCREW This part replaces 02112-05168.

02112-05167

2
Out of stock

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

9

SPACER

35766-39210

2
Out of stock

10

BRACKET ASSY | Includes Item(s) 11 - 12

35730-49130

1
Out of stock

11

CUSHION

35765-22210

3
Out of stock

12

SPACER

35766-37120

3
Out of stock

13

BOLT This part replaces 01107-06258.

01500-06257

3
Out of stock

14

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

3
Out of stock

15

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock

16

.NUT This part replaces 08310-11068.

08310-00067

3
Out of stock

17

GROMMET, LEAD WIRE

09308-07004

2
Out of stock
← Left Handle Switch Right Handle Switch →
