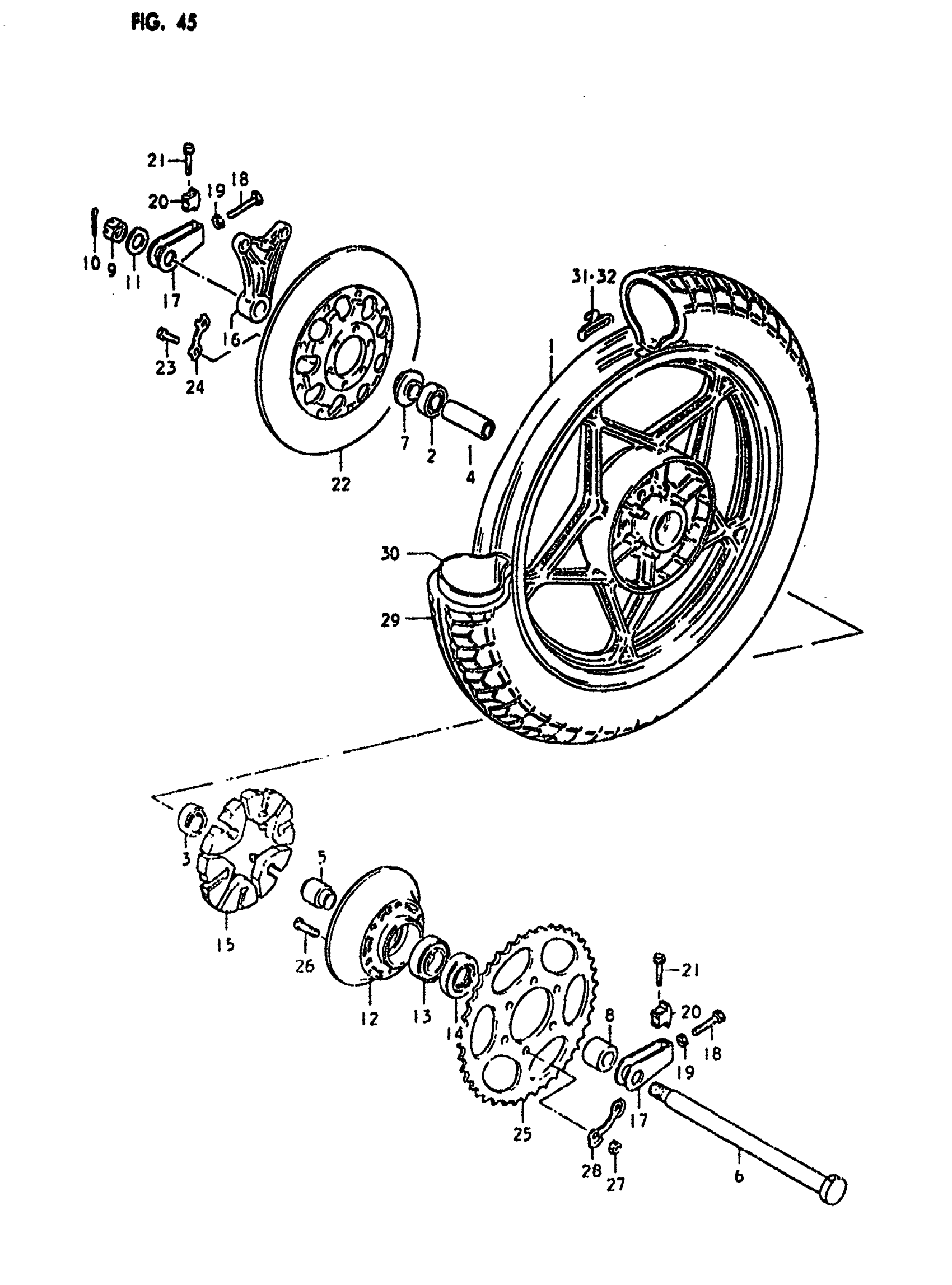

Suzuki GS550L (1980) REAR Diagram

#

Description
Price

1

WHEEL, REAR (MT2,50x17) (BLACK This part replaces 64111-49020.

64111-49001-12U

Unavailable

2

BEARING, RH

08133-63037

$36.30

3

BEARING, LH

08153-63037

Unavailable

4

SPACER, BEARING

09180-20062

$19.13

5

HOLDER, BEARING

64733-47000

Unavailable

6

AXLE, REAR

64711-47200

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 64740-47001.

64740-47002

Unavailable

8

SPACER, LH

09180-17048

Unavailable

9

NUT

09141-16001

Unavailable

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

11

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

12

DRUM, SPROCKET This part replaces 64611-31000.

64611-31003

Unavailable

13

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

14

OIL SEAL

09285-33001

$13.27

15

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$11.19

16

BRACKET, REAR CALLPERS

69721-47001

Unavailable

17

ADJUSTER, CHAIN

61410-47200

Unavailable

18

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

19

NUT This part replaces 08310-11088.

08310-00087

$2.13

20

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

Unavailable

21

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

22

NO DESCRIPTION AVAILABLE This part replaces 59210-18401.

59210-18402

Unavailable

23

BOLT

09100-08094

$2.71

24

WASHER

09169-08016

$2.41

25

SPROCKET, REAR (NT:51)

64511-47630

Unavailable

26

BOLT This part replaces 09119-10002.

09105-10001

$2.87

27

NUT This part replaces 08310-12108.

08310-00107

$2.19

28

WASHER

09169-10007

Unavailable

29

TIRE (4.50H17)

65100-45116

Unavailable

30

TUBE, INNER (4.50H17)

65200-49010

Unavailable

31

BALANCER, S | (0~3)AR

55411-47001

Unavailable

32

BALANCER, L | (0~3)AR

55412-47001

Unavailable
