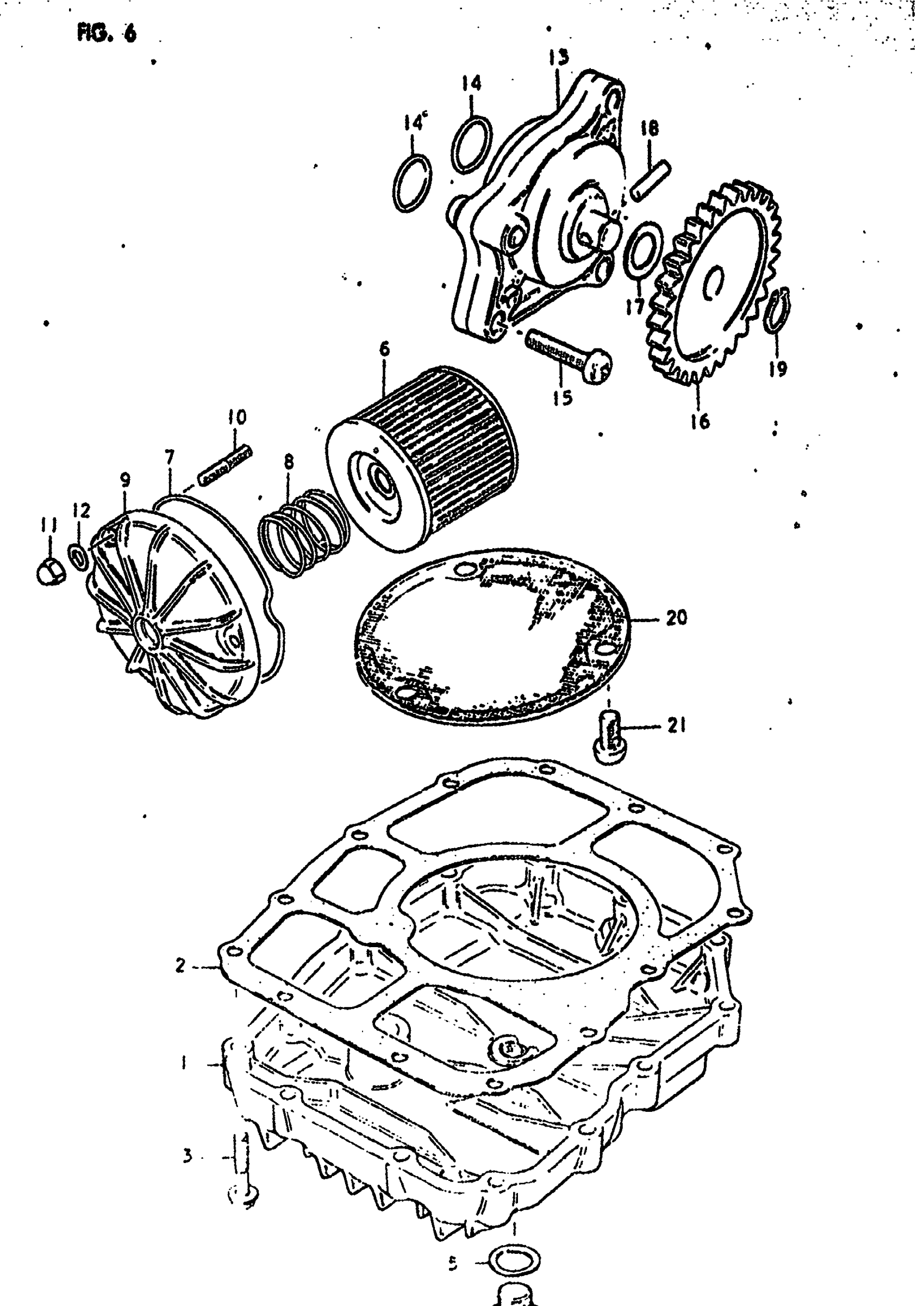

Suzuki GS550L (1980) OIL PUMP - OIL FILTER Diagram

#

Description
Price

1

PAN, OIL | Includes Item(s) 2 This part replaces 11511-47000.

11511-47001

Unavailable

2

GASKET,OIL PAN( This part replaces 11489-47000.

11489-47000-H17

Unavailable

3

BOLT This part replaces 01517-06308.

01550-06307

$2.69

4

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

5

GASKET

09168-14004

$1.83

6

FILTER, ENGINE OIL

16510-45040

$5.96

7

O RING

16518-45000

$5.70

8

SPRING

09440-32004

$2.92

9

CAP, ENGINE OIL FILTER This part replaces 16512-45100.

16512-45101

Unavailable

10

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

11

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

PUMP, ENGINE OIL This part replaces 16400-45013.

16400-45020

Unavailable

14

O RING

09280-13004

$2.17

15

SCREW This part replaces 02112-06258.

02112-06257

$1.78

16

GEAR, OIL PUMP DRIVEN (NT:35)

16331-47000

Unavailable

17

WASHER

08221-10185

$2.15

18

PIN

09261-04009

$1.56

19

CIRCLIP

08331-31109

$1.78

20

STRAINER, ENGINE OIL This part replaces 16520-45000.

16520-45010

Unavailable

21

SCREW This part replaces 02112-06128.

02112-06127

$1.84
