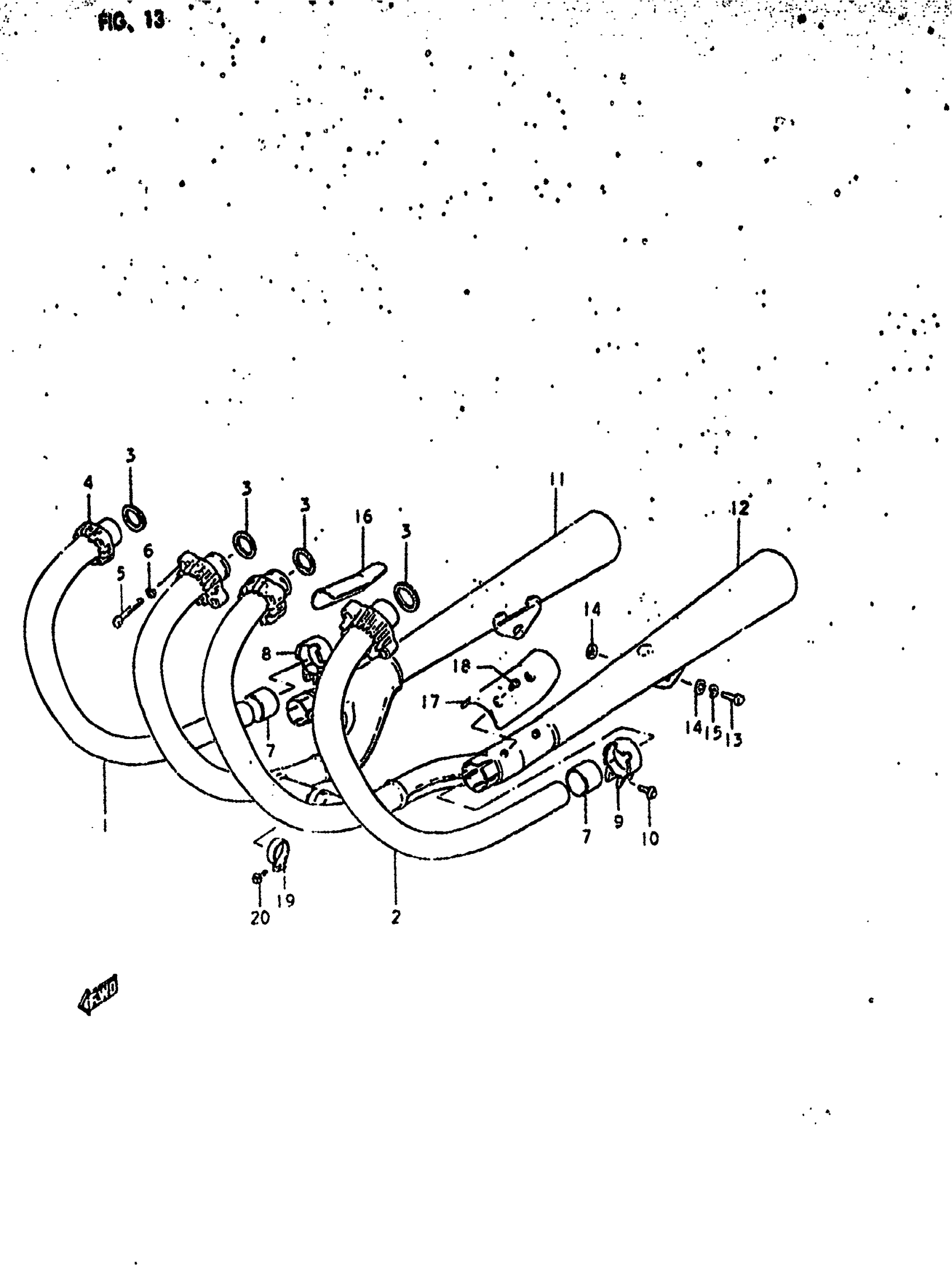

Suzuki GS550L (1980) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST LH

14150-47000

Unavailable

2

PIPE, EXHAUST LH

14160-47000

Unavailable

3

GASKET, EXHAUST PIPE This part replaces 14181-03310.

14181-37D00

$4.56

4

CLAMP

14182-47000

Unavailable

5

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

CONNECTOR,MUFLR This part replaces 14771-47010.

14771-47020-H17

Unavailable

8

CLAMP, CONNECTOR RH

14459-47000

Unavailable

9

CLAMP, CONNECTOR LH

14469-47000

Unavailable

10

BOLT This part replaces 01517-08258.

01550-08257

$2.81

11

NO DESCRIPTION AVAILABLE This part replaces 14310-47220.

14305-47220-H01

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 14340-47220.

14306-47220-H01

Unavailable

13

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

14

WASHER This part replaces 08322-21108.

08322-01107

$2.15

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

COVER, MUFFLER RH

14781-47001

Unavailable

17

COVER, MUFFLER LH

14791-47000

Unavailable

18

SCREW This part replaces 02112-05068.

09125-05122

$2.06

19

CLAMP, EXHAUST

14772-47100

Unavailable

20

BOLT This part replaces 01517-06208.

01550-06207

$2.30
