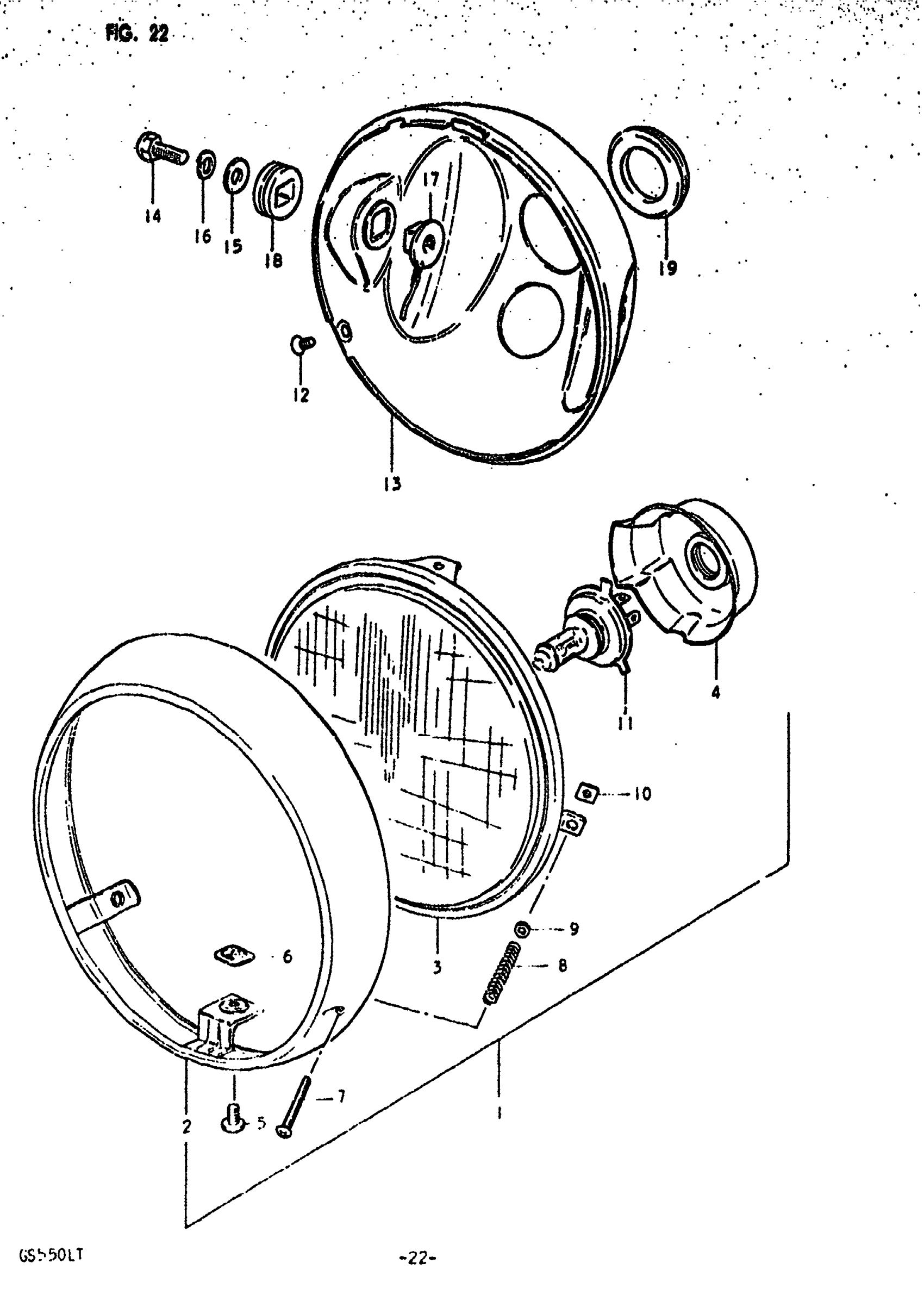

Suzuki GS550L (1980) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 10 This part replaces 35100-45230-999.

35100-45231-999

Unavailable

2

RIM This part replaces 35111-45230.

35111-45231

Unavailable

3

UNIT

35121-45230

Unavailable

4

COVER

35173-45230

Unavailable

5

SCREW This part replaces 02112-05068.

09125-05122

$2.06

6

NUT

35155-48510

$2.28

7

SCREW This part replaces 35151-48510.

35151-45230

Unavailable

8

SPRING This part replaces 35154-45230.

35154-48510

Unavailable

9

WASHER This part replaces 35157-48510.

35157-27630

$3.25

10

WASHER This part replaces 35157-48510.

35157-27630

$3.25

11

BULB (12V, 60/55W)

09471-12060

$25.15

12

SCREW This part replaces 02132-05108.

02122-05107

$1.49

13

HOUSING, HEADLAMP

51810-33600

Unavailable

14

BOLT

01204-08207

$2.30

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.07

18

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.66

19

GROMMET

51845-31031

$4.52
