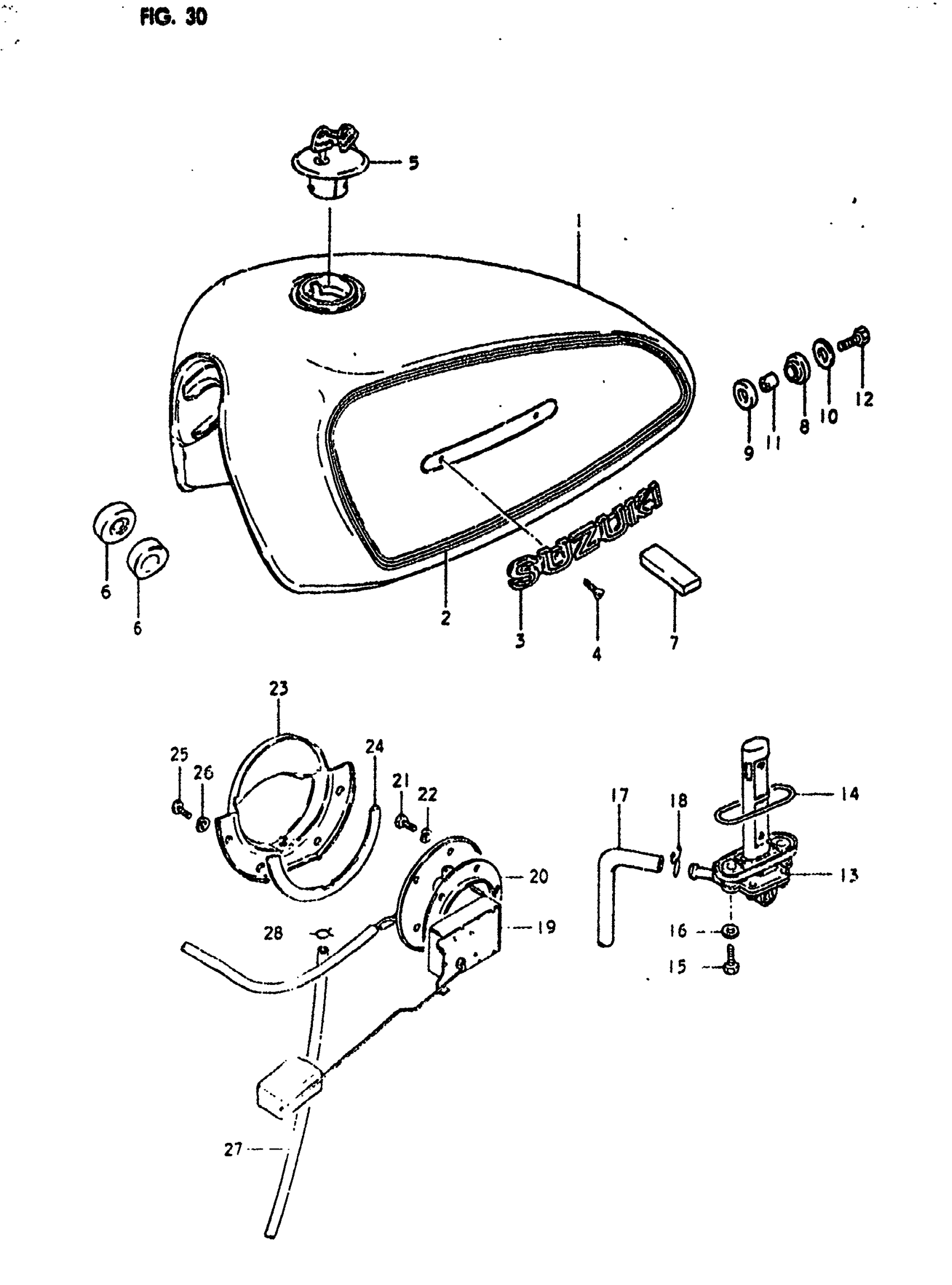

Suzuki GS550L (1980) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-47200-019.

44110-47200-13L

Unavailable

1

TANK, FUEL

44100-47200-O8H

Unavailable

2

FUEL TANK TALE SET

68110-47200-66Y

Unavailable

3

EMBLEM This part replaces 68111-45200.

68111-45010

$24.36

4

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

5

CAP SET,FUEL TA This part replaces 44200-30702.

44200-30832

$94.67

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION, CENTER

44541-47000

$8.83

8

CUSHION, REAR NO. 1

09320-12013

$2.60

9

CUSHION, REAR NO. 2

09320-12017

$2.18

10

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

11

SPACER

09180-08067

$2.41

12

BOLT This part replaces 01107-08308.

01500-08307

$3.04

13

COCK ASSY, FUEL | Includes Item(s) 14

44300-47270

Unavailable

14

GASKET This part replaces 44348-47270.

44348-47271

Unavailable

15

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

16

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

17

HOSE(7X10.2X200 This part replaces 09343-07026.

09352-70104-00B

$15.32

18

CLIP

09401-10403

$1.65

19

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 20

34810-45300

Unavailable

20

GASKET

34825-45100

$5.80

21

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

23

PLATE This part replaces 34885-49002.

34885-49005

Unavailable

24

GASKET,FUEL DRA This part replaces 34888-49000.

34888-49001

Unavailable

25

SCREW This part replaces 02112-05088.

02112-05087

$1.49

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

27

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

28

CLIP

09401-08402

$1.49
