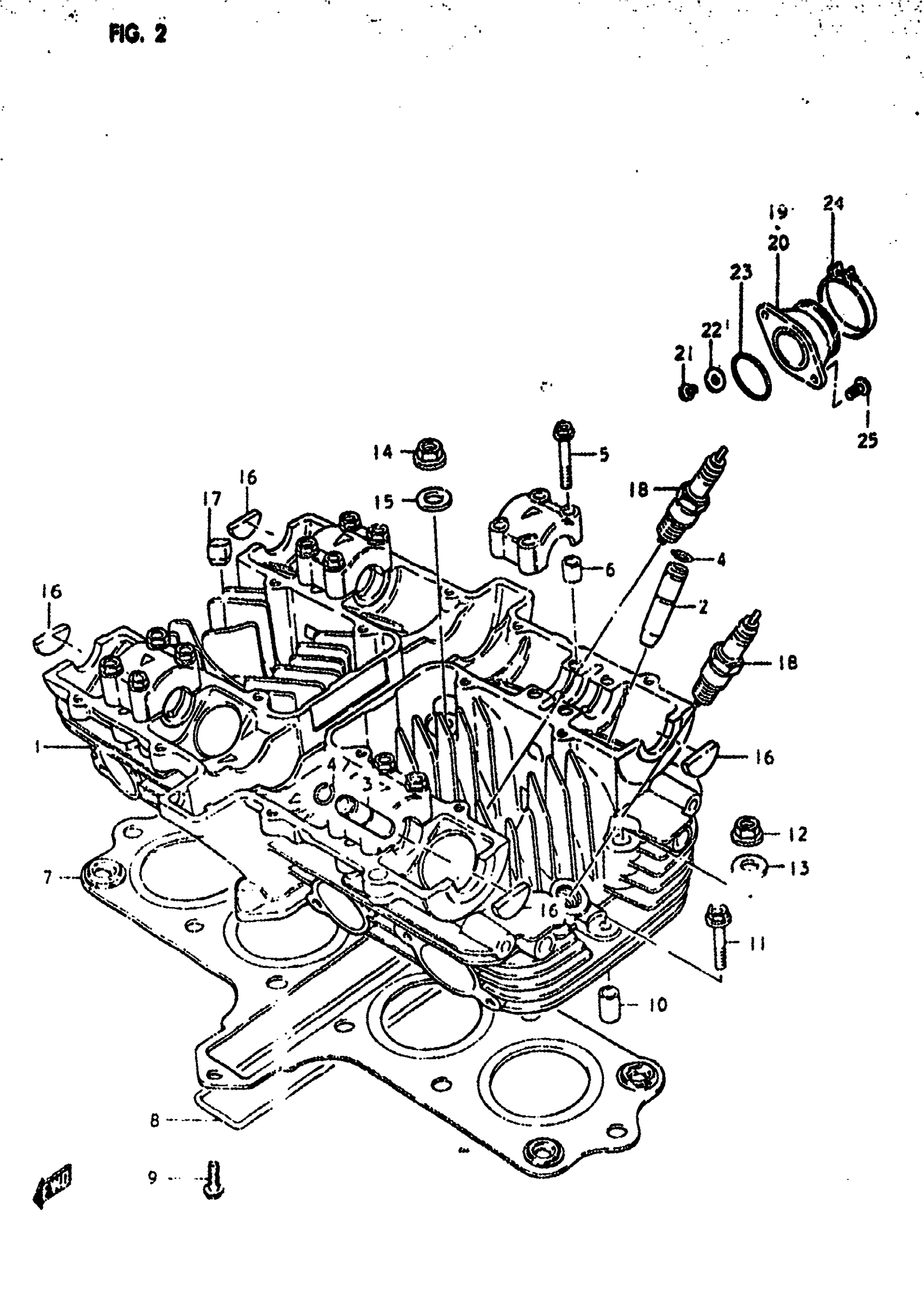

Suzuki GS550L (1980) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-47870.

11100-47890

Unavailable

2

GUIDE, INTAKE VALVE This part replaces 11115-47730.

11115-47740

Unavailable

3

GUIDE, EXHAUST VALVE This part replaces 11116-47730.

11116-47740

$40.73

4

RING, VALVE GUIDE

09381-10003

$2.47

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

GASKET,CYL HEAD This part replaces 11141-47084.

11141-47086-H17

Unavailable

8

O RING

09280-99003

Unavailable

9

BOLT This part replaces 01517-06308.

01550-06307

$2.69

10

PIN

04211-11189

$1.78

11

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

12

NUT

09159-08029

$5.81

13

GASKET This part replaces 09168-08009.

09168-08013

$2.92

14

NUT This part replaces 09159-08031.

09159-08034

$1.62

15

WASHER

09160-08039

$2.03

16

PLUG, CYLINDER HEAD SIDE

09241-23002

$6.17

17

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

$3.37

18

SPARK PLUG This part replaces 09482-00225.

09482-00091

$3.01

18

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

Unavailable

19

PIPE,INTAKE,R This part replaces 13110-47010.

13110-47011

$31.76

20

PIPE,INTAKE,L | Includes Item(s) 21 - 22 This part replaces 13120-47010.

13120-47011

$32.86

21

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.62

22

WASHER This part replaces 08322-21058.

08322-01057

$2.13

23

O RING This part replaces 09280-38003.

09280-38004

$2.92

24

CLAMP This part replaces 09402-50303.

09402-52306

$4.91

25

SCREW This part replaces 02112-06168.

02112-06167

$1.49
