1980 Suzuki GS550L Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1980 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

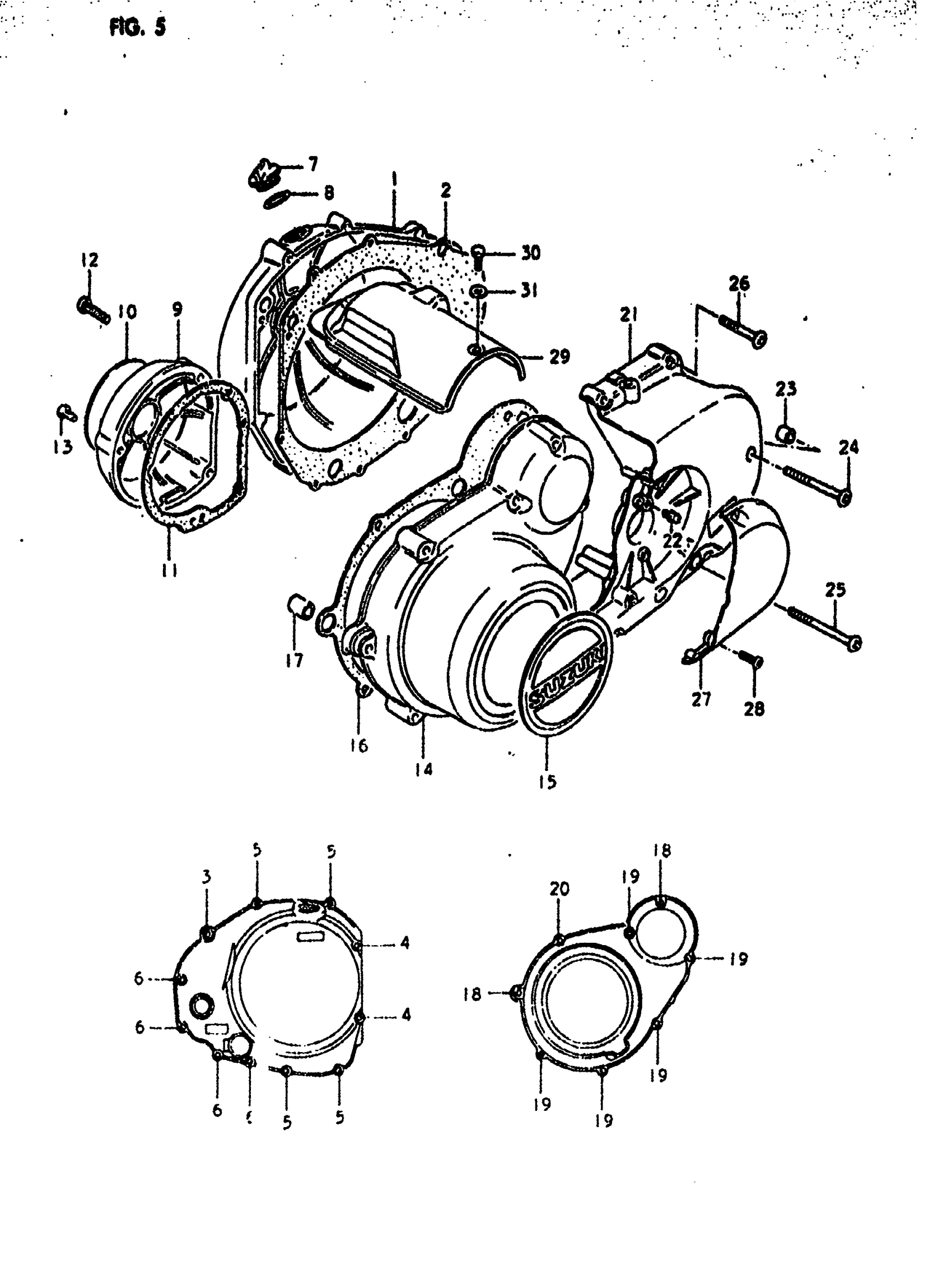

1980 Suzuki GS550L Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH This part replaces 11340-47010.

11340-47011

1
Out of stock

2

GASKET,CL COVER This part replaces 11482-47000.

11482-47000-H17

1
Out of stock

3

SCREW This part replaces 02112-06358.

02112-06357

1
Out of stock

4

SCREW (6X40) This part replaces 02112-06408.

02112-06407

2
Out of stock

5

SCREW This part replaces 02112-06258.

02112-06257

4
Out of stock

6

SCREW This part replaces 02112-06208.

02112-06207

4
Out of stock

7

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

1
Out of stock

8

O RING

09280-32005

1
Out of stock

9

COVER, CONTACT BREAKER This part replaces 11381-47001.

11381-47002

1
Out of stock

10

EMBLEM

68235-47200

1
Out of stock

11

GASKET

11491-47000

1
Out of stock

12

2

$2.23

In stock

13

SCREW This part replaces 02112-05168.

02112-05167

1
Out of stock

14

COVER, GENERATOR This part replaces 11351-47000.

11351-47001

1
Out of stock

15

EMBLEM

68233-45200

1
Out of stock

16

GASKET,MAGCOVER This part replaces 11483-47000.

11483-47000-H17

1
Out of stock

17

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

18

SCREW (6X45) This part replaces 02112-06458.

02112-06457

2
Out of stock

19

SCREW (6X40) This part replaces 02112-06408.

02112-06407

5
Out of stock

20

SCREW This part replaces 02112-06358.

02112-06357

1
Out of stock

21

COVER SET, ENGINE SPROCKET | Includes Item(s) 22 This part replaces 11300-47820.

11300-47822

1
Out of stock

22

GREASE NIPPLE

08351-11009

1
Out of stock

23

PIN

04211-09129

1
Out of stock

24

SCREW This part replaces 02112-06908.

02112-06907

3
Out of stock

25

SCREW This part replaces 02112-06808.

02112-06807

1
Out of stock

26

SCREW This part replaces 02112-06308.

02112-06307

2
Out of stock

27

CAP, CLUTCH RELEASE This part replaces 11387-47000.

11387-47001

1
Out of stock

28

SCREW This part replaces 02112-05168.

02112-05167

3
Out of stock

29

COVER, STARTER MOTOR

11382-47001

1
Out of stock

30

BOLT This part replaces 01104-05108.

01500-0510B

2
Out of stock

31

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock
