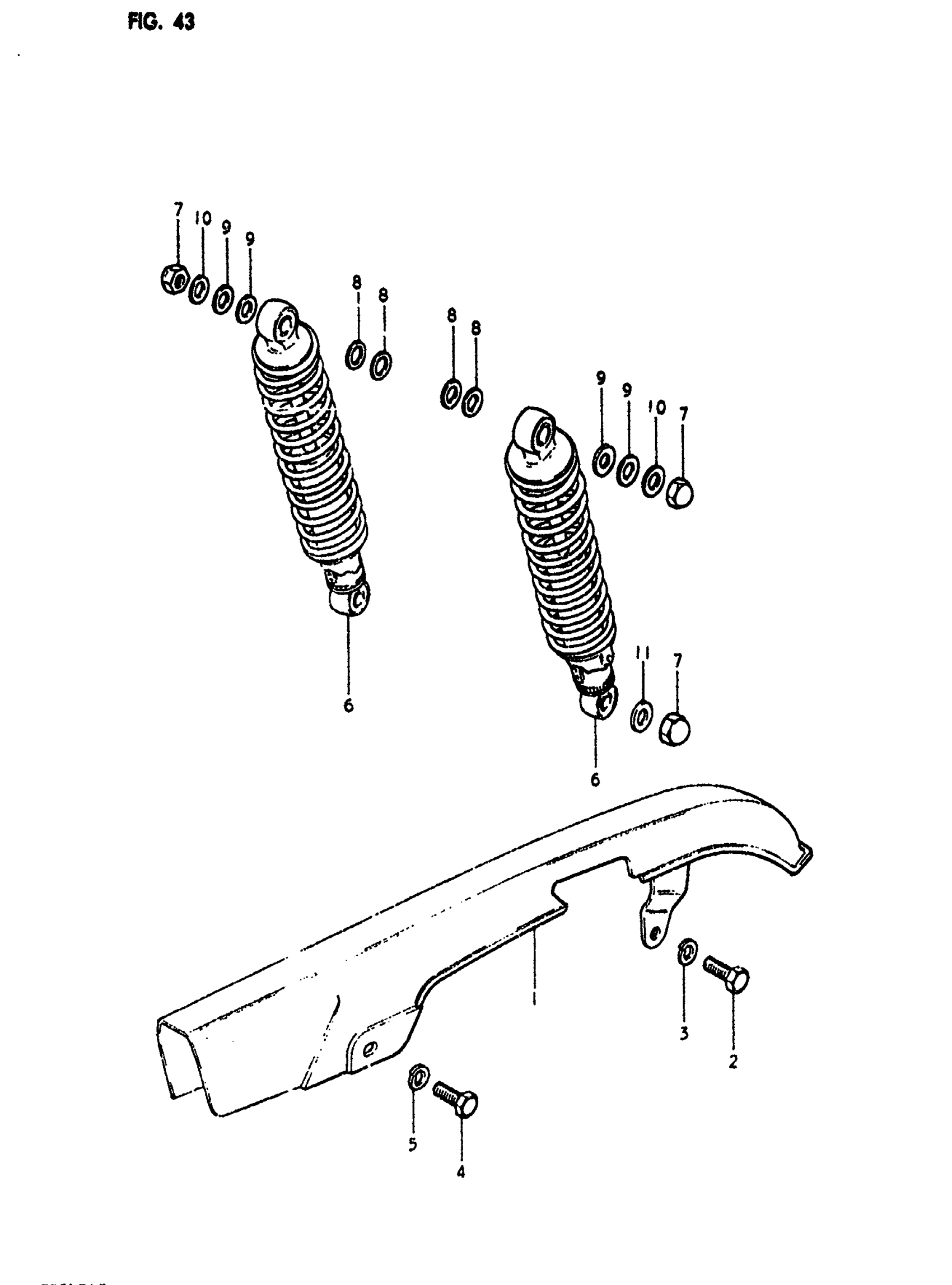

Suzuki GS550L (1980) CHAIN CASE - SHOCK ABSORBER Diagram

#

Description

Price

1

CHAIN CASE This part replaces 61310-47201.

61310-47203

Unavailable

2

BOLT This part replaces 01107-06128.

01500-06127

$1.97

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

BOLT This part replaces 01107-06108.

01500-06107

$2.06

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

SHOCK ABSORBER, REAR

62100-47220

Unavailable

7

NUT This part replaces 08313-11108.

08313-10107

$2.50

8

WASHER This part replaces 08322-11128.

08322-01127

$1.84

9

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

10

WASHER This part replaces 09160-10033.

09160-10128-XC0

$2.62

11

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35
