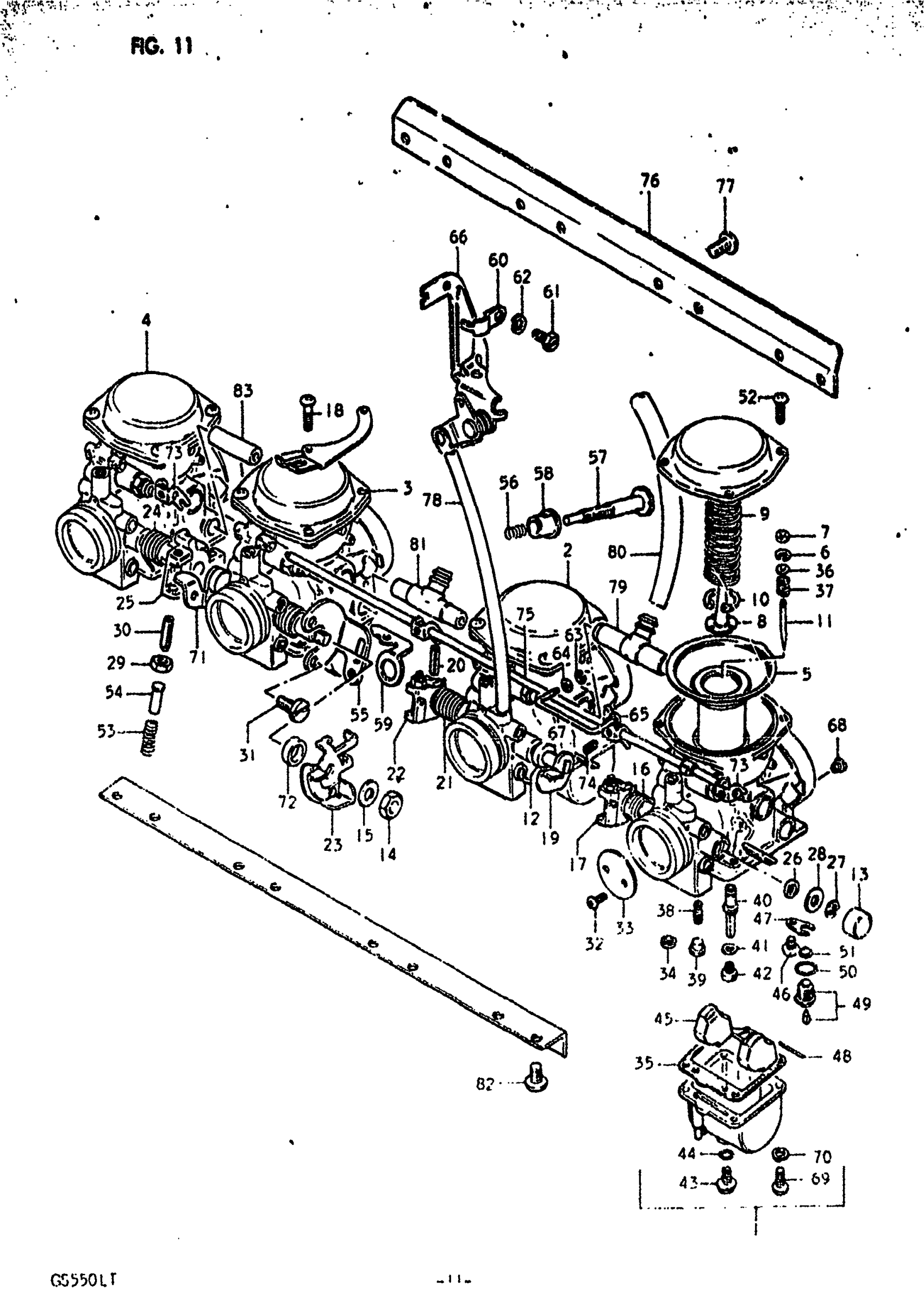

Suzuki GS550L (1980) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 83

13200-47070

Unavailable

1

CARBURETOR, NO.1 | LH

13201-47070

Unavailable

2

CARBURETOR, NO.2 | ML

13202-47070

Unavailable

3

CARBURETOR, NO.3 | MR

13203-47070

Unavailable

4

CARBURETOR, NO.4 | RH

13204-47070

Unavailable

5

DIAPHRAGM This part replaces 13500-47070.

13500-45111

Unavailable

6

E RING

13394-31210

$4.64

7

RING

13387-44030

$5.83

8

GUIDE HOLDER

13389-44030

Unavailable

9

SPRING

13503-47070

Unavailable

10

CLIP

13581-44030

$6.78

11

NEEDLE, JET (4BEL2)

13383-47070

Unavailable

12

GASKET | ML,MR

13557-95210

Unavailable

13

CAP | RH,LH

13578-47070

$4.52

14

NUT | MR This part replaces 08310-12088.

08310-00087

$2.13

15

WASHER | MR

13605-47070

Unavailable

16

SPRING | LH

13573-47070

Unavailable

17

SHAFT | LH

13550-47070

Unavailable

18

SCREW | ML:1,MR:2 This part replaces 02111-05158.

02112-05167

$1.97

19

SHAFT | ML

13550-47080

Unavailable

20

PIN | LH,ML,RH

13563-47070

Unavailable

21

SPRING | ML

13573-47080

Unavailable

22

LEVER | ML

13553-47070

Unavailable

23

LEVER | MR

13555-47070

Unavailable

24

SPRING | MR,RH

13573-47080

Unavailable

25

SHAFT | RH

13550-47090

Unavailable

26

SEAL This part replaces 13651-51010.

13651-51011

$2.20

27

E RING | LH,RH

13617-44080

$2.90

28

GASKET | LH,RH

13557-47070

$3.59

29

NUT | LH,ML,RH

13607-47070

$3.13

30

SCREW | LH,ML,RH

13605-47070

Unavailable

31

SCREW | MR

13605-44100

Unavailable

32

SCREW

13604-44080

$2.92

33

VALVE, THROTTLE (#140)

13551-47070

Unavailable

34

GASKET

13258-44080

Unavailable

35

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

$8.68

36

WASHER

13382-44030

$3.71

37

SPRING

13388-44030

$8.12

38

JET, PILOT (#40)

09492-40007

Unavailable

39

PLUG

13357-44080

$5.10

40

JET, NEEDLE (X-6)

09494-00264

Unavailable

41

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

42

JET, MAIN (#92.5)

09491-92004

$9.69

43

SCREW

13247-44080

$7.97

44

O RING

13246-44080

$2.80

45

FLOAT

13250-44080

$28.49

46

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

47

PLATE

13373-39110

$6.64

48

PIN

13254-92311

$2.07

49

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-44080.

13370-44500

$50.98

50

O RING This part replaces 13374-44080.

13374-35C00

$5.99

51

FILTER This part replaces 13376-44080.

13376-19F00

$10.28

52

SCREW | LH,RH:4,ML:3,MR:2 This part replaces 02112-05128.

02112-05127

$1.97

53

SPRING | LH,ML,RH

13268-44010

Unavailable

54

PIN | LH,ML,RH

13575-47070

Unavailable

55

BRACKET | MR

13627-47070

Unavailable

56

SPRING | MR

13271-93011

$5.32

57

ADJUSTER | MR

13267-47070

Unavailable

58

BUSH | MR

13276-31210

Unavailable

59

BRACKET | MR

13627-44090

Unavailable

60

PLATE | ML

13421-47070

Unavailable

61

BOLT | ML This part replaces 01104-05108.

01500-0510B

$1.80

62

LOCK WASHER | ML This part replaces 08321-21058.

08321-0105A

$1.84

63

CLIP, NEEDLE | ML This part replaces 13415-47070.

13394-10010

$5.45

64

WASHER | ML

13523-98010

Unavailable

65

LEVER | ML

13422-47070

Unavailable

66

BRACKET | ML

13624-47070

Unavailable

67

ROD | ML

13425-47070

Unavailable

68

:JET.PLLOT AIR (#150)

09493-30003

Unavailable

69

SCREW This part replaces 02112-05168.

02112-05167

$1.97

70

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

71

SHAFT | MR

13550-47100

Unavailable

72

WASHER | MR

13589-47070

$1.98

73

LEVER

13422-44080

Unavailable

74

SCREW

13605-47070

Unavailable

75

SHAFT

13410-47070

Unavailable

76

PLATE

13628-47070

Unavailable

77

SCREW This part replaces 02112-05088.

02112-05087

$1.49

78

HOSE(4.5X8.5X60 This part replaces 13683-31610.

09355-45001-600

$9.48

79

NIPPLE

13685-47070

$28.65

80

HOSE(6X10X600) This part replaces 13683-47070.

09352-60104-600

$8.99

81

NIPPLE

13685-47080

Unavailable

82

SCREW This part replaces 02112-06128.

02112-06127

$1.84

83

NIPPLE

13685-47090

Unavailable
