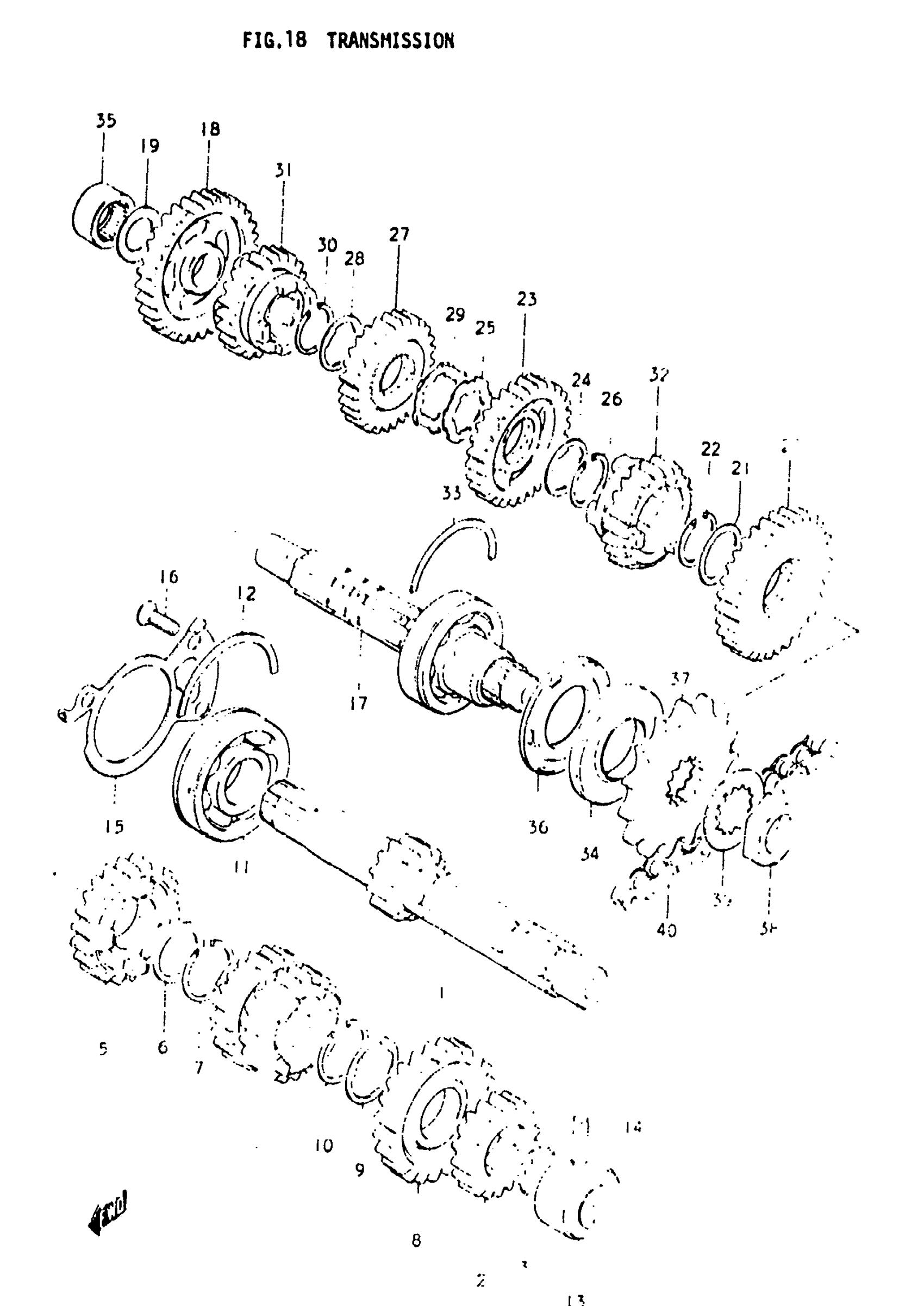

Suzuki GS550L (1979) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | NT:12

24121-47001

Unavailable

2

GEAR, 2ND DRIVE | NT:18

24221-47000

Unavailable

3

CIRCLIP

09380-25006

Unavailable

4

GEAR, 3RD DRIVE | NT:21/23

24231-47000

Unavailable

5

GEAR, 5TH DRIVE | NT:22

24250-47000

Unavailable

6

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$3.12

7

CIRCLIP

09380-25010

$2.91

8

GEAR, 6TH DRIVE | NT:23

24261-47000

Unavailable

9

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

10

CIRCLIP

09380-25010

$2.91

11

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

12

C RING This part replaces 09390-62006.

09390-62012

$7.31

13

NO DESCRIPTION AVAILABLE This part replaces 09263-20029.

09263-20030

Unavailable

14

PIN

04221-07129

$1.86

15

HOLDER, BEARING

24741-44000

Unavailable

16

SCREW This part replaces 02122-06168.

02122-06167

$1.49

17

DRIVESHAFT This part replaces 24100-44810.

24100-44811

Unavailable

18

GEAR, 1ST DRIVE | NT:32

24310-47000

Unavailable

19

WASHER

08211-20341

$2.80

20

GEAR, 2ND DRIVE | NT:32

24320-44002

Unavailable

21

WASHER

08211-25321

$3.27

22

CIRCLIP

09380-25010

$2.91

23

GEAR, 3RD DRIVE | NT:29

24330-47000

Unavailable

24

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

25

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

26

CIRCLIP

09380-25010

$2.91

27

GEAR,4TH DRIVEN

24340-47000

Unavailable

28

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

29

LOCK WASHER

09169-25001

$2.70

30

CIRCLIP

09380-25010

$2.91

31

GEAR,5TH DRIVEN | NT:23

24351-47001

Unavailable

32

GEAR, 6TH DRIVEN (NT:22) | NT:22 This part replaces 24361-47000.

24361-47001

Unavailable

33

C RING This part replaces 09390-62006.

09390-62012

$7.31

34

OIL SEAL (32x62x70-1) This part replaces 09283-32014.

09283-32015

$15.74

35

BEARING, RH (20X34X17) This part replaces 09263-20028.

09263-20027

Unavailable

36

OIL SEAL

09282-32002

$11.65

37

SPROCKET, ENG 1 | NT:15,#530 This part replaces 27511-47000.

27511-47B00

$40.28

38

NUT

09140-20009

Unavailable

39

WASHER (25.3X41.6X1) This part replaces 09167-25011.

09167-25019

$2.19

40

NO DESCRIPTION AVAILABLE | 110L This part replaces 27600-47010.

27600-17C20-110

Unavailable
