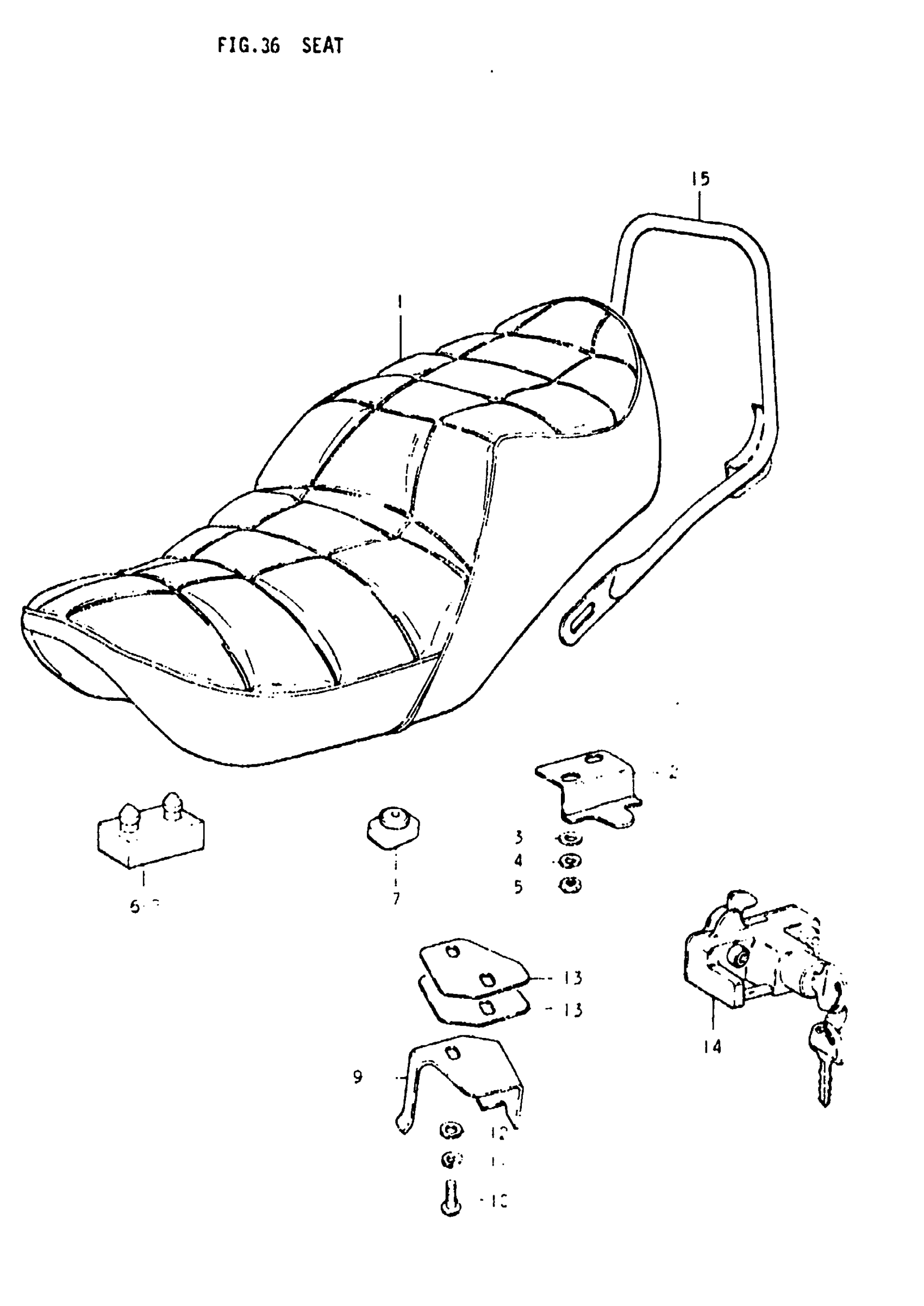

Suzuki GS550L (1979) SEAT Diagram

#

Description
Price

1

SEAT | Includes Item(s) 2 - 5

45100-47200-40N

Unavailable

2

PLATE, SEAT HOOK

45118-45200

Unavailable

3

WASHER This part replaces 08322-21068.

08322-01067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

.NUT This part replaces 08310-11068.

08310-00067

$2.13

6

CUSHION

09321-08006

$2.90

7

CUSHION

09329-10001

$2.12

8

CUSHION

09321-08010

$3.85

9

STRIKER, SEAT LOCK

45213-49100

Unavailable

10

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER

09160-06019

$1.49

13

PLATE

45217-49100

Unavailable

14

LOCK ASSY, SEAT This part replaces 95700-49810.

95700-49811

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 46210-47200.

46210-47201

Unavailable
