1979 Suzuki GS550L OIL PAN Diagram

← All diagrams

Find the part on the OIL PAN diagram for your 1979 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

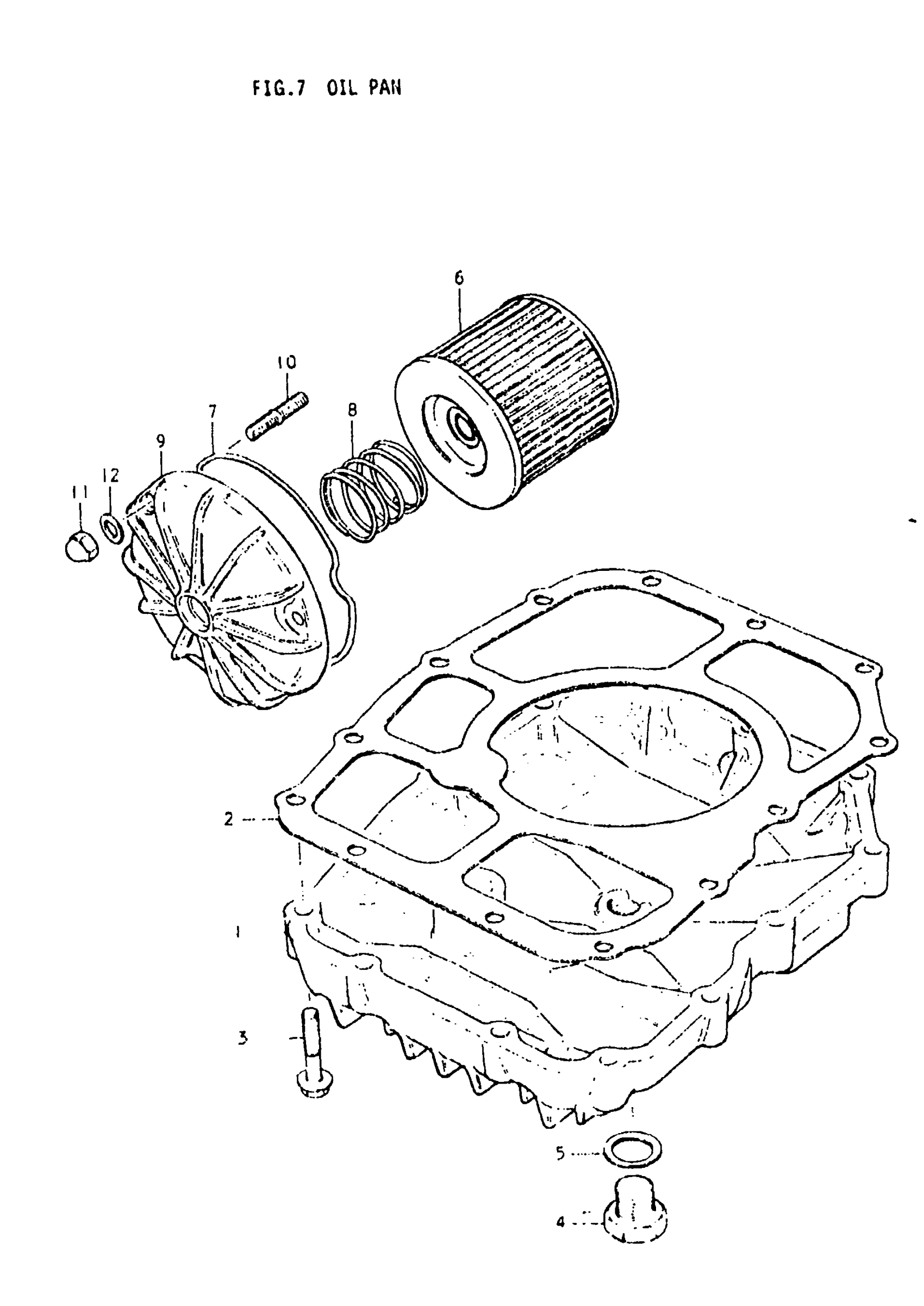

1979 Suzuki GS550L OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PAN, OIL This part replaces 11511-47000.

11511-47001

1
Out of stock

2

GASKET,OIL PAN( This part replaces 11489-47000.

11489-47000-H17

1
Out of stock

3

BOLT This part replaces 01517-06308.

01550-06307

13
Out of stock

4

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

5

GASKET

09168-14004

1
Out of stock

6

FILTER, ENGINE OIL

16510-45040

1
Out of stock

7

O RING

16518-45000

1
Out of stock

8

SPRING

09440-32004

1

$3.22

In stock

9

CAP, ENGINE OIL FILTER This part replaces 16512-45100.

16512-45101

1
Out of stock

10

STUD BOLT This part replaces 01421-06208.

01421-0620A

3
Out of stock

11

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

3
Out of stock

12

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock
