1979 Suzuki GS550L Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1979 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

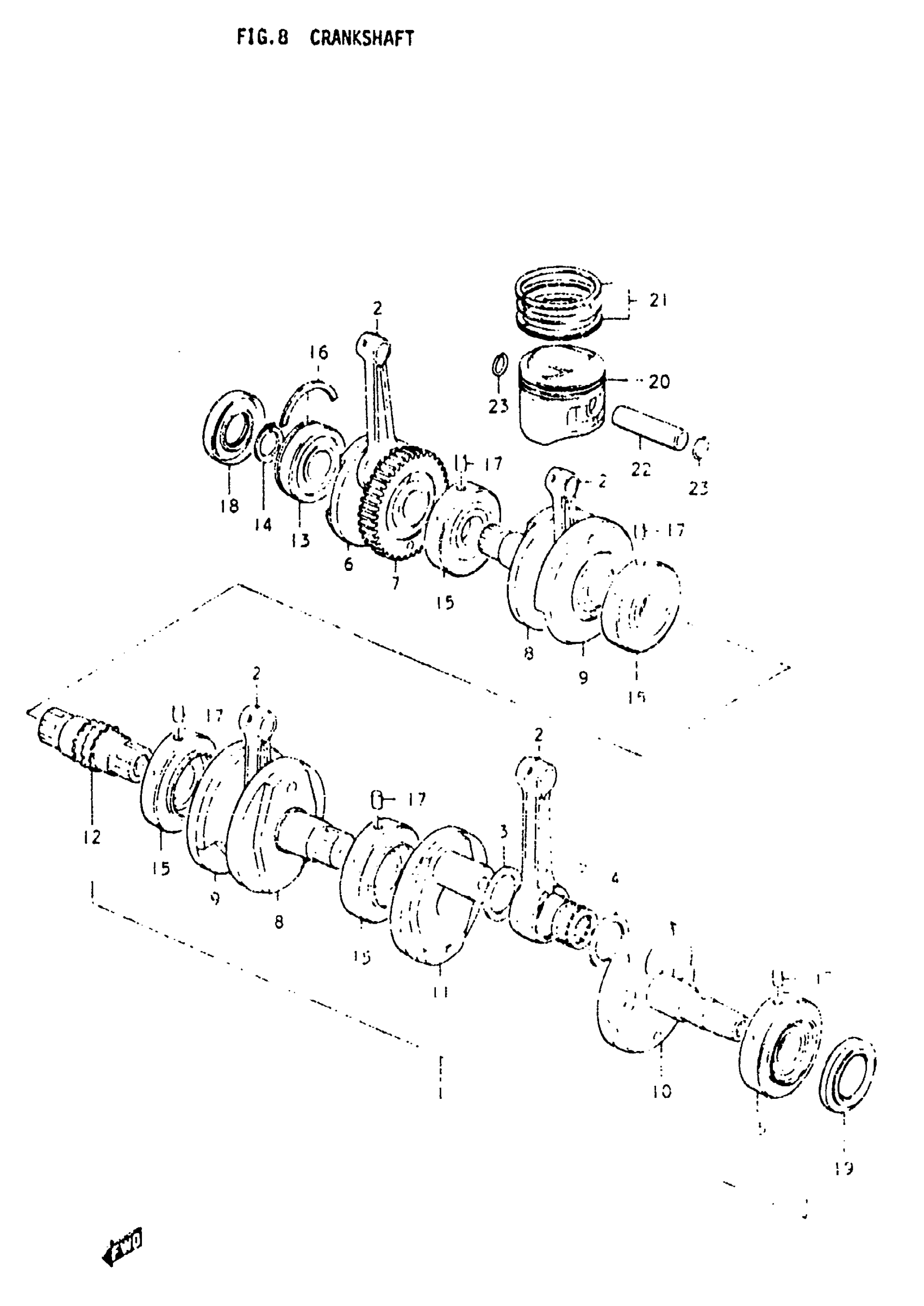

1979 Suzuki GS550L Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 15 This part replaces 12200-47011.

12200-47014

1
Out of stock

2

ROD, CONNECTING

12161-47001

4
Out of stock

3

WASHER | 28x48x2

09160-28009

4
Out of stock

4

WASHER | 28x48x1

09160-28010

4
Out of stock

5

BEARING | 28x38x17

09263-28006

4
Out of stock

6

CRANKSHAFT, RH

12220-47001

1
Out of stock

7

WEB, CRANKSHAFT RH (NT:44) This part replaces 12230-47011.

12230-34500

1
Out of stock

8

CRANKSHAFT, MIDDLE This part replaces 12241-47002.

12241-34500

2
Out of stock

9

WEB, CRANKSHAFT MIDDLE This part replaces 12250-47001.

12250-34500

2
Out of stock

10

CRANKSHAFT, LH This part replaces 12261-47001.

12261-34500

1
Out of stock

11

WEB, CRANKSHAFT LH This part replaces 12290-47001.

12290-34500

1
Out of stock

12

SHAFT, CHAIN DRIVE (NT:15) | NT 15 This part replaces 12281-47001.

12281-34500

1
Out of stock

13

BEARING, RH

09262-30033

1
Out of stock

14

CIRCLIP This part replaces 08331-11308.

08331-31309

1
Out of stock

15

BEARING This part replaces 09264-32002.

09264-32009

5
Out of stock

16

C RING, BEARING RH

09390-72004

1
Out of stock

17

PIN

04221-07129

1
Out of stock

18

OIL SEAL, RH

09283-30021

1
Out of stock

19

OIL SEAL, STARTER CLUTCH GEAR | 48x60x6 This part replaces 09289-48001.

09289-48002

1
Out of stock

20

PISTON (STD) This part replaces 12111-47000.

12111-47001

4
Out of stock

20

NO DESCRIPTION AVAILABLE This part replaces 12111-47000-100.

12103-47830-100

4
Out of stock

21

PISTON RING SET

12140-47031

4
Out of stock

21

PISTON RING SET

12140-47031-050

4
Out of stock

21

PISTON RING SET

12140-47031-100

4
Out of stock

22

PIN, PISTON

12151-08001

4
Out of stock

23

SNAP RING This part replaces 09381-16002.

09381-16001

8
Out of stock
