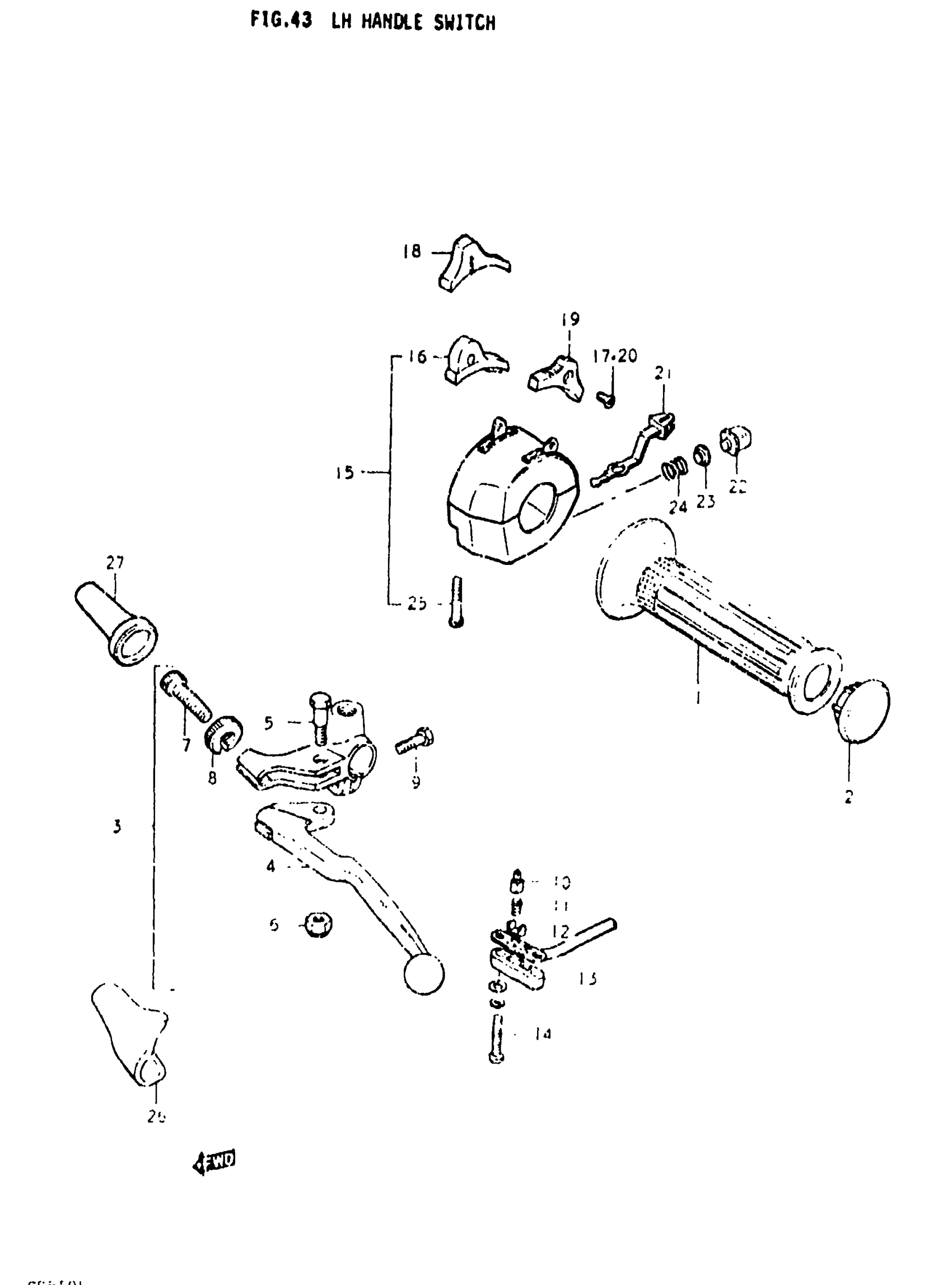

Suzuki GS550L (1979) LH HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH | L:130, 00:33 This part replaces 57211-44100.

57211-49500

$13.95

2

CAP, GRIP END LH

57216-49100

Unavailable

3

LEVER ASSY,CLUT | Includes Item(s) 4 - 14 This part replaces 57500-49110.

57500-49301

Unavailable

4

LEVER, CLUTCH This part replaces 57620-49110.

57620-49111

$23.23

5

BOLT This part replaces 57431-11010.

57431-11013

$6.31

6

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

7

ADJUSTER, CABLE

57441-11010

$5.62

8

NOT

57442-11010

$2.79

9

BOLT This part replaces 01107-06208.

01500-06207

$2.28

10

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

11

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

12

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

13

COVER This part replaces 57481-18600.

57481-33010

$5.84

14

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

15

SWITCH ASSY, HANDLE LH. | Includes Item(s) 16 - 25

37400-45603

Unavailable

16

KNOB, STOPPER

37414-45602

Unavailable

17

SCREW This part replaces 02122-03068.

02122-03067

$1.80

18

KNOB, LIGHTENING | OPT

37411-45012

$5.24

19

KNOB, DIMMER SWITCH

37421-45012

$6.17

20

SCREW This part replaces 02122-03068.

02122-03067

$1.80

21

KNOB,TURN SIGNAL LAMP SWITCH

37513-45011

$7.22

22

BUTTON, HORN

57371-45000

$4.52

23

CONTACT

57372-45000

$4.45

24

SPRING

57382-45000

$3.37

25

SCREW This part replaces 02112-05258.

02112-05257

$1.49

26

COVER, CLUTCH LEVER

57661-31000

$7.25

27

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22
