1979 Suzuki GS550L Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1979 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

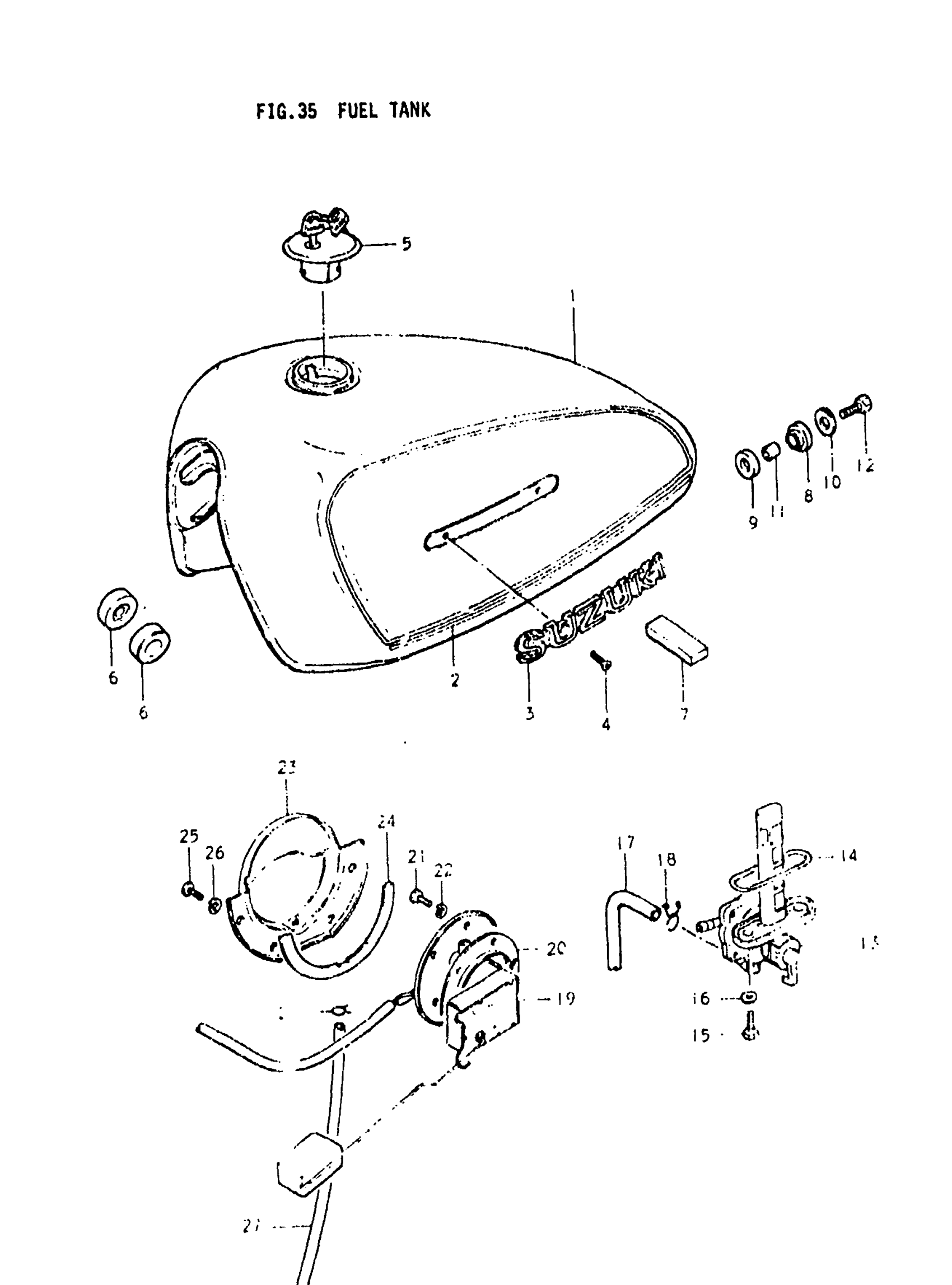

1979 Suzuki GS550L Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | TO: 44100-45201-019 This part replaces 44100-45201-019.

44110-47200-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | TO: 44100-45201-05L; Includes Item(s) 2 This part replaces 44100-45201-05L.

44110-47200-13L

1
Out of stock

2

FULL, TANK STRIPING TAPE SET | USE WITH THE ABOVE

68102-45810-764

1
Out of stock

4

SCREW This part replaces 02132-03065.

02122-0306B

4
Out of stock

5

1

$105.35

In stock

6

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

7

CUSHION, CENTER

44541-47000

1
Out of stock

8

CUSHION, REAR NO.1

09320-12013

1

$2.92

In stock

9

CUSHION, REAR NO.2

09320-12012

1
Out of stock

10

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

1
Out of stock

11

SPACER

09180-08007

1

$2.95

In stock

12

1

$2.94

In stock

13

COCK ASSY, FUEL | Includes Item(s) 14

44300-45270

1
Out of stock

14

1

$2.92

In stock

15

2

$1.77

In stock

16

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

2
Out of stock

17

1

$14.90

In stock

18

CLIP

09401-10403

2

$1.80

In stock

19

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 20 This part replaces 34810-45200.

34810-45300

1
Out of stock

20

GASKET

34825-45100

1
Out of stock

21

5

$2.32

In stock

22

LOCK WASHER This part replaces 08321-21056.

08321-0105A

5
Out of stock

23

PLATE This part replaces 34885-49001.

34885-49005

1
Out of stock

24

GASKET,FUEL DRA This part replaces 34888-49000.

34888-49001

1
Out of stock

25

4

$2.23

In stock

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

27

1

$13.49

In stock

28

CLIP

09401-08402

1

$1.49

In stock
