1979 Suzuki GS550L AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1979 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

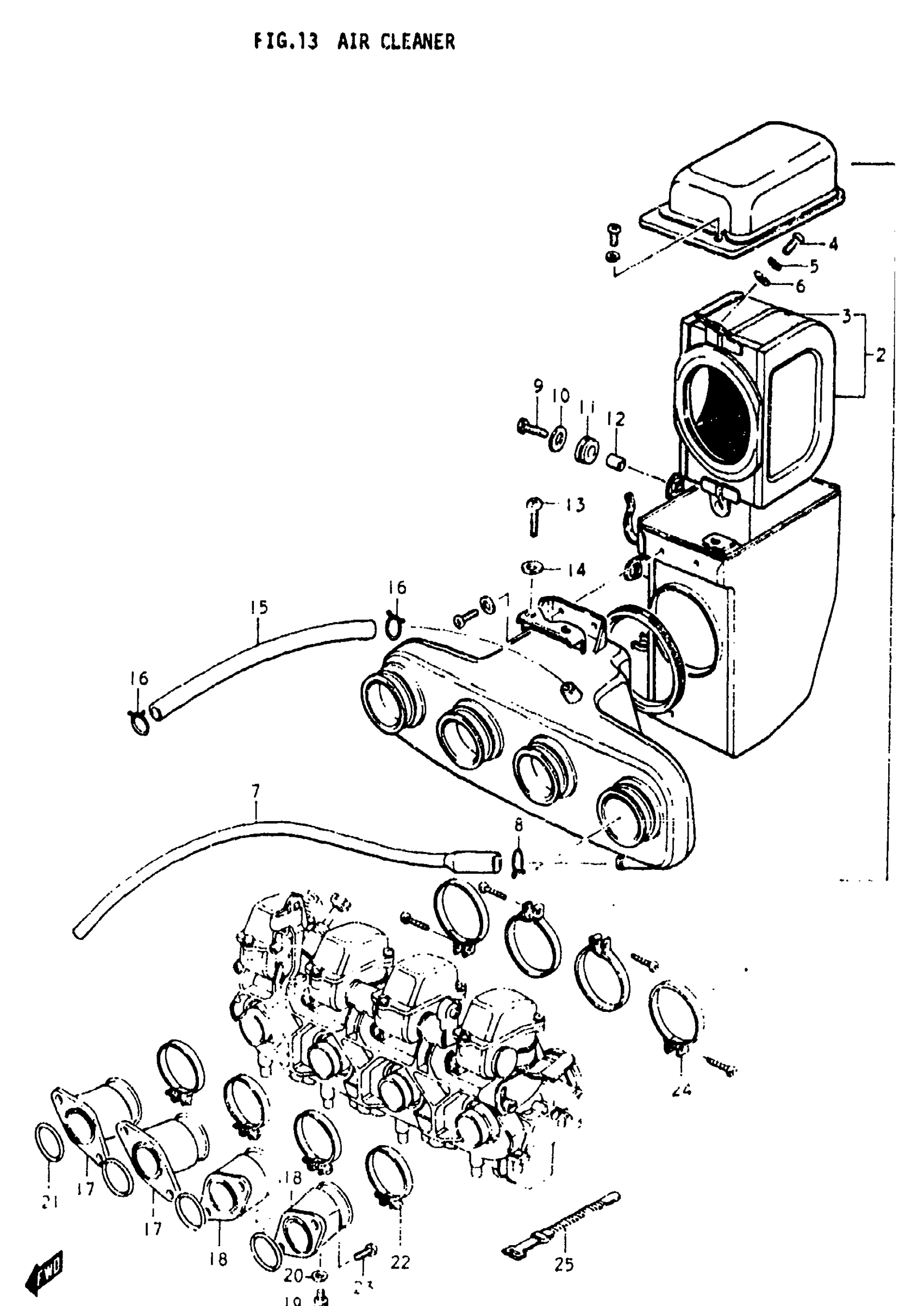

1979 Suzuki GS550L AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 8

13700-47020

1
Out of stock

2

FILTER ASSY

13780-47010

1
Out of stock

3

ELEMENT This part replaces 13781-47010.

13781-47030

1
Out of stock

4

SCREW This part replaces 02112-05108.

02112-05107

1
Out of stock

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

6

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

7

HOSE, DRAIN

13791-47010

1
Out of stock

8

CLIP This part replaces 13795-44010.

09401-14301

1
Out of stock

9

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

10

WASHER This part replaces 09160-06007.

09160-06084

1
Out of stock

11

1

$2.23

In stock

12

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

1
Out of stock

13

SCREW This part replaces 02112-06126.

02112-0612A

1
Out of stock

14

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

15

HOSE,11X15X2000 This part replaces 09343-11001.

09352-11154-00B

1
Out of stock

16

CLIP

09401-14301

2
Out of stock

17

PIPE,INTAKE,R This part replaces 13110-47001.

13110-47002

2
Out of stock

18

PIPE,INTAKE LH This part replaces 13120-47001.

13120-47002

2
Out of stock

19

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

4
Out of stock

20

WASHER This part replaces 08322-21058.

08322-01057

4
Out of stock

21

O RING

09280-28003

4
Out of stock

22

CLAMP This part replaces 09402-42306.

09402-42303

4
Out of stock

23

SCREW This part replaces 02112-06168.

02112-06167

8
Out of stock

24

CLAMP This part replaces 09402-48306.

09402-48208

4
Out of stock

25

CLAMP,CARB. OVERFLOW HOSE

09407-12402

1
Out of stock
