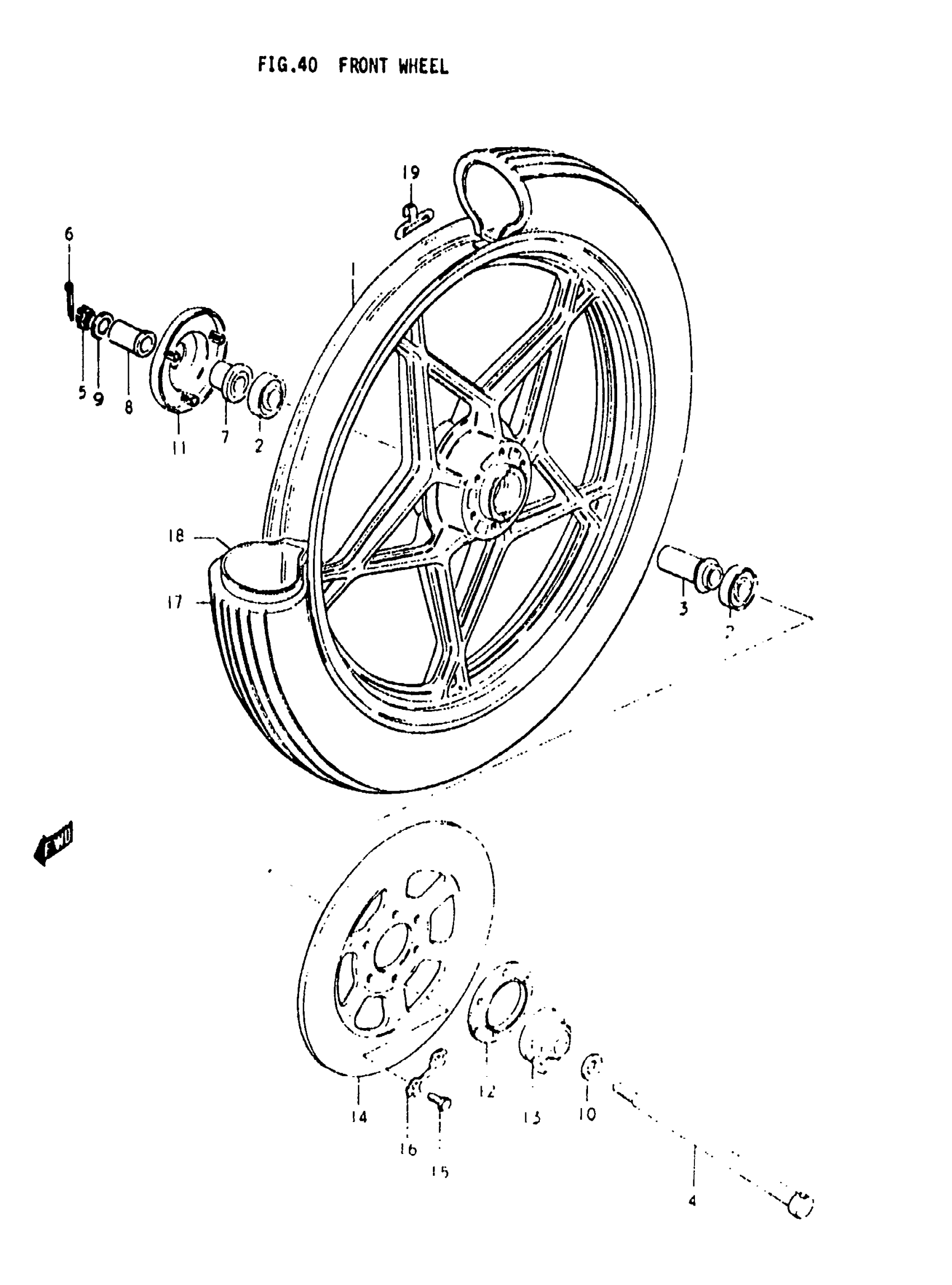

Suzuki GS550L (1979) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | 1.85x19 This part replaces 54111-47604.

54111-49350-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE, FRONT

54711-49000

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BOARING RH | OD:22

54740-18402

Unavailable

8

SPACER, AXLE RH

54741-49101

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

WASHER

09160-15002

$1.91

11

COVER, RH

54871-45000

$8.98

12

COVER, LH

54871-45010

Unavailable

13

BOX ASSY,SPEEDO This part replaces 54600-49100.

54600-49101

$105.57

14

DISK FRONT BRAKE

59211-47000

Unavailable

15

BOLT

09100-08140

$2.10

16

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

17

TIRE | 3.25H19

55100-45030

Unavailable

18

TUBE | 3.25-19 This part replaces 55200-15010.

55200-44611

$33.73

19

BALANCER,S | (0~3)

55411-47001

Unavailable

19

BALANCER,L | (0~3)

55412-47001

Unavailable
