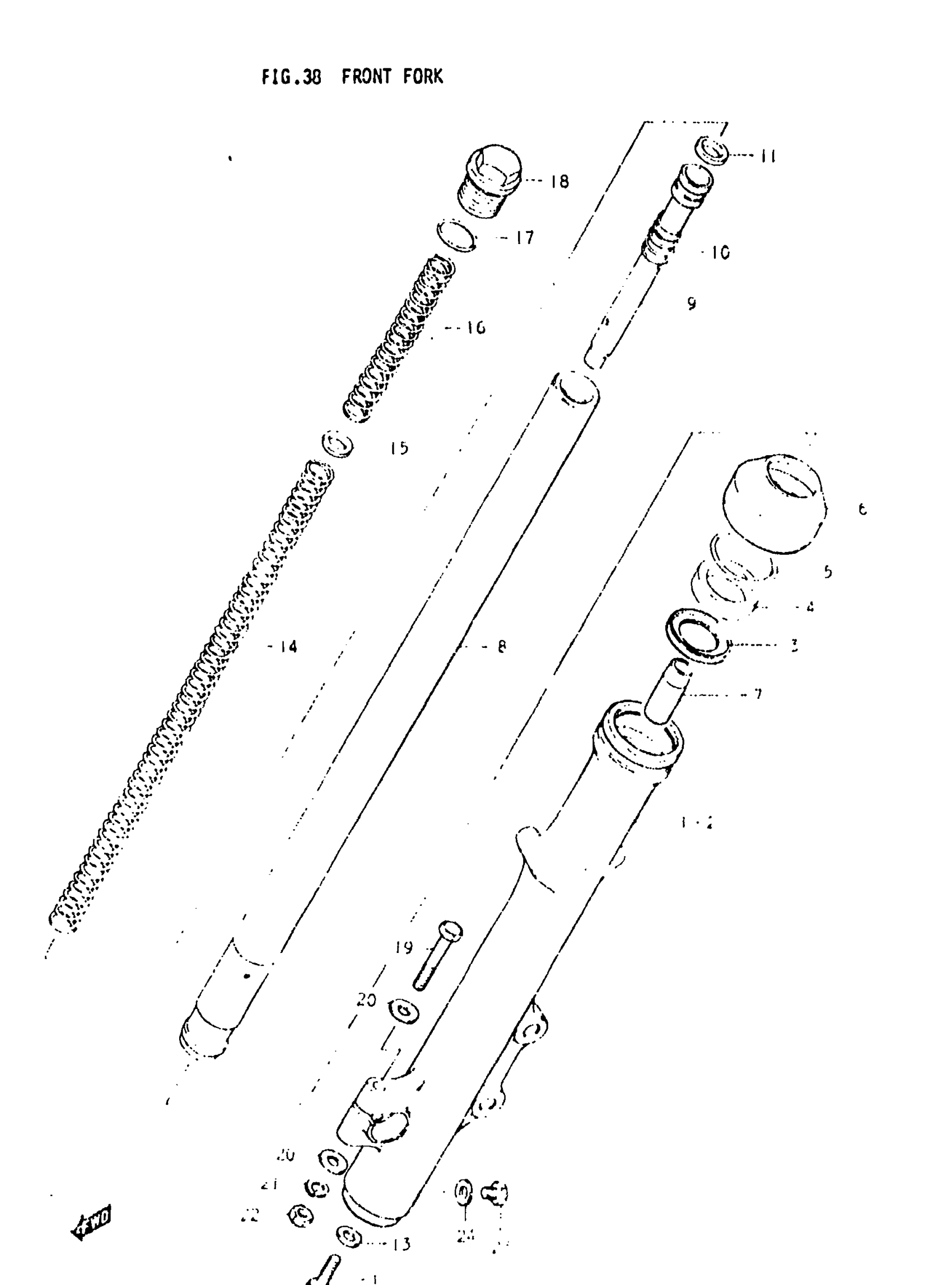

Suzuki GS550L (1979) FRONT FORK Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE This part replaces 51103-47200.

51103-34410

Unavailable

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 24 This part replaces 51104-47200.

51104-34410

Unavailable

1

OUTER TUBE, RH

51130-47200

Unavailable

2

OUTER TUBE, LH This part replaces 51140-47200.

51140-47201

Unavailable

3

SPACER, SEAL This part replaces 51168-45031.

51168-30B00

$6.31

4

SEAL, OIL This part replaces 51153-45030.

51153-19D10

$22.96

5

RING, STOPPER This part replaces 51156-31231.

51156-01A00

$4.34

6

DUST SEAL This part replaces 51571-31232.

51571-20520

Unavailable

7

PIECE, OIL LOCK

51195-45030

Unavailable

8

INNER TUBE

51110-47200

Unavailable

9

PIPE, SEAL

51146-47200

Unavailable

10

SPRING, REBOUND

51177-45030

Unavailable

11

RING,PISTON

51196-31230

Unavailable

12

BOLT

51147-48130

$4.34

13

O RING This part replaces 51148-31030.

51148-36011

$3.56

14

SPRING, MAIN ROW

51184-47200

Unavailable

15

WASHER, SPRING JOINT

51192-47200

Unavailable

16

SPRING, MAIN UPPER

51171-45030

Unavailable

17

O RING This part replaces 51117-31030.

51181-31030

$4.37

18

BOLT

51351-31030

Unavailable

19

BOLT This part replaces 01107-08508.

01500-08507

$3.05

20

WASHER This part replaces 08322-21088.

08322-01087

$2.13

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

NUT This part replaces 08310-12088.

08310-00087

$2.13

23

BOLT This part replaces 01107-06108.

01500-06107

$2.06

24

GASKET

51183-31030

$3.77
