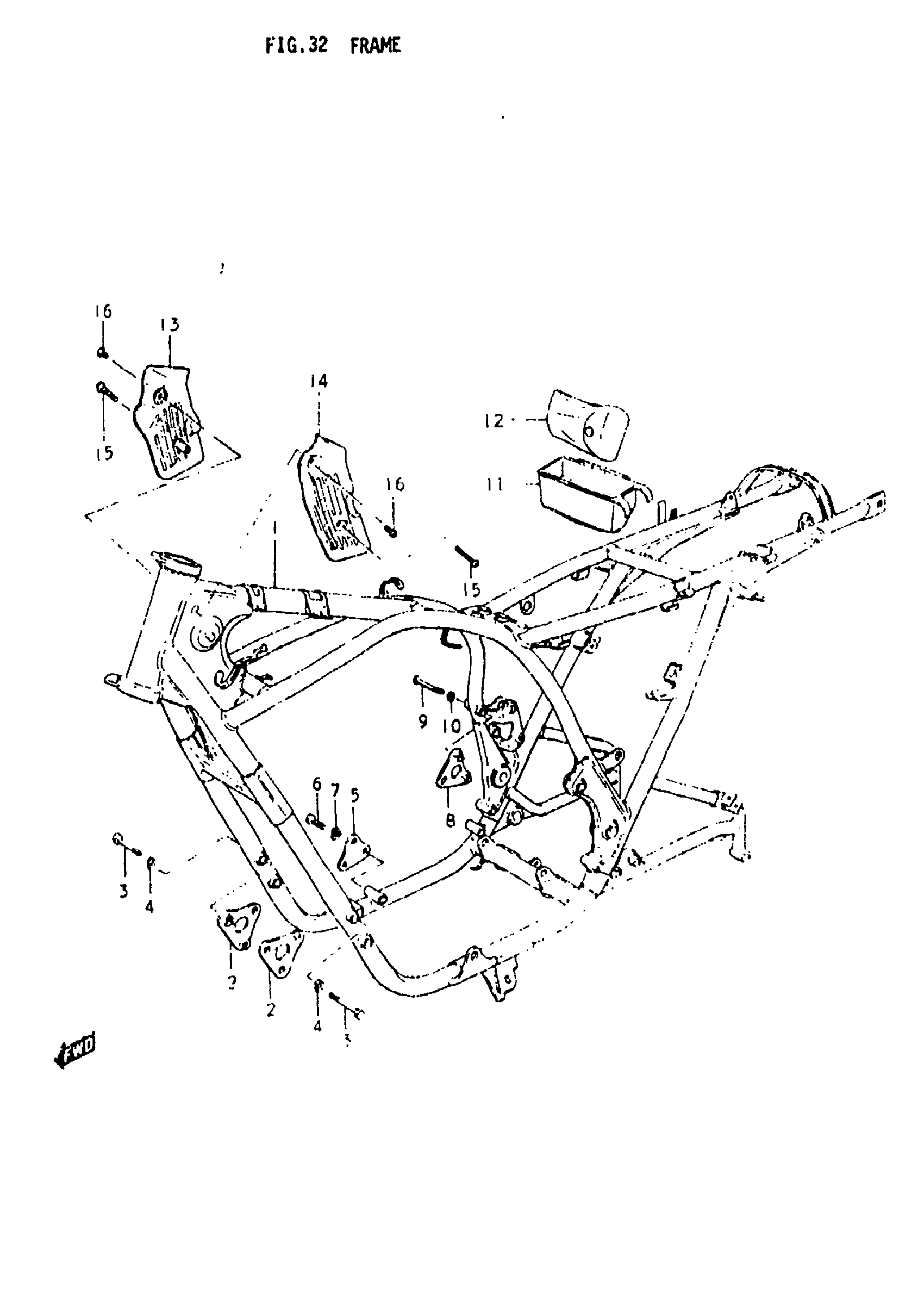

Suzuki GS550L (1979) FRAME Diagram

#

Description
Price

1

FRAME

41100-47200-019

Unavailable

2

PLATE, ENGINE MOUNTING NO.1

41910-47000-019

Unavailable

3

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, ENGINE MOUNTING NO.2

41993-47000-019

Unavailable

6

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, NO.3 (BLACK) This part replaces 41990-47000-019.

41990-47001-019

Unavailable

9

BOLT This part replaces 01107-08558.

01500-08557

$3.16

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

HOLDER, TOOL

41551-47000

Unavailable

12

TOOL SET This part replaces 09800-00193.

09800-06801

Unavailable

13

COVER, FRAME HEAD, RH

51876-45200

Unavailable

14

COVER, FRAME HEAD, LH

51886-45200

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 02142-05505.

02142-05503

Unavailable

16

SCREW, UPPER

02142-05107

$1.49
