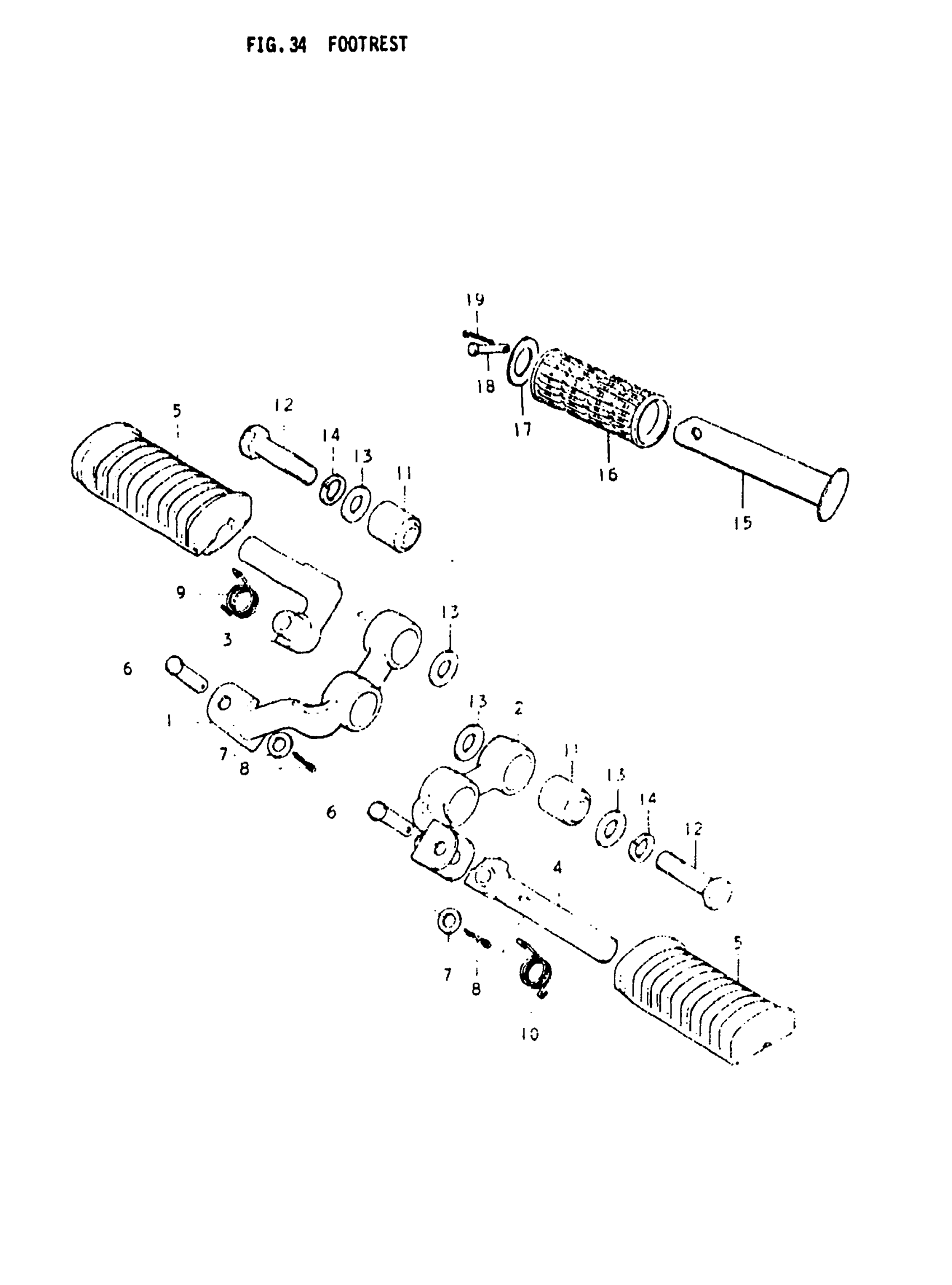

Suzuki GS550L (1979) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-47010-019

Unavailable

2

BAR, FRONT FOOTREST LH

43520-47010-019

Unavailable

3

BAR, RH

43516-45010

Unavailable

4

BAR, LH

43526-45010

Unavailable

5

RUBBER

43551-45010

Unavailable

6

PIN

09200-08029

Unavailable

7

WASHER This part replaces 08322-11088.

08322-01087

$2.13

8

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

9

SPRING, RH This part replaces 09448-19007.

09448-19010

Unavailable

10

SPRING, LH This part replaces 09448-19008.

09448-19011

Unavailable

11

BUSHING

09319-10008

$7.40

12

BOLT (10X38) This part replaces 09104-10007.

09104-10029

$3.55

13

WASHER This part replaces 09160-10013.

09160-10123

$2.12

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

15

BAR, PILLION FOOTREST

43610-03001

$6.52

16

RUBBER, PILLION FOOTREST This part replaces 43612-47000.

43612-33210

$5.83

17

WASHER This part replaces 09160-19006.

09160-19024

$2.65

18

PIN

09200-06010

$1.72

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
