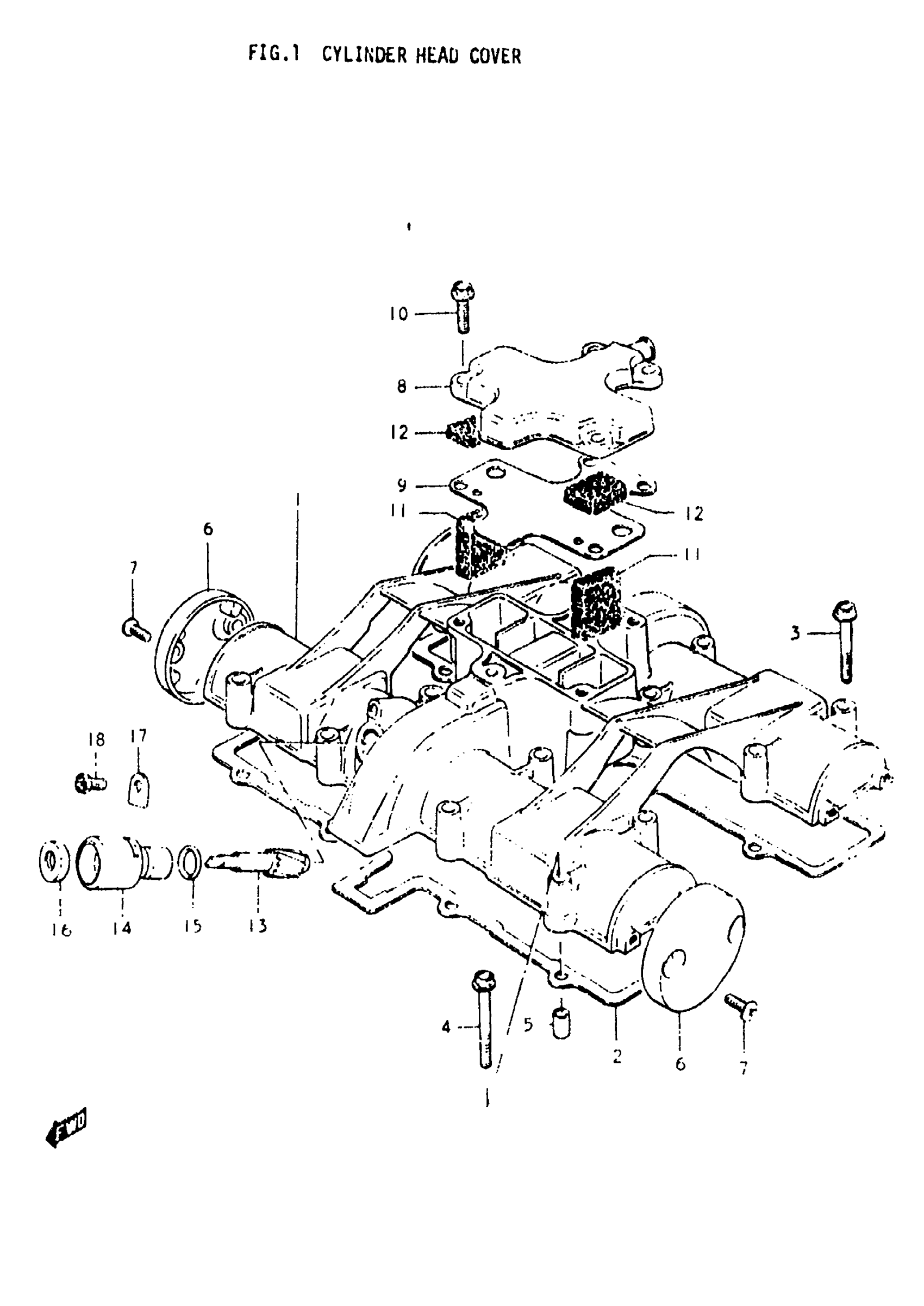

Suzuki GS550L (1979) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD This part replaces 11171-47000.

11171-47001

Unavailable

2

GASKET,CYL HEAD This part replaces 11173-47001.

11173-47004-H17

Unavailable

3

BOLT This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

5

PIN

09206-08001

$1.78

6

CAP, CYLINDER HEAD COVER SIDE

11174-49000

Unavailable

7

SCREW This part replaces 02132-05128.

02122-05127

$1.93

8

COVER, BREATHER This part replaces 11176-47000.

11176-47042

Unavailable

9

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$14.97

10

BOLT This part replaces 01517-06208.

01550-06207

$2.30

11

SEPARATOR,OIL B | 34x11 This part replaces 11186-45000.

11186-45001

Unavailable

12

SEPARATOR,OIL B | 35x68 This part replaces 11187-45000.

11187-45001

Unavailable

13

GEAR TACHO DRVN | NT:10 This part replaces 26431-47002.

26431-47003

Unavailable

14

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

15

SEAL BANT

26451-45000

$5.05

16

OIL SEAL | 5x1.8

09289-05002

$8.43

17

PLATE, GEAR SLEEVE

26449-33000

$4.35

18

SCREW

09128-05101

$1.49
