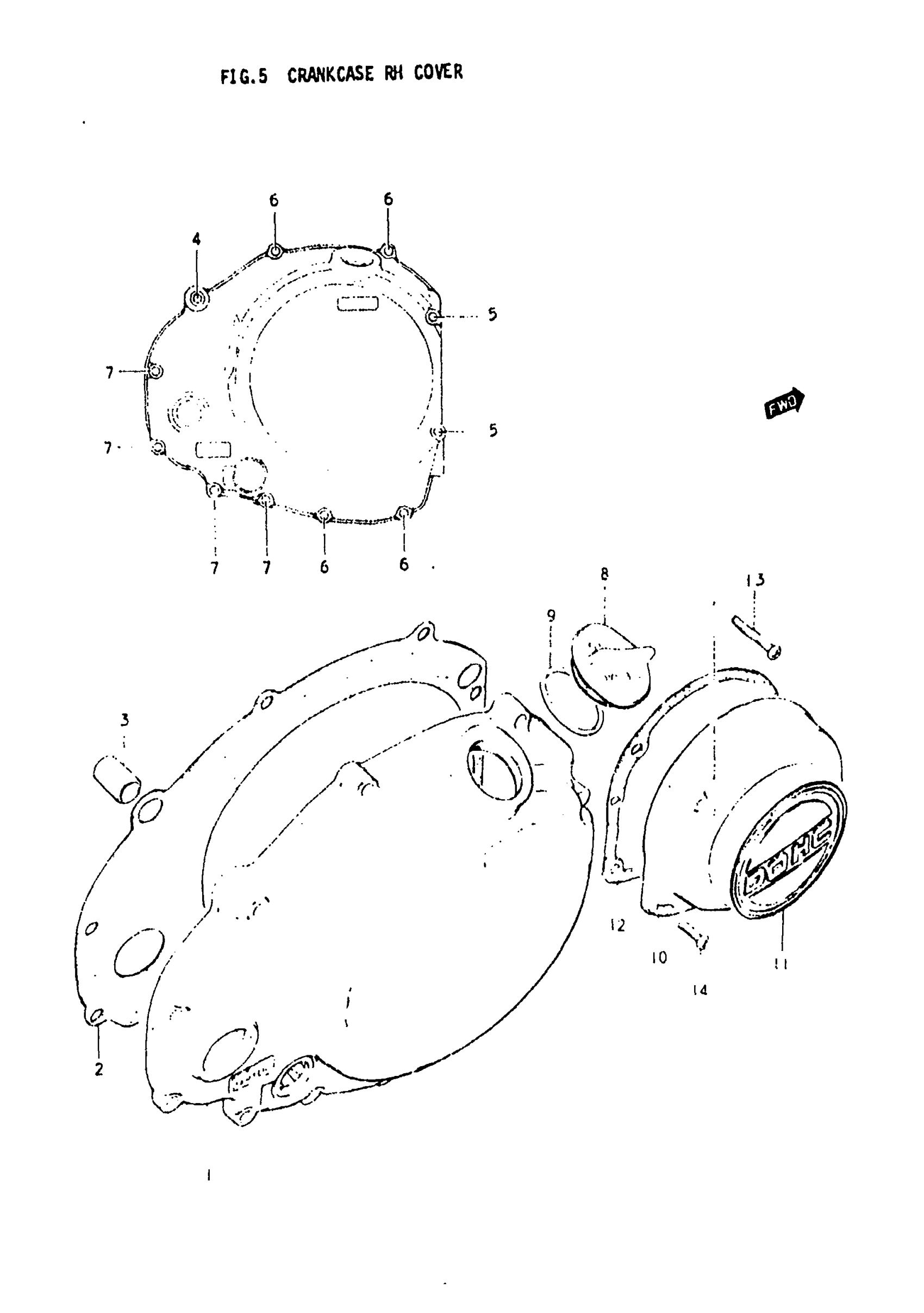

Suzuki GS550L (1979) CRANKCASE RH COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11340-47000.

11340-47001

Unavailable

2

GASKET,CL COVER This part replaces 11482-47000.

11482-47000-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

6

SCREW This part replaces 02112-06258.

02112-06257

$1.78

7

SCREW This part replaces 02112-06208.

02112-06207

$1.78

8

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

9

O RING

09280-32005

$1.99

10

COVER, CONTACT BREAKER This part replaces 11381-47001.

11381-47002

Unavailable

11

EMBLEM | "DOHC"

68235-47200

Unavailable

12

GASKET

11491-47000

$3.85

13

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

14

SCREW This part replaces 02112-05168.

02112-05167

$1.97
