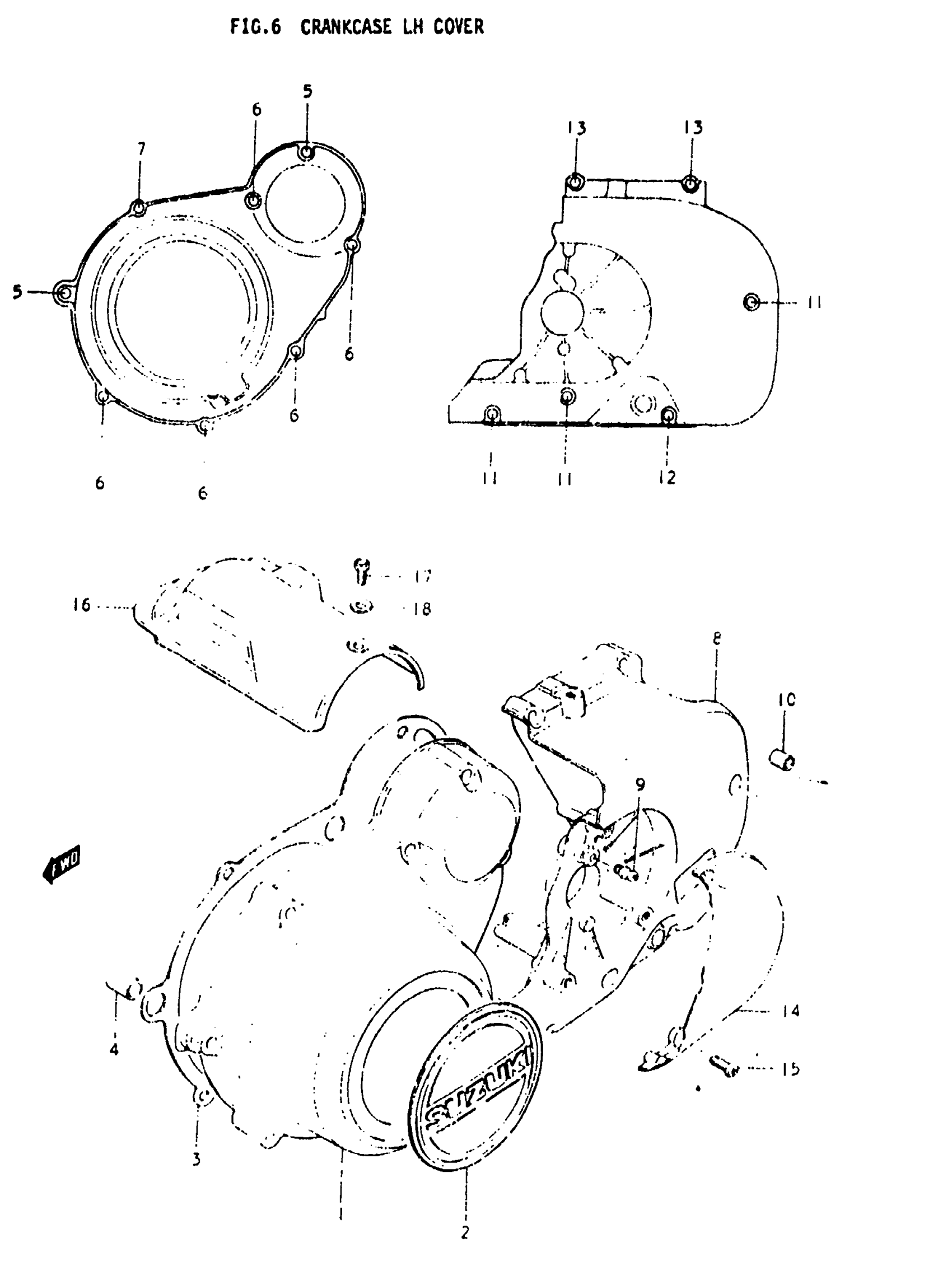

Suzuki GS550L (1979) CRANKCASE LH COVER Diagram

#

Description
Price

1

COVER, GENERATOR This part replaces 11351-47000.

11351-47001

Unavailable

2

EMBLEM

68233-45200

$18.50

3

GASKET,MAGCOVER This part replaces 11483-47000.

11483-47000-H17

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

7

SCREW This part replaces 02112-06358.

02112-06357

$1.78

8

COVER SET, ENGINE SPROCKET | Includes Item(s) 9 This part replaces 11300-47820.

11300-47822

Unavailable

9

GREASE NIPPLE

08351-11009

$7.51

10

PIN

04211-09129

$1.65

11

SCREW This part replaces 02112-06908.

02112-06907

$3.16

12

SCREW This part replaces 02112-06808.

02112-06807

$2.57

13

SCREW This part replaces 02112-06308.

02112-06307

$1.97

14

CAP, CLUTCH RELEASE This part replaces 11387-47000.

11387-47001

Unavailable

15

SCREW This part replaces 02112-05168.

02112-05167

$1.97

16

COVER, STARTER MOTOR This part replaces 11382-47000.

11382-47001

Unavailable

17

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13
