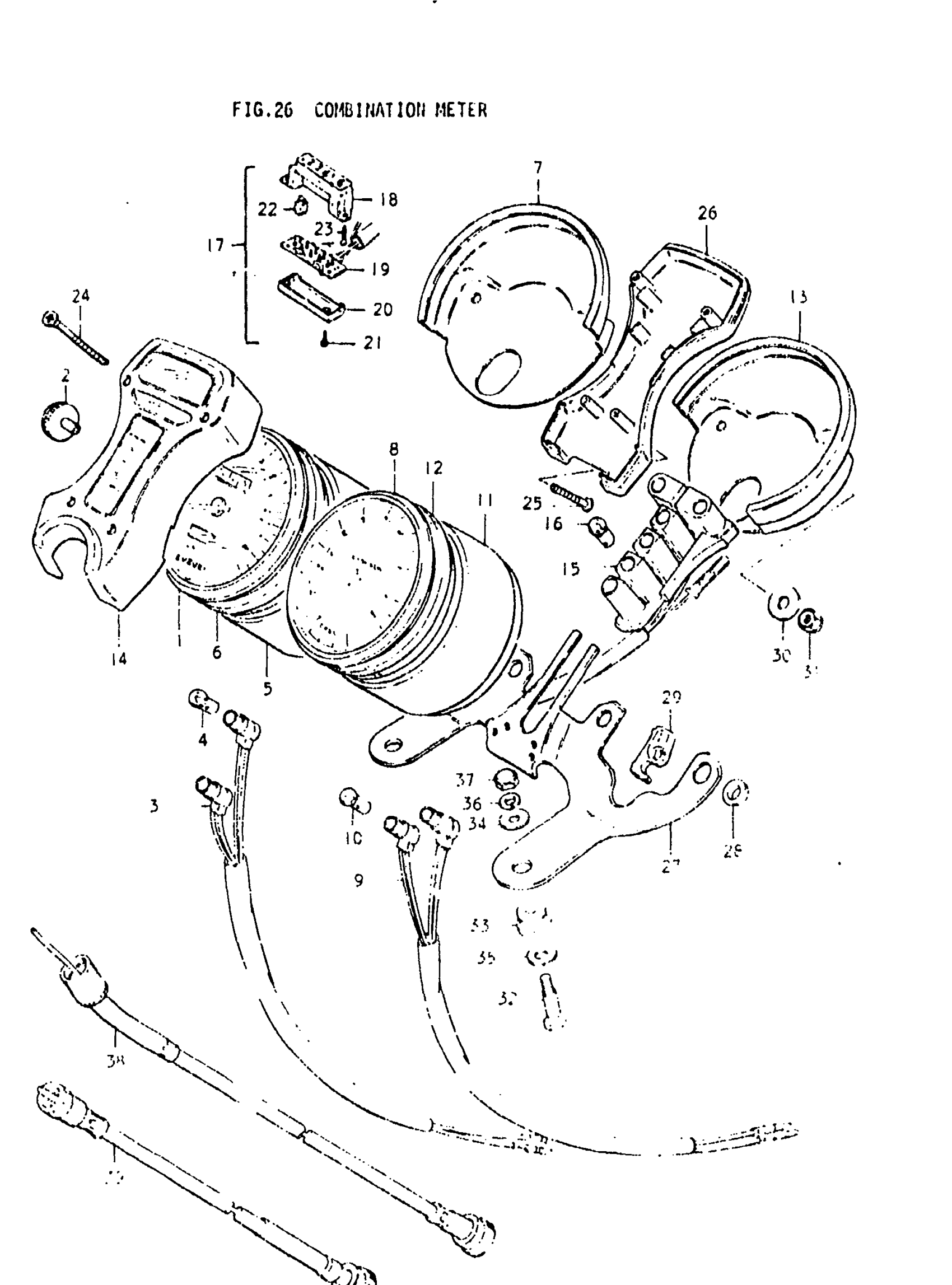

Suzuki GS550L (1979) COMBINATION METER Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 31 This part replaces 34100-47210.

34100-49111

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 34110-45210.

34110-49111

Unavailable

2

KNOB

34124-49100

Unavailable

3

SOCKET

34173-49100

Unavailable

4

BULB | 12V, 3.4 W

09471-12001

$1.65

5

COVER, SPEEDOMETER

34151-49100

Unavailable

6

CUSHION

34189-49100

Unavailable

7

COVER, UNDER

34193-49100

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 34210-47200.

34210-49140

Unavailable

9

SOCKET

34273-49100

Unavailable

10

BULB | 12V, 3.4N

09471-12001

$1.65

11

COVER, TACHOMETER

34251-49100

Unavailable

12

CUSHION

34189-49100

Unavailable

13

COVER, UNDER

34293-49100

Unavailable

14

BOX, PILOT

36380-49100

Unavailable

15

SOCKET

36325-49100

Unavailable

16

BULB | 12V, 3.4W

09471-12001

$1.65

17

INDICATOR, GEAR POSITION This part replaces 36450-47622.

36450-47751

Unavailable

18

CASE

36452-45100

Unavailable

19

PIN BOARL

36453-47620

Unavailable

20

COVER, LOWER

36454-45100

Unavailable

21

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

22

BULB

09471-12071

$7.20

23

INDICATOR ASSY,GEAR POSITION

36457-45100

Unavailable

24

SCREW

36387-49100

Unavailable

25

SCREW

02132-04305

Unavailable

26

COVER, UNDER

36383-49100

Unavailable

27

BRACKET

34950-49100

Unavailable

28

CUSHION

34956-45020

Unavailable

29

CUSHION

34956-45020

Unavailable

30

WASHER

09160-11057

Unavailable

31

NUT This part replaces 08313-11057.

08313-1005A

$1.93

32

BOLT

09111-08031

Unavailable

33

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

34

WASHER This part replaces 09160-08035.

09160-08130

$2.03

35

WASHER This part replaces 09160-10028.

09160-10035

$1.78

36

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

37

NUT This part replaces 08313-11088.

08313-10087

$2.28

38

CABLE,SPEEDOMET This part replaces 34910-45230.

34910-45231

Unavailable

39

CABLE ASSY,TACH This part replaces 34940-47030.

34940-47034

$23.49
