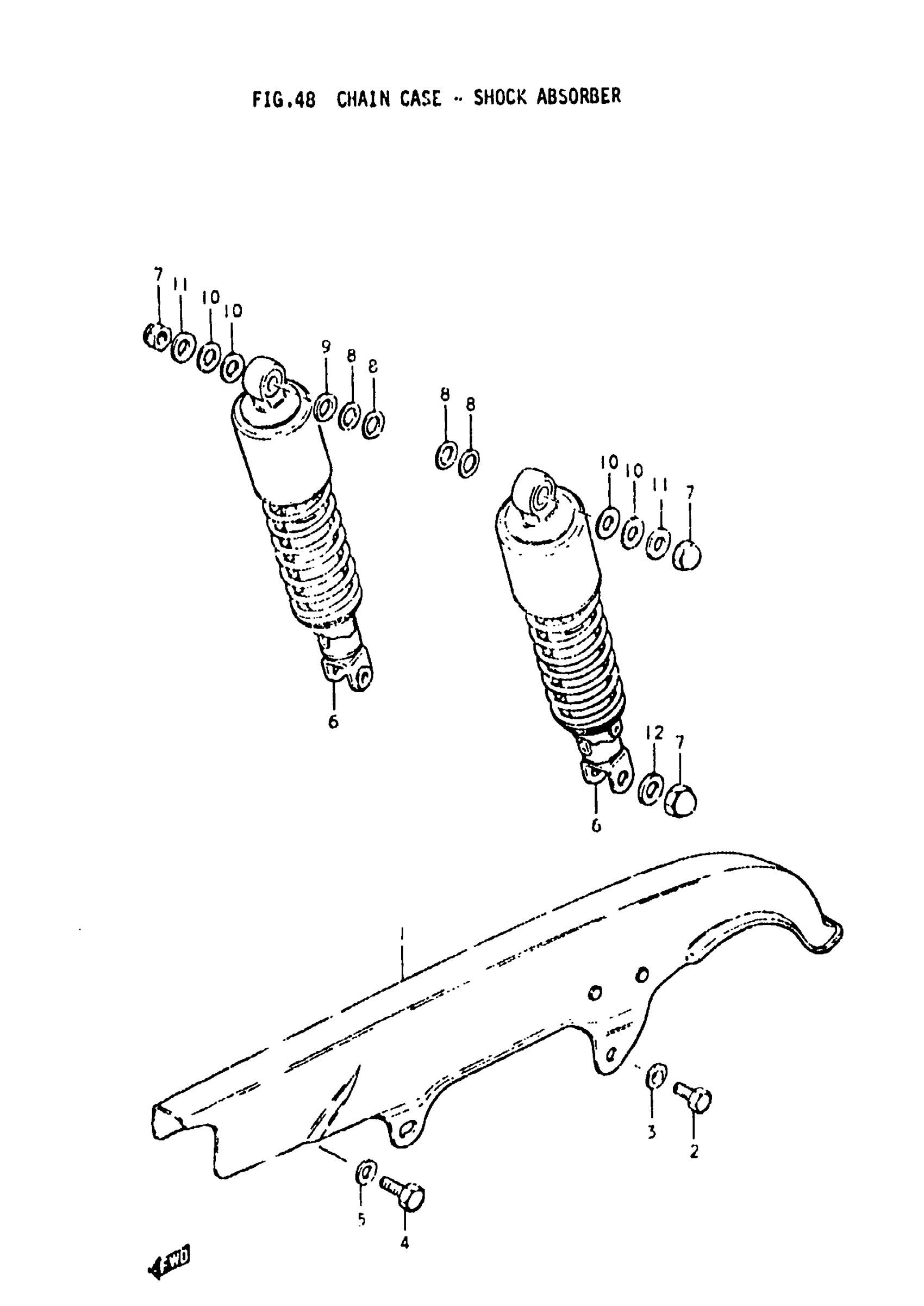

Suzuki GS550L (1979) CHAIN CASE - SHOCK ABSORBER Diagram

#

Description

Price

1

CHAIN CASE

61310-44000-019

Unavailable

2

BOLT, PLATE (6X8) This part replaces 09100-06092.

09100-06157

$2.72

3

WASHER

09169-06026

$2.20

4

BOLT This part replaces 01107-06108.

01500-06107

$2.06

5

WASHER

09160-06054

$1.62

6

NO DESCRIPTION AVAILABLE This part replaces 62100-47210.

62100-47200

Unavailable

7

NUT This part replaces 08313-11108.

08313-10107

$2.50

8

WASHER This part replaces 08322-11128.

08322-01127

$1.84

9

WASHER, FRONT AXLE | 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

$3.29

10

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

11

WASHER | 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

$2.62

12

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35
