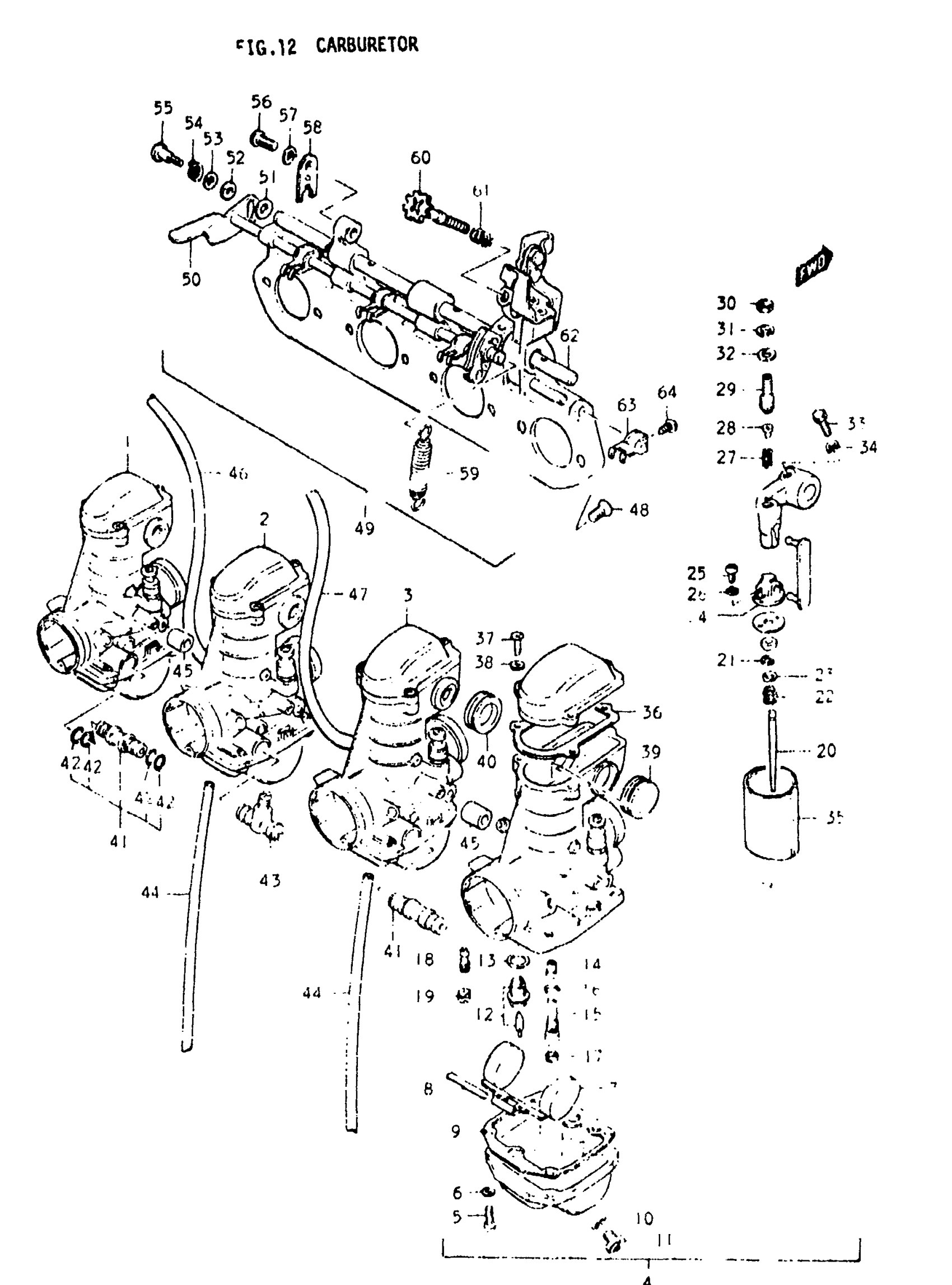

Suzuki GS550L (1979) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | EMISSION STYLE; Includes Item(s) 1 - 16

13200-47110

Unavailable

1

CARBURETOR ASSY, NO.1 | LH

13201-47110

Unavailable

2

CARBURETOR ASSY, NO. 2 | CENTER LH

13202-47110

Unavailable

3

CARBORETOR ASSY, NO.3 | CENTER RH

13203-47110

Unavailable

4

CARBURETOR ASSY, NO.4 | RH

13204-47110

Unavailable

5

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

FLOAT

13252-43010

Unavailable

8

.PIN, FLOAT

13254-01010

$3.62

9

GASKET This part replaces 13251-47010.

13251-43010

Unavailable

10

.O RING This part replaces 13246-43010.

13246-43011

$4.34

11

SCREW

13247-45010

Unavailable

12

VALVE, NEEDLE This part replaces 13370-45010.

13370-18111

$52.32

13

GASKET

13392-58600

$1.82

14

JET, NEEDLE | AO-4

09494-00200

Unavailable

15

PIPE, BREADER

13385-47030

Unavailable

16

.O RING This part replaces 13246-43010.

13246-43011

$4.34

17

JET, MAIN | A80; Includes Item(s) 18 - 64

09491-80008

Unavailable

18

JET, PILOT NO. 1 | A15

09492-15007

$11.38

19

JET, PILOT NO. 2 | #50

09493-50003

Unavailable

20

NEEDLE, JET | 5DL3-3

13383-47030

Unavailable

21

CLIP,NEEDLE

13394-10010

$5.45

22

SPRING

13388-47010

$6.91

23

WASHER

13382-47010

$3.56

24

BRACKET

13398-47120

Unavailable

25

SCREW This part replaces 02111-03148.

02112-0316B

$2.35

26

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

27

SPRING

13543-45010

Unavailable

28

PIN

13544-43010

Unavailable

29

ADJUSTER

13548-45010

Unavailable

30

NUT This part replaces 08310-11058.

08310-00057

$1.84

31

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

32

WASHER This part replaces 08322-21058.

08322-01057

$2.13

33

BOLT This part replaces 01112-05168.

01500-0516B

$2.15

34

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

35

VALVE, THROTTLE | CA:1.5

13551-47010

Unavailable

36

GASKET

13266-43010

$8.20

37

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

38

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

39

CAP

13678-43010

Unavailable

40

SEA

13556-45010

Unavailable

41

NIPPLE

13685-47030

Unavailable

42

NO DESCRIPTION AVAILABLE This part replaces 13679-43010.

13374-73000

Unavailable

43

NIPPLE

13685-47040

Unavailable

44

HOSE (3.5X6.5X6OO) | L:500 This part replaces 13683-47020.

13683-45070

$11.80

45

HOSE,5.8X12.2X6 | 6x12x19 This part replaces 13683-47010.

09356-58127-600

Unavailable

46

HOSE(4.5X8.5X60 | 4.5x8x325 This part replaces 13683-47040.

09355-45001-600

$9.48

47

HOSE(4.5X8.5X60 | 4.5x8x2 This part replaces 13683-45050.

09355-45001-600

$9.48

48

SCREW This part replaces 02122-06128.

02122-06127

$1.84

49

CONTROL ASSY

13210-47020

Unavailable

50

SHAFT STARTER

13410-47010

Unavailable

51

WASHER

13615-45010

$3.25

52

WASHER

13432-33110

$4.43

53

WASHER

13615-45010

$3.25

54

SPRING

13426-43010

Unavailable

55

SCREW

13433-33110

Unavailable

56

SCREW This part replaces 02111-05158.

02112-05167

$1.97

57

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

58

PLATE

13557-33110

Unavailable

59

SPRING,THROTTLE RETURN

13573-47010

Unavailable

60

ADJUSTER,THROTTLE STOP

13267-47030

Unavailable

61

SPRING

13268-33110

Unavailable

62

SHAFT,THROTTLE

13550-47010

Unavailable

63

LEVER,STARTER

13422-45030

Unavailable

64

SCREW

13605-31210

$7.37
