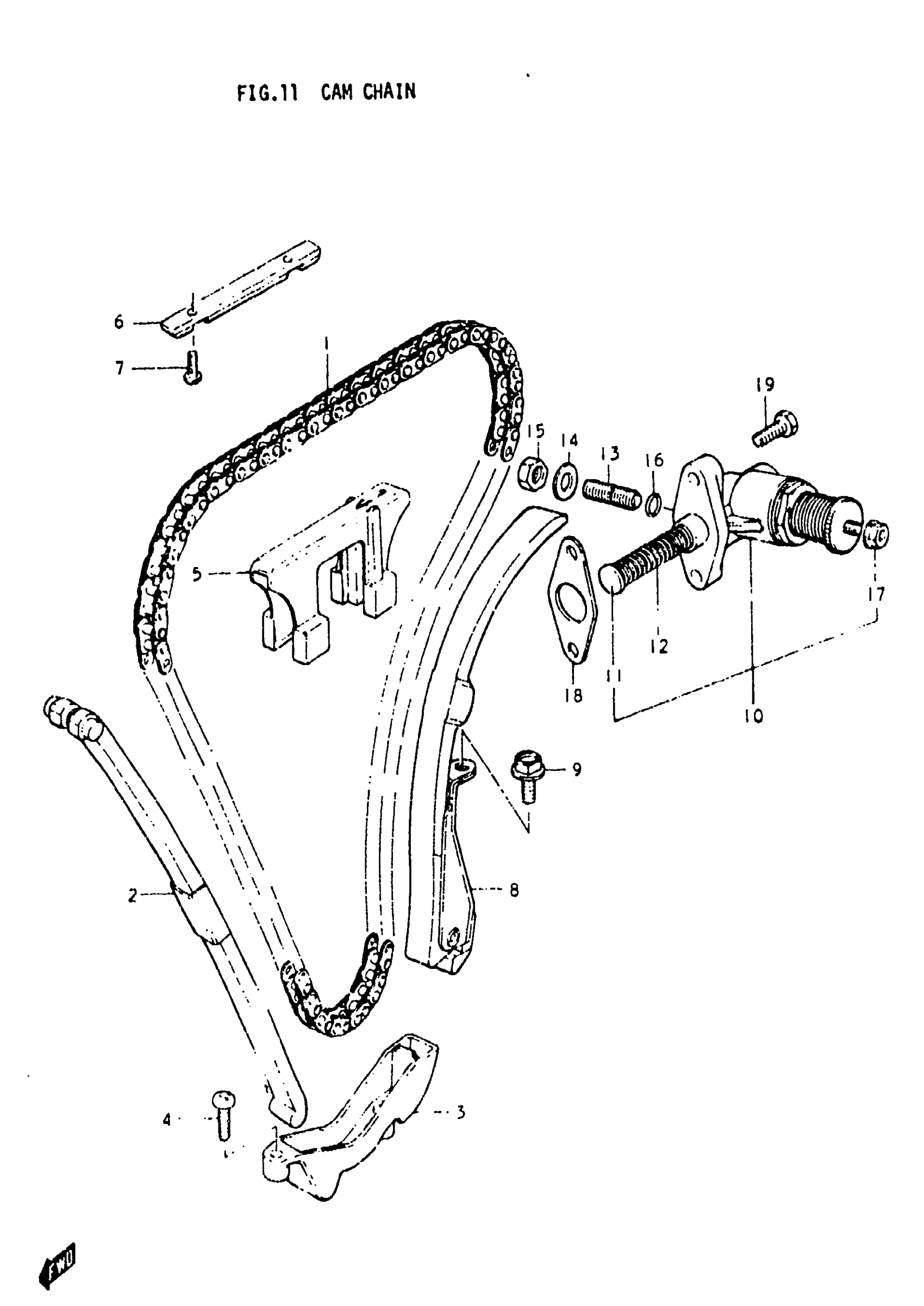

Suzuki GS550L (1979) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | 116l This part replaces 12760-47040.

12760-17D01

Unavailable

2

GUIDE, CAM CHAIN NO.1 This part replaces 12771-47040.

12771-47041

Unavailable

3

HOLDER, CAM CHAIN GULDE NO.1

12776-47000

Unavailable

4

SCREW This part replaces 02112-06208.

02112-06207

$1.78

5

GUIDE, CAM CHAIN NO.2

12781-47042

Unavailable

6

GUIDE, CAM CHAIN NO.3

12782-47040

Unavailable

7

SCREW This part replaces 02112-05128.

02112-05127

$1.97

8

TENSTONER, CAM CHAIN

12810-47040

Unavailable

9

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

10

ADJUSTER ASSY, TENSLONER | Includes Item(s) 11 - 17

12850-47091

Unavailable

11

PUSH ROD

12833-47001

Unavailable

12

SPRING

09440-12017

$2.45

13

SCREW

12838-45001

$8.42

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

NUT This part replaces 08310-12088.

08310-00087

$2.13

16

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.49

17

NUT This part replaces 09159-06017.

08319-31067

$2.03

18

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$4.22

19

BOLT, STARTING MOTOR This part replaces 09128-06012.

09103-06212

$2.47
