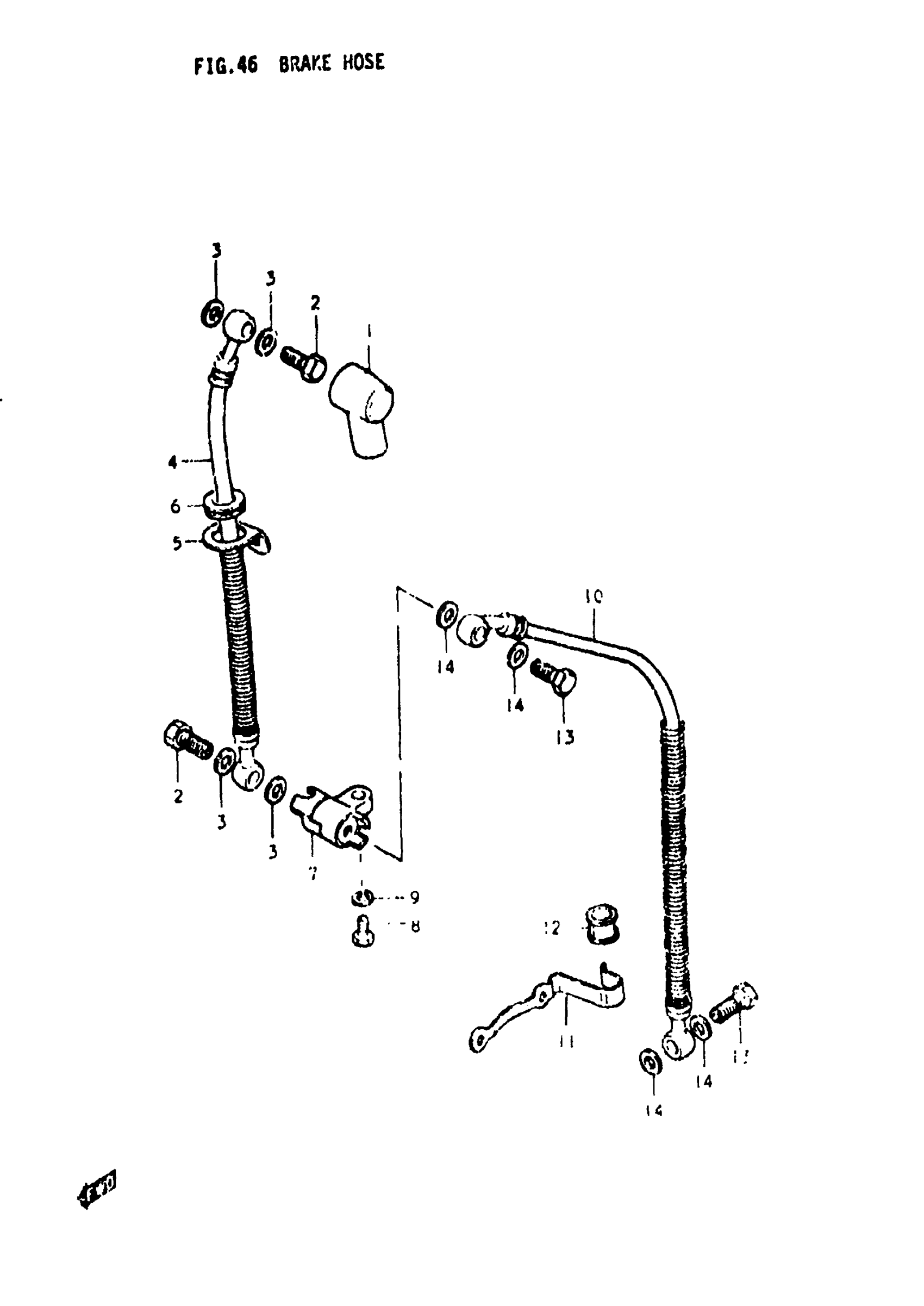

Suzuki GS550L (1979) BRAKE HOSE Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER This part replaces 59711-18400.

59711-49001

$7.51

2

UNION BOLT This part replaces 09360-10005.

09360-10018

$6.80

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO.1 This part replaces 59480-47051.

59480-47052

Unavailable

5

GUIDE This part replaces 59243-45000.

59243-45010

Unavailable

6

GROMMET This part replaces 09308-14007.

09308-14009

Unavailable

7

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

Unavailable

8

BOLT This part replaces 01107-06208.

01500-06207

$2.28

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

BOLT, BRAKE NO.2

59240-47051

Unavailable

11

CLAMP This part replaces 59268-49000.

59268-49001

Unavailable

12

BUSH

59244-49000

Unavailable

13

UNION This part replaces 09360-10003.

09360-10017

$3.42

14

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
