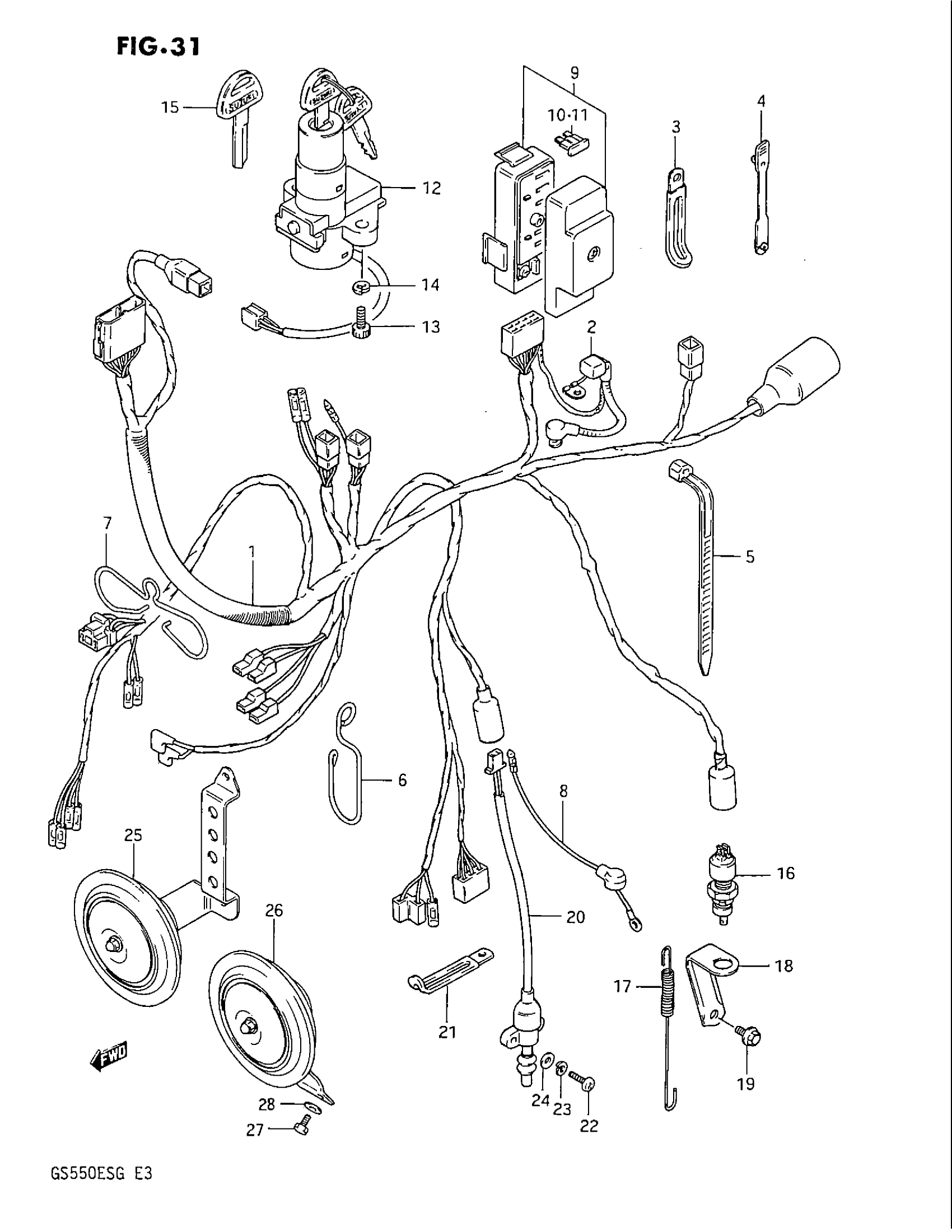

Suzuki GS550EF (1986) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GS550ES3/ESE/ESF/ESG This part replaces 36610-43460.

36610-43461

Unavailable

1

WIRING HARNESS | GS550EF/EG; Includes Item(s) 2

36610-43410

Unavailable

2

CAP, BATTERY (+) TERMINAL

33624-43500

$5.50

3

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

3

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

4

CLAMP

09407-05403

$2.38

5

CLAMP (L:95)

09407-11401

$2.63

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

5

CLAMP (L:235)

09407-25401

$4.66

6

GUIDE, WIRING HARNESS | GS550ES3/ESE/ESF/ESG

36618-49302

Unavailable

7

GUIDE, WIRING HARNESS | GS550EF/EG

36618-43400

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 36851-43410.

36851-13A00

Unavailable

9

FUSE BOX ASSY | Includes Item(s) 10 - 11

36740-43401

Unavailable

10

FUSE (10A)

09481-10101

$2.07

11

FUSE (15A)

09481-15101

$2.53

12

SWITCH ASSY, IGNITION | GS550ES3/ESE/ESF/ESG

37100-00A52

Unavailable

12

SWITCH ASSY, IGNITION | GS550EF/EG; Includes Item(s) 13 - 14

37100-00A01

Unavailable

13

BOLT This part replaces 37152-47011.

07130-0616B

$2.39

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

KEY, BLANK | OPT

37146-47010

$18.39

16

SWITCH ASSY, STOP LAMP This part replaces 37740-07900.

37740-24A00

$18.20

17

SPRING

09443-06005

$3.37

18

BRACKET, BRAKE LAMP SWITCH

43251-43400

Unavailable

19

BOLT This part replaces 01517-06108.

01550-06107

$2.80

20

SWITCH, SIDE STAND WARNING

37840-31302

Unavailable

21

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

22

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

23

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

24

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

25

HORN ASSY | GS550ES3/ESE/ESF/ESG

38500-43450

Unavailable

26

HORN ASSY | GS550EF/EG

38500-43400

Unavailable

27

BOLT | GS550EF/EG This part replaces 01107-06126.

01500-0612A

$1.78

28

LOCK WASHER | GS550EF/EG This part replaces 08321-21066.

08321-0106A

$1.84
