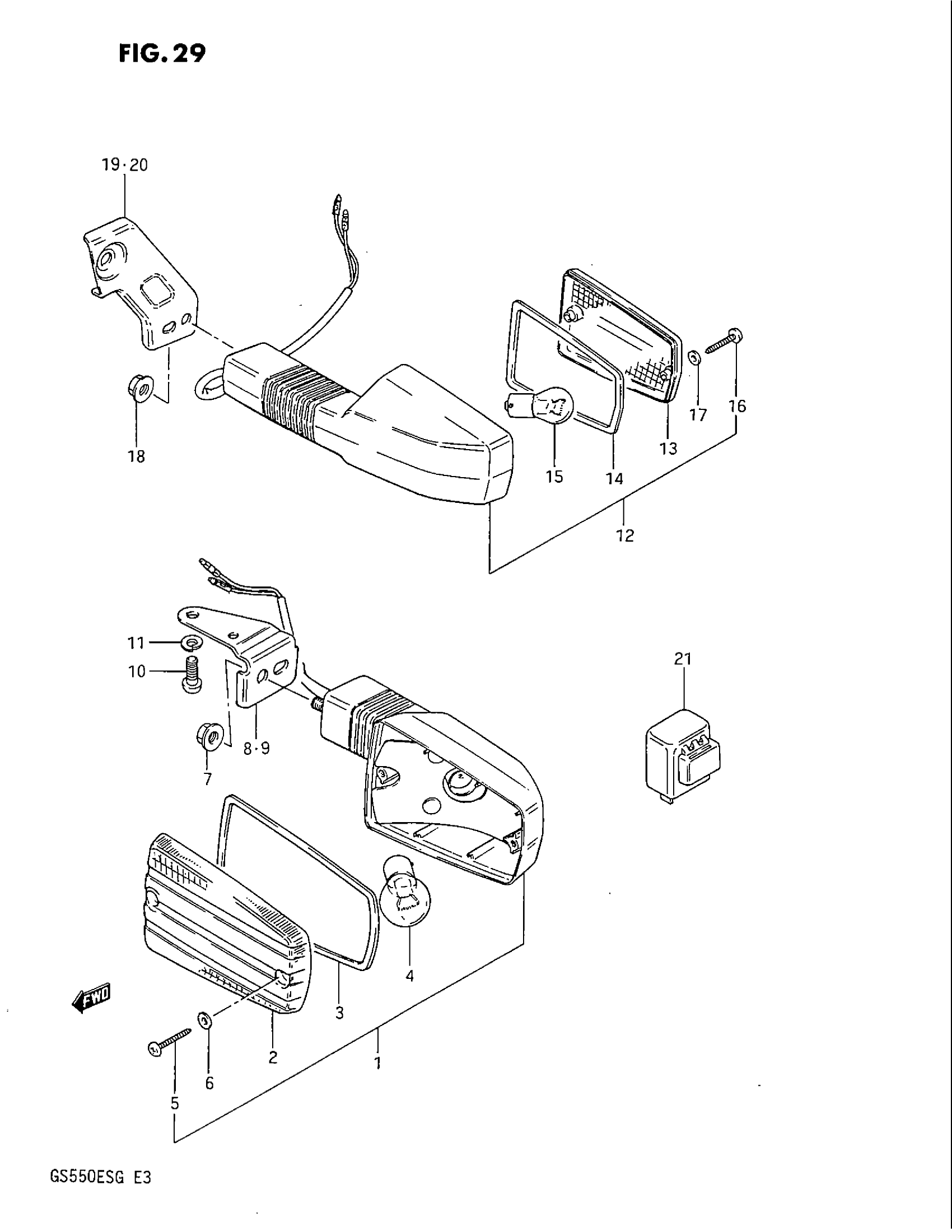

Suzuki GS550EF (1986) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | GS550ES3/ESE/ESF/ESG

35601-49511

Unavailable

1

LAMP ASSY, FRONT TURN SIGNAL | GS550EF/EG; Includes Item(s) 2 - 6

35601-31330

Unavailable

2

LENS

35612-49510

$12.59

3

GASKET

35613-43410

Unavailable

4

BULB (12V,23W/8W)

09471-12035

$4.49

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

NUT This part replaces 08316-26085.

08316-2008A

$2.70

8

BRACKET, FRONT RH | GS550ES3/ESE/ESF/ESG

35671-43400

Unavailable

9

BRACKET, FRONT LH | GS550ES3/ESE/ESF/ESG

35681-43400

Unavailable

10

SCREW This part replaces 02112-06166.

02112-0616A

$1.49

11

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

12

LAMP ASSY, REAR TURN SIGNAL | Includes Item(s) 13 - 17 This part replaces 35601-43431.

35603-31331

Unavailable

13

LENS,FR TURNS,G This part replaces 35612-43410.

35612-00A80

Unavailable

14

GASKET

35613-43410

Unavailable

15

BULB (12V,23W)

09471-12006

$3.98

16

SCREW This part replaces 03211-04208.

03211-04207

$1.49

17

GASKET

35627-43010

$2.28

18

NUT This part replaces 08316-26086.

08316-20087

$2.77

19

BRACKET, REAR RH

35621-43400

Unavailable

20

BRACKET, REAR LH

35641-43400

Unavailable

21

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$80.15
