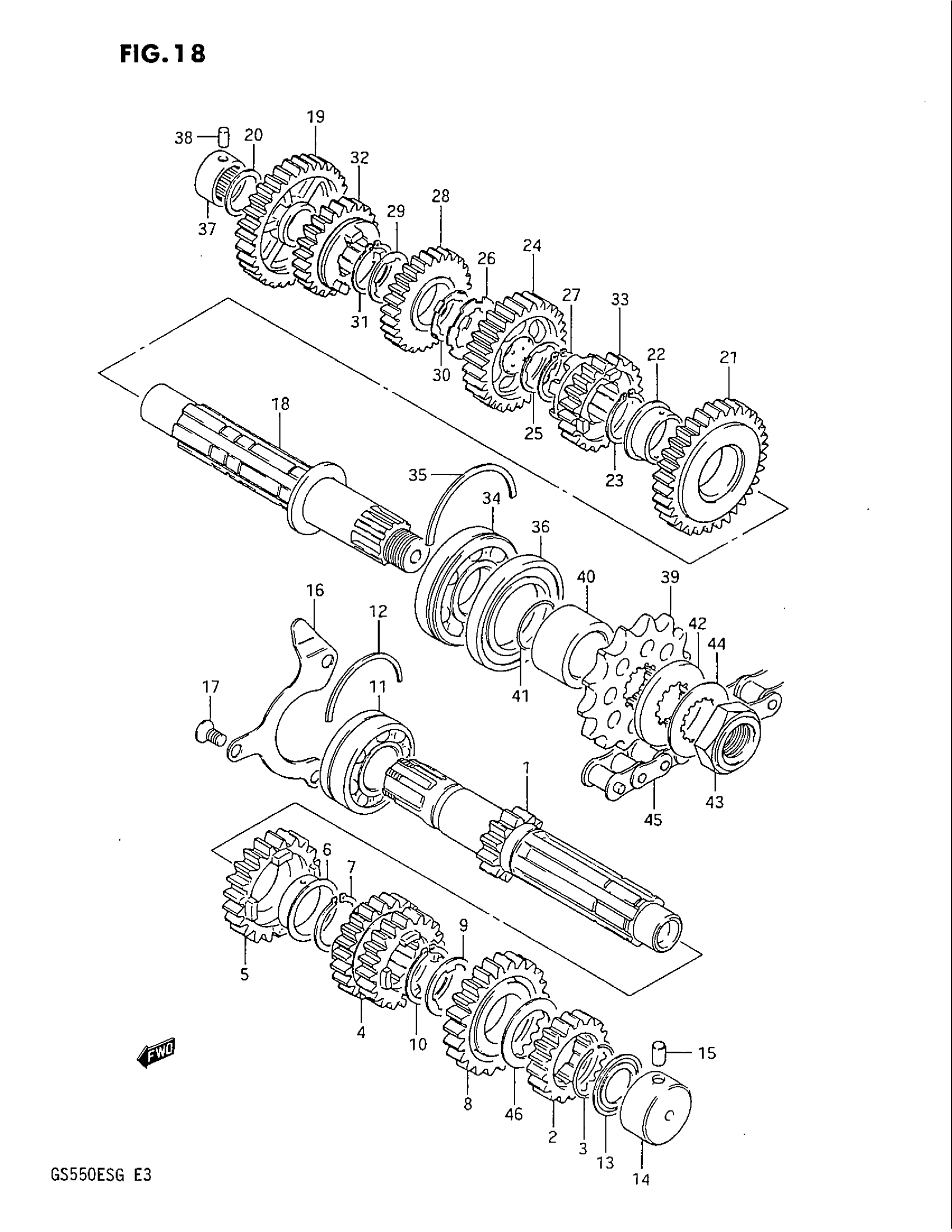

Suzuki GS550EF (1986) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24121-43400

Unavailable

2

GEAR, 2ND DRIVE (NT:18)

24221-43400

Unavailable

3

CIRCLIP

09380-25006

Unavailable

4

GEAR, 3/4 DRIVE (NT:21/23)

24231-43401

Unavailable

5

GEAR, 5TH DRIVE (NT:22)

24251-43400

Unavailable

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$23.78

7

SNAP RING

09380-25003

$3.04

8

GEAR, 6TH DRIVE (NT:23)

24261-43401

Unavailable

9

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

10

SNAP RING

09380-25003

$3.04

11

BEARING, RH

09267-25008

Unavailable

12

C RING

09390-58001

$3.42

13

OIL SEAL

09285-20006

$6.51

14

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

$55.20

15

PIN

04221-07209

$2.30

16

HOLDER, BEARING

24741-43400

Unavailable

17

SCREW This part replaces 02122-06168.

02122-06167

$1.49

18

DRIVESHAFT

24131-43401

Unavailable

19

GEAR, 1ST DRIVEN (NT:32)

24310-43400

Unavailable

20

WASHER

08211-20341

$2.80

21

GEAR, 2ND DRIVEN (NT:32)

24321-43400

Unavailable

22

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$23.78

23

SNAP RING

09380-25003

$3.04

24

GEAR, 3RD DRIVEN (NT:29)

24330-43401

Unavailable

25

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

26

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

27

SNAP RING

09380-25003

$3.04

28

GEAR, 4TH DRIVEN (NT:27)

24340-43400

Unavailable

29

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

30

LOCK WASHER

09169-25001

$2.70

31

SNAP RING

09380-25003

$3.04

32

GEAR, 5TH DRIVEN (NT:23)

24351-43401

Unavailable

33

GEAR, 6TH DRIVEN (NT:22)

24361-43402

Unavailable

34

BEARING, LH This part replaces 09262-25065.

09262-25105

$68.10

35

C RING This part replaces 09390-62006.

09390-62012

$7.31

36

OIL SEAL

09283-33002

Unavailable

37

BEARING, RH

09263-20040

$55.20

38

PIN

04221-07209

$2.30

39

SPROCKET, ENGINE (NT:14) This part replaces 27511-43400.

27510-21E00

Unavailable

40

SPACER (25X33X20.1)

09180-25066

Unavailable

41

O RING

09280-25001

$1.56

42

SPACER

27519-45201

Unavailable

43

NUT This part replaces 09159-20001.

09159-20004

$15.67

44

WASHER (25.3X41.6X1) This part replaces 09167-25011.

09167-25019

$2.19

45

CHAIN,DRIVE 112 | DID This part replaces 27600-43410.

27600-40F20-112

$284.03

45

CHAIN,DRIVE 112 | RK This part replaces 27600-31320.

27600-40F20-112

$284.03

46

SHIM (T:0.5)

09181-25036

Unavailable

46

SHIM (T:0.6)

09181-25037

Unavailable

46

SHIM (T:0.7)

09181-25038

Unavailable

46

SHIM (T:0.8)

09181-25039

Unavailable
