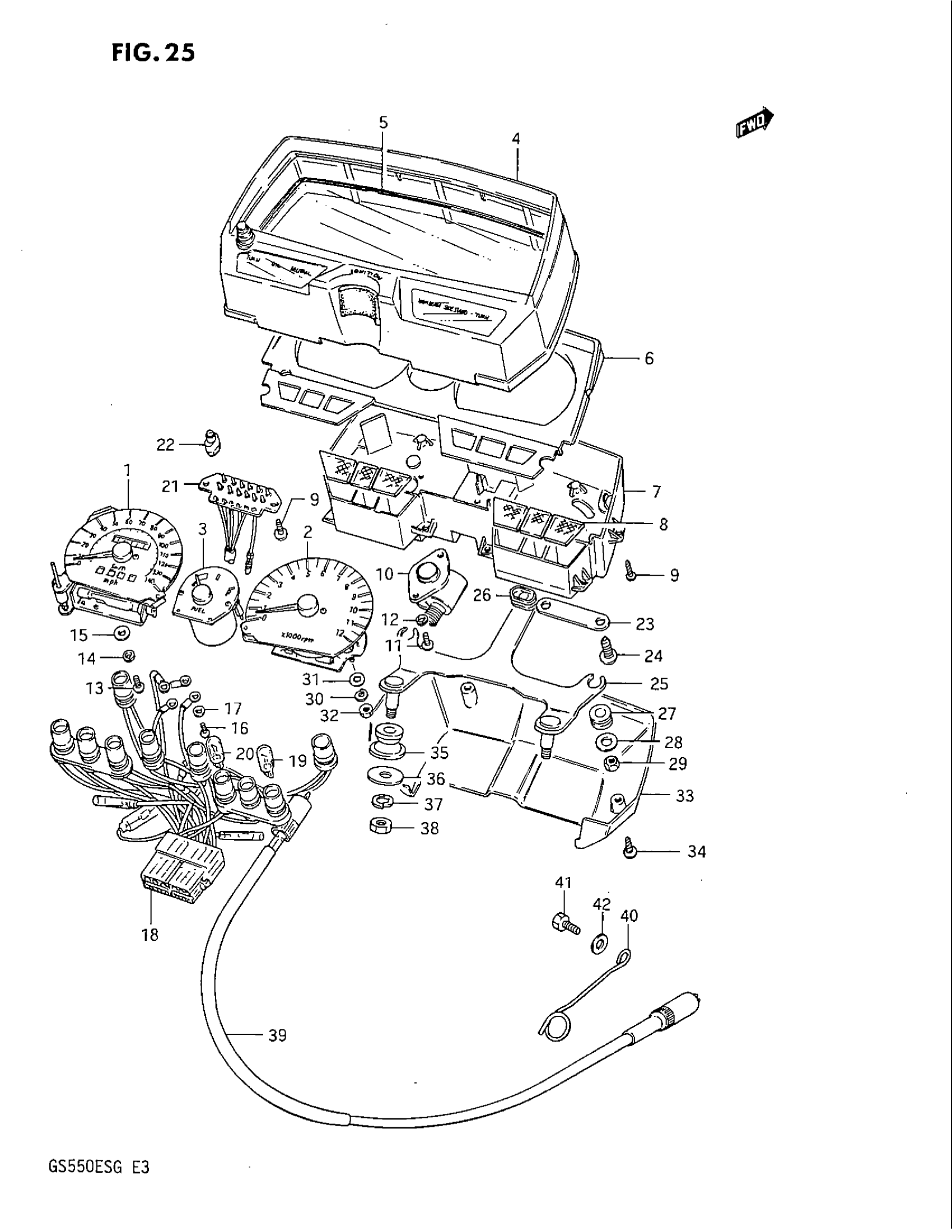

Suzuki GS550EF (1986) SPEEDOMETER - TACHOMETER (GS550ES3/ESE/ESF/ESG) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 34120-43461.

34120-43450

Unavailable

2

NO DESCRIPTION AVAILABLE | GS550ES3/ESE This part replaces 34220-43461.

34220-43402

Unavailable

2

NO DESCRIPTION AVAILABLE | GS550ESF/ESG This part replaces 34220-43462.

34220-43402

Unavailable

3

FUELMETER

34320-43410

Unavailable

4

HOOD, METER

34150-43410

Unavailable

5

GLASS

34112-43410

Unavailable

6

PLATE, WINDOW

34153-43410

Unavailable

7

CASE, METER

34111-43400

Unavailable

8

LENS SET, PILOT

36300-43810

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 36456-34510.

09132-03501

Unavailable

10

GEAR BOX

34131-43400

Unavailable

11

SCREW This part replaces 02112-04108.

02112-04107

$1.55

12

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

13

SCREW This part replaces 02112-03108.

02112-03107

$1.49

14

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

15

WASHER This part replaces 08322-21038.

08322-01037

$1.93

16

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

17

WASHER This part replaces 08322-21038.

08322-01037

$1.93

18

SOCKER

34170-43400

Unavailable

19

BULB (12V,3.4W)

09471-12082

Unavailable

20

BULB (12V,1.7W)

09471-12077

$3.55

21

SOCKET, GEAR INDICATOR

36453-43410

Unavailable

22

BULB

09471-12071

$7.20

23

PLATE

34182-43400

Unavailable

24

SCREW This part replaces 03212-04109.

03211-0410B

$1.93

25

BRACKET, METER

34950-43410

Unavailable

26

CUSHION, NO.1

34995-45720

Unavailable

27

.CUSHION

34996-43410

$4.35

28

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

29

NUT This part replaces 08310-22058.

08310-00057

$1.84

30

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

31

WASHER

34181-43400

Unavailable

32

NUT This part replaces 08310-11048.

08310-00047

$2.23

33

COVER, LOWER

34193-43400

Unavailable

34

SCREW This part replaces 03112-04125.

03111-0412A

$1.93

35

CUSHION

34956-31001

$4.37

36

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

37

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

38

NUT This part replaces 08310-11085.

08310-0008A

$1.84

39

CABLE, SPEEDOMETER

34910-38430

Unavailable

40

GUIDE, METER CABLE

34938-45100

$6.57

41

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

42

WASHER This part replaces 08322-21068.

08322-01067

$2.13
