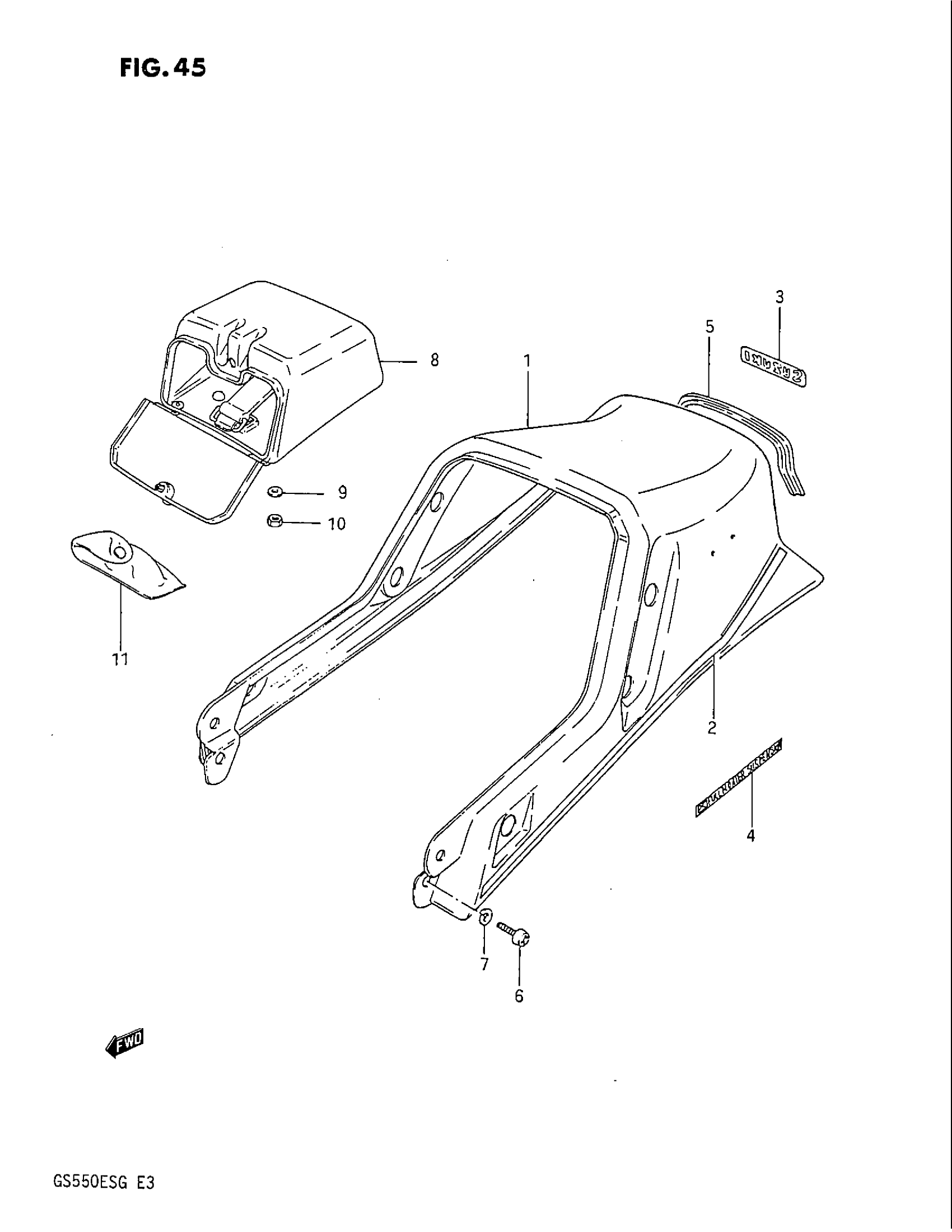

Suzuki GS550EF (1986) SEAT TAIL COVER (GS550ESG/EG) Diagram

#

Description

Price

1

COVER, SEAT TAIL

45510-43600-7JH

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 45510-43600-7JK.

45511-43400

Unavailable

2

TAPE SET, TAIL COVER (BLACK) | FOR 7JH

68760-43400-019

Unavailable

2

TAPE SET, TAIL COVER (BLUE) | FOR 7JK

68760-43400-064

Unavailable

3

EMBLEM,"SUZUKI" This part replaces 68166-31300-064.

68166-31310-064

Unavailable

4

EMBLE, FULL FLOATER

68235-04700-91R

Unavailable

5

BRIND, SEAT TAIL COVER

45562-43401

Unavailable

6

SCREW

02112-06167

$1.49

7

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

8

BOX, SEAT TAIL

94990-43400

Unavailable

9

WASHER

09169-06010

$2.60

10

NUT

08319-31067

$2.03

11

TOOL ASSY This part replaces 09800-00270.

09800-21068

Unavailable
