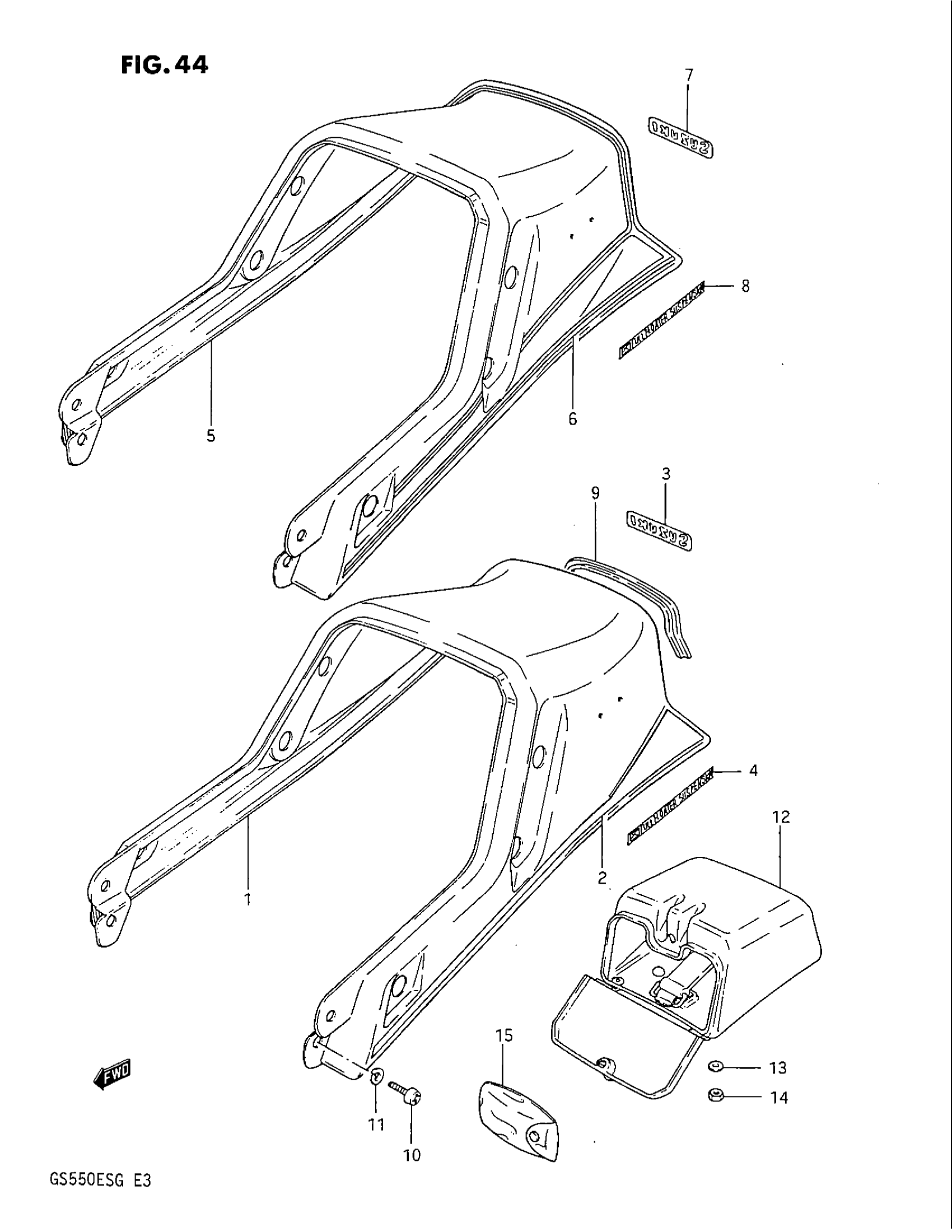

Suzuki GS550EF (1986) SEAT TAIL COVER (GS550ESF/EF) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GS550ESF; Includes Item(s) 2 - 4 This part replaces 45590-43400-7JH.

45511-43410

Unavailable

2

TAPE SET, TAIL COVER (BLACK) | GS550ESF

68160-43460-019

Unavailable

3

EMBLEM,"SUZUKI" | GS550ESF This part replaces 68166-31300-064.

68166-31310-064

Unavailable

4

EMBLE, FULL FLOATER | GS550ESF

68235-04700-91R

Unavailable

5

COVER, SEAT TAIL | GS550EF

45510-43490-7JH

Unavailable

5

COVER, SEAT TAIL | GS550EF; Includes Item(s) 6 - 8

45510-43490-7JJ

Unavailable

6

TAPE SET, TAIL COVER | GS550EF,FOR 7JH

68160-43450-7JF

Unavailable

6

TAPE SET, TAIL COVER | GS550EF,FOR 7JJ

68160-43450-7JG

Unavailable

7

EMBLEM,"SUZUKI" | GS550EF This part replaces 68166-31300-064.

68166-31310-064

Unavailable

8

EMBLEM, FULL FLOATER | GS550EF

68235-04700-87W

Unavailable

9

BRIND, SEAT TAIL COVER

45562-43401

Unavailable

10

SCREW This part replaces 02112-06168.

02112-06167

$1.49

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

BOX, SEAT TAIL

94990-43400

Unavailable

13

WASHER

09169-06010

$2.60

14

NUT This part replaces 08319-31068.

08319-31067

$2.03

15

TOOL ASSY This part replaces 09800-00270.

09800-21068

Unavailable
