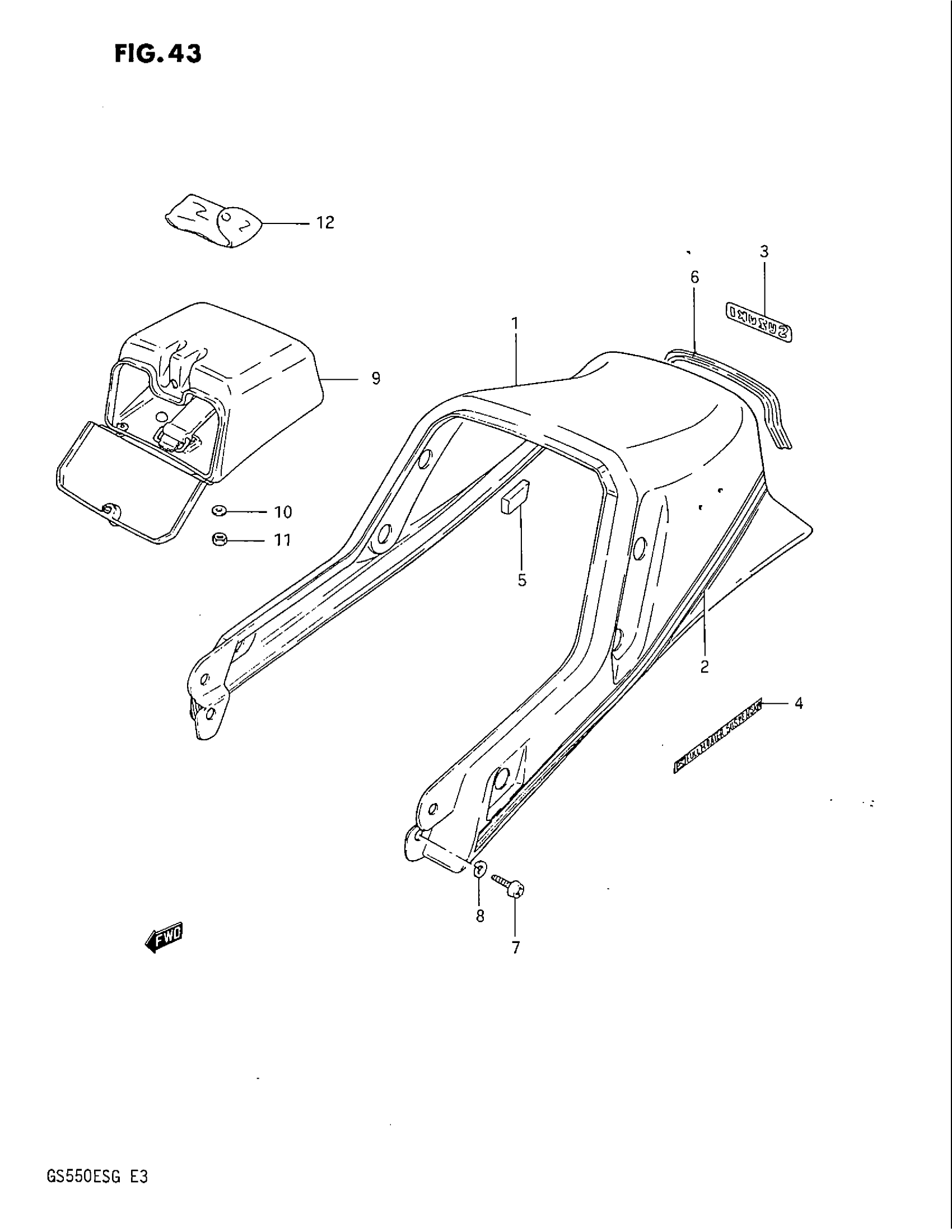

Suzuki GS550EF (1986) SEAT TAIL COVER (GS550ES3/ESE) Diagram

#

Description

Price

1

COVER, SEAT TAIL | Includes Item(s) 2 - 4

45510-43470-91J

Unavailable

2

TAPE SET, SEAT TAIL COVER

68160-43410-7FG

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 68166-31300-019.

68166-31300-33J

Unavailable

4

EMBLE, FULL FLOATER

68235-31300-87W

Unavailable

5

CUSHION

45149-43400

Unavailable

6

BRIND, SEAT TAIL COVER

45562-43401

Unavailable

7

SCREW This part replaces 02112-06168.

02112-06167

$1.49

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

BOX, SEAT TAIL

94990-43400

Unavailable

10

WASHER

09169-06010

$2.60

11

NUT This part replaces 08319-31068.

08319-31067

$2.03

12

TOOL ASSY This part replaces 09800-00270.

09800-21068

Unavailable
