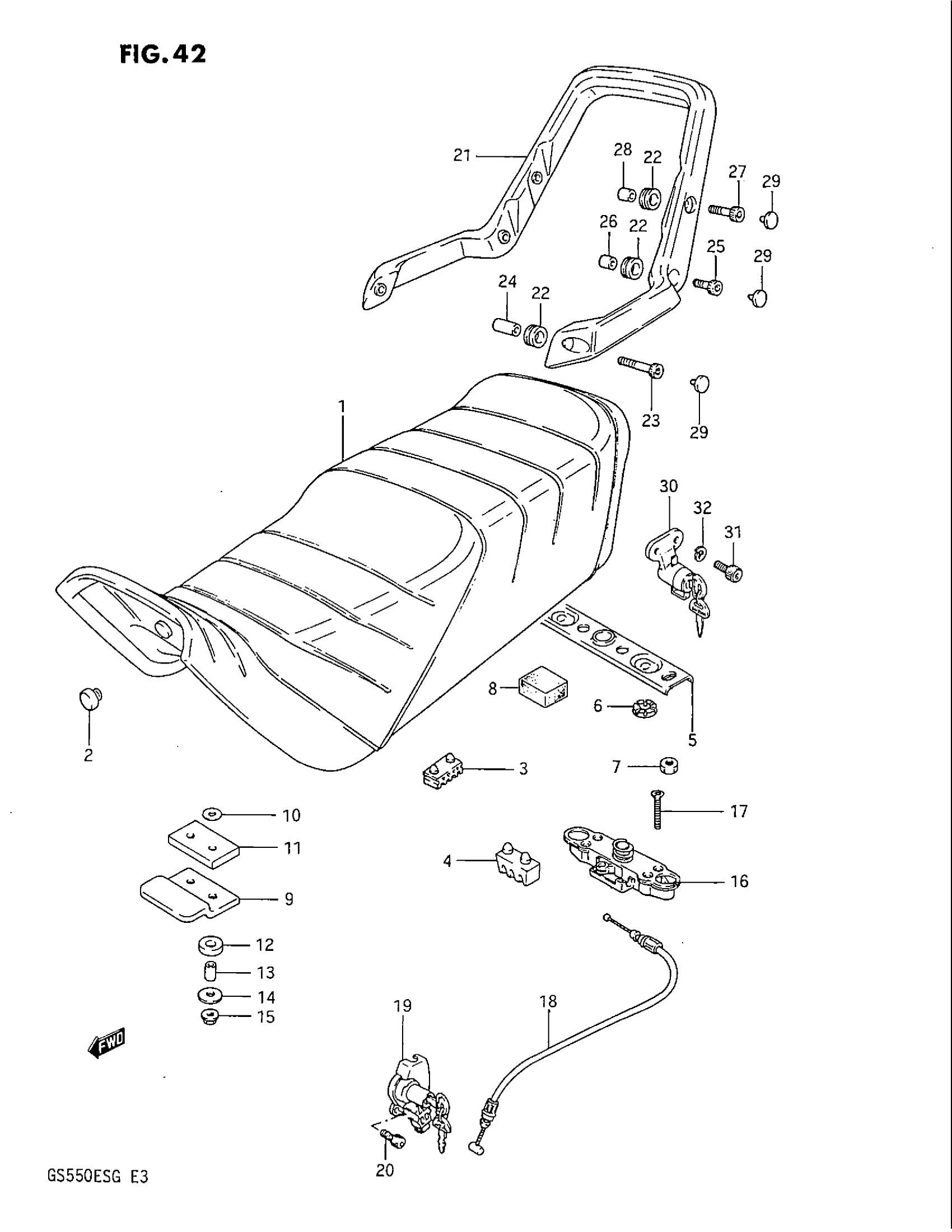

Suzuki GS550EF (1986) SEAT (MODEL F/G) Diagram

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 45100-43402-48H.

45100-43421-48H

Unavailable

SEAT ASSY (BLACK) | MODEL G; Includes Item(s) 2 - 15

45100-43421-58R

Unavailable

CUSHION, FRONT

09329-10018

Unavailable

CUSHION

45149-31300

$3.56

CUSHION

45149-45330

$3.89

STRIKER, SEAT LOCK

45210-43400

Unavailable

CUSHION, STRIKER

45213-43400

Unavailable

NUT This part replaces 08316-26066.

08316-1006B

$2.50

HOLDER, BATTERY STOP

94982-29400

$2.28

PLATE, SEAT FRONT HOOK

45119-43401

Unavailable

WASHER This part replaces 08322-21067.

08322-01067

$2.13

CUSHION, UPPER

45125-13600

Unavailable

CUSHION, LOWER

09324-26470

Unavailable

SPACER (6.1X8X12) This part replaces 09180-06035.

09180-06249

$2.10

WASHER This part replaces 09160-06006.

09160-06084

$1.78

NUT | MODEL F This part replaces 09159-06017.

08319-31067

$2.03

NUT | MODEL G This part replaces 08316-16066.

08316-1006B

$2.50

LOCK ASSY, SEAT STRIKER

45220-13601

$80.52

SCREW, SEAT SUPPORT BRK This part replaces 02112-06306.

02112-0630A

$1.78

CABLE, SEAT LOCK This part replaces 45280-43400.

45280-43510

Unavailable

LOCK SET, SEAT This part replaces 95700-43400-KEY.

95700-43820

Unavailable

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

HANDLE, PILLION RIDER

46210-43400

Unavailable

GROMMET

45522-43401

Unavailable

BOLT This part replaces 09106-08037.

07130-0855B

$4.77

SPACER

46219-43400

Unavailable

BOLT This part replaces 09106-08042.

07130-0835B

$4.60

SPACER

46219-43420

Unavailable

BOLT This part replaces 09106-08039.

07130-0840B

$3.91

SPACER

46219-43411

Unavailable

CAP This part replaces 09250-06008.

09250-06016

$1.96

LOCK ASSY, HELMET

95700-43410-KEY

Unavailable

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84
