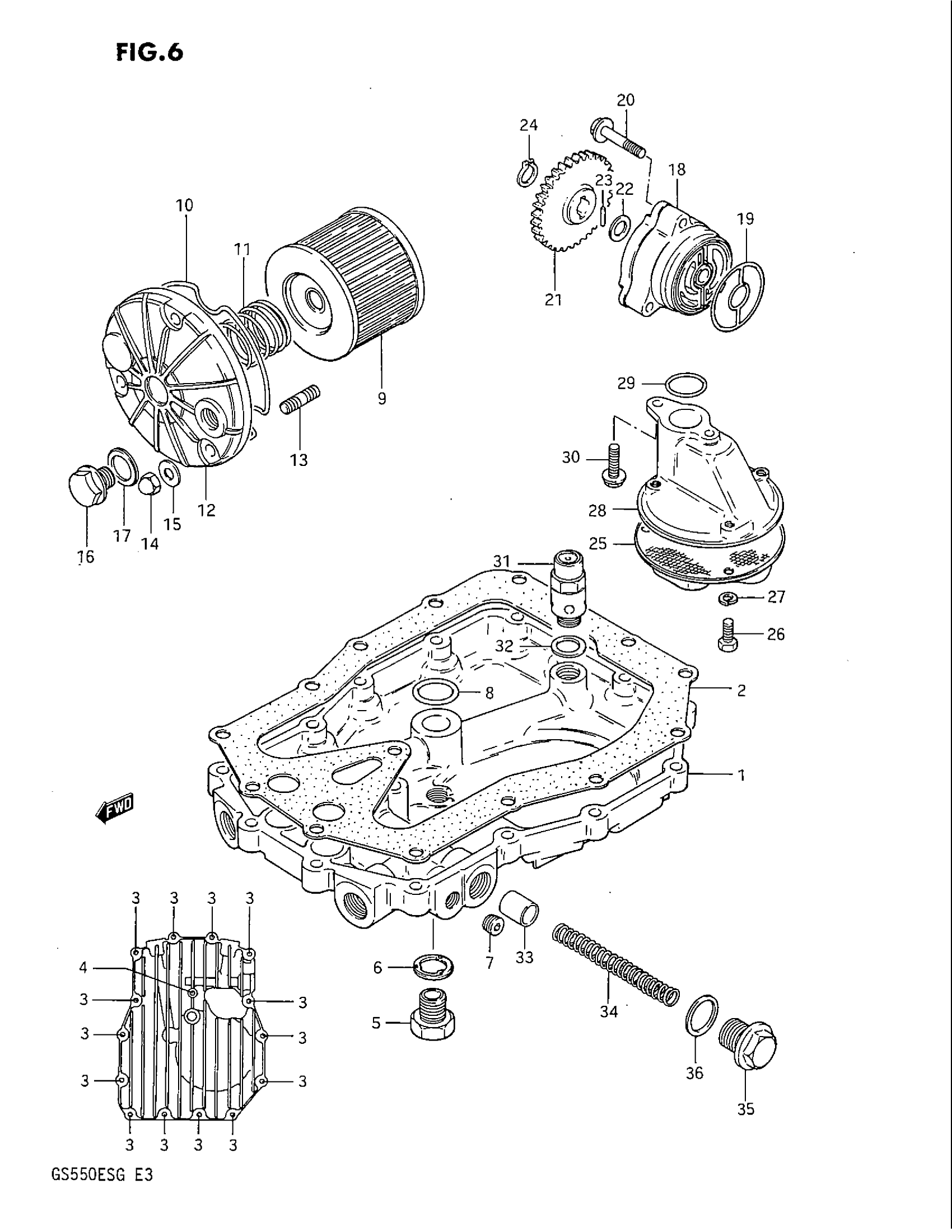

Suzuki GS550EF (1986) OIL PUMP - OIL FILTER Diagram

#

Description
Price

1

PAN, OIL

11511-43401

Unavailable

2

GASKET,OIL PAN( This part replaces 11489-43401.

11489-43401-H17

Unavailable

3

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

4

BOLT This part replaces 01517-06354.

01550-0635A

$2.32

5

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

6

GASKET

09168-14004

$1.83

7

NO DESCRIPTION AVAILABLE This part replaces 09246-05001.

09246-04001

Unavailable

8

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

9

FILTER, ENGINE OIL

16510-45040

$5.96

10

O RING

16518-45000

$5.70

11

SPRING

09440-32004

$2.92

12

NO DESCRIPTION AVAILABLE This part replaces 16512-33301.

16512-33311

Unavailable

13

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

14

NUT This part replaces 08313-11065.

08313-1006A

$1.84

15

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

16

PLUG

09247-14015

$4.45

17

GASKET

09168-14004

$1.83

18

PUMP, ENGINE OIL

16400-43400

Unavailable

19

O RING

16491-31300

$13.90

20

BOLT

09103-06045

$2.53

21

GEAR, OIL PUMP DRIVEN

16331-43400

Unavailable

22

WASHER

08221-10185

$2.15

23

PIN

09261-04009

$1.56

24

CIRCLIP

08331-31109

$1.78

25

STRAINER, OIL This part replaces 16520-09300.

16520-09301

$15.42

26

BOLT This part replaces 01107-06128.

01500-06127

$1.97

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

PROTECTOR, STRAINER

16525-09301

Unavailable

29

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

30

BOLT This part replaces 01517-06208.

01550-06207

$2.30

31

VALVE ASSY, OIL RELIEF This part replaces 16440-15500.

16440-11D00

$59.07

32

WASHER

08212-14181

Unavailable

33

PLUNGER

16442-34301

Unavailable

34

SPRING

09440-10011

Unavailable

35

PLUG

09247-16004

Unavailable

36

O RING

09280-17002

$5.11
