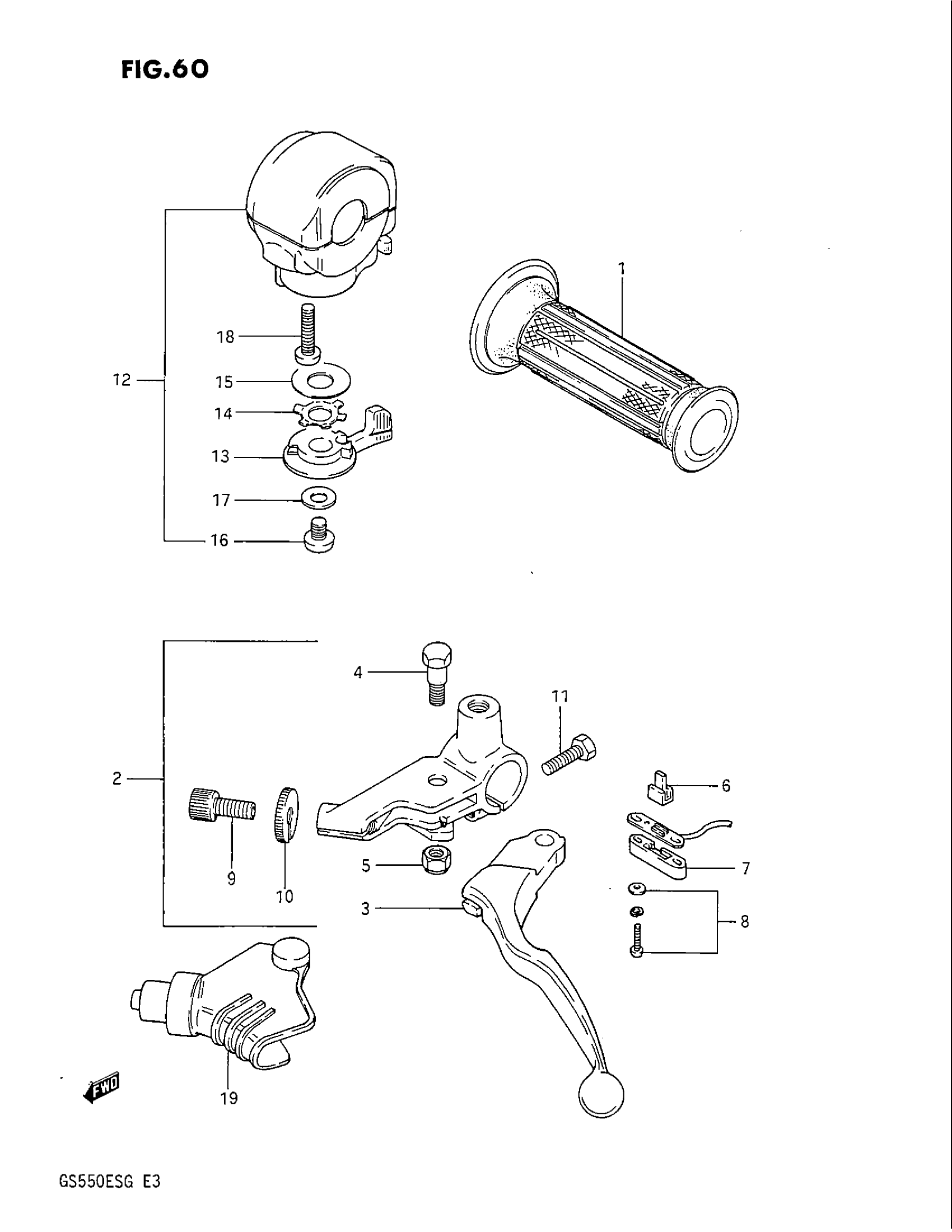

Suzuki GS550EF (1986) LEFT HANDLE SWITCH (GS550ES3/ESE/ESF/ESG) Diagram

#

Description
Price

1

GRIP, LH

57211-49500

$13.95

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 11

57500-33430

Unavailable

3

LEVER, CLUTCH

57620-33410

Unavailable

4

BOLT This part replaces 57431-33450.

57531-14A00

$7.46

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

6

CONTACT

57465-18601

$4.34

7

COVER

57481-33010

$5.84

8

SCREW

57484-49110

$1.98

9

ADJUSTER, CABLE

57441-11010

$5.62

10

NUT

57442-11010

$2.79

11

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

12

SWITCH ASSY, HANDLE LH | Includes Item(s) 13 - 18

37400-33420

Unavailable

13

LEVER, STARTER

37571-45110

Unavailable

14

WASHER

37573-45110

Unavailable

15

WASHER

37573-43440

Unavailable

16

SCREW This part replaces 02112-06085.

02112-06087

$1.49

17

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

18

.SCREW (5X25) This part replaces 02112-05254.

09125-05066

$1.65

19

COVER

57661-33400

$8.12
